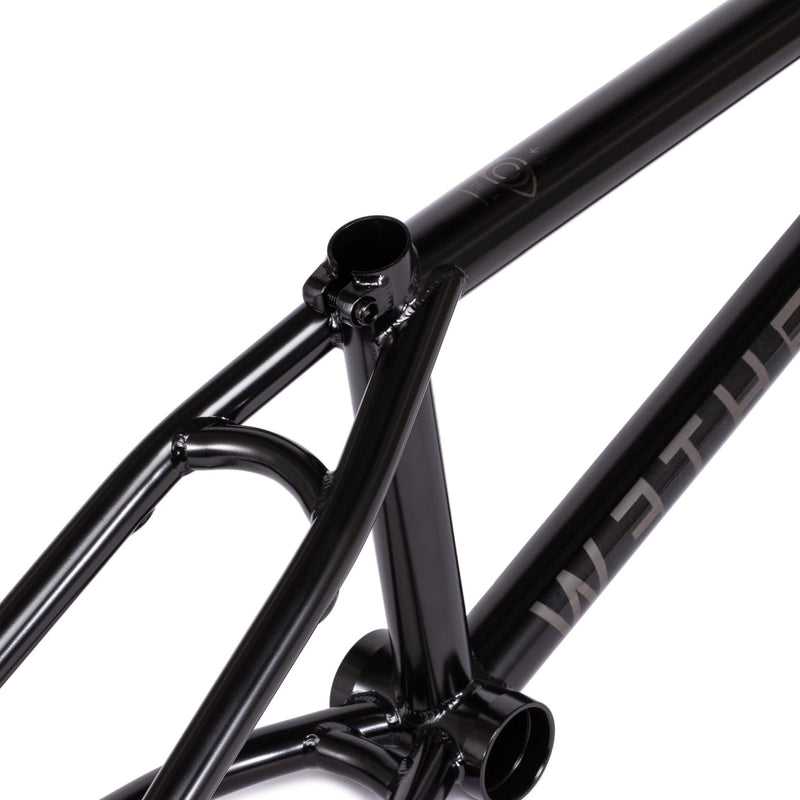

The perfect blend between flatland, street & park, the utopia hybrid frame takes DNA from many of our current frames and blends it into a super tough, responsive and incredibly lightweight do-it-all frame. Just as capable in the streets as it is in the parking lot, the Utopia Hybrid is also the chance for smaller and younger riders to ride one of the most advanced frames we’ve ever produced. Utilizing new super-lightweight hydroformed tubing and a crazy short 12.5” chainstay, the Utopia Hybrid is a frame in a league of its own.
Material: Butted Japanese seamless 4130 crmo tubing
- Translucent gold
- Neon teal
- 74mm Spanish size bottom bracket
- CNC machined and heat-treated
- 110mm CNC machined and heat-treated integ. H/set
- Laser cut and CNC machined 6mm heat-treated 4130 crmo dropouts- perfect shape for pegs
- Integrated chain tensioner
- Pivot-3 removable brake mounts (frame comes without repl. Brake hardware)
- Technical street/flatland frame
- Shorter top tube and lower seat tube for younger/ shorter riders
- Hydroformed top and down tube for superior strength and stiffness
- Frame comes with 14mm slot dropouts
- Extruded top tube with integrated threads for cable guides
- Tapered seat stays and chain stays with bullet tipped ends
- Curved seat stay bridge and chain stay bridge
- Wider rear triangle allows clearance for a 2.3" tire
- WTP top tube and down tube gusset
- 6mm seat clamp bolt
- Includes lifetime guarantee
- Top tube: 20" or 20.5"
- Chain stay length: 12.4" - 13.2" - optimized for 12.5/12.75" w/25-9
- Head tube angle: 75°
- Seat tube angle: 71.5°
- Bb height: 11.8"
- Standover height: 7.7"
Weight: 4.45lbs / 2.02kg (20”)
