Toptube Length
Color
Regular price €459,99 Sale price €409,99
/
  • Secure payments
  • Low stock - 5 items left
  • Backordered, shipping soon
Tax included. Shipping calculated at checkout.

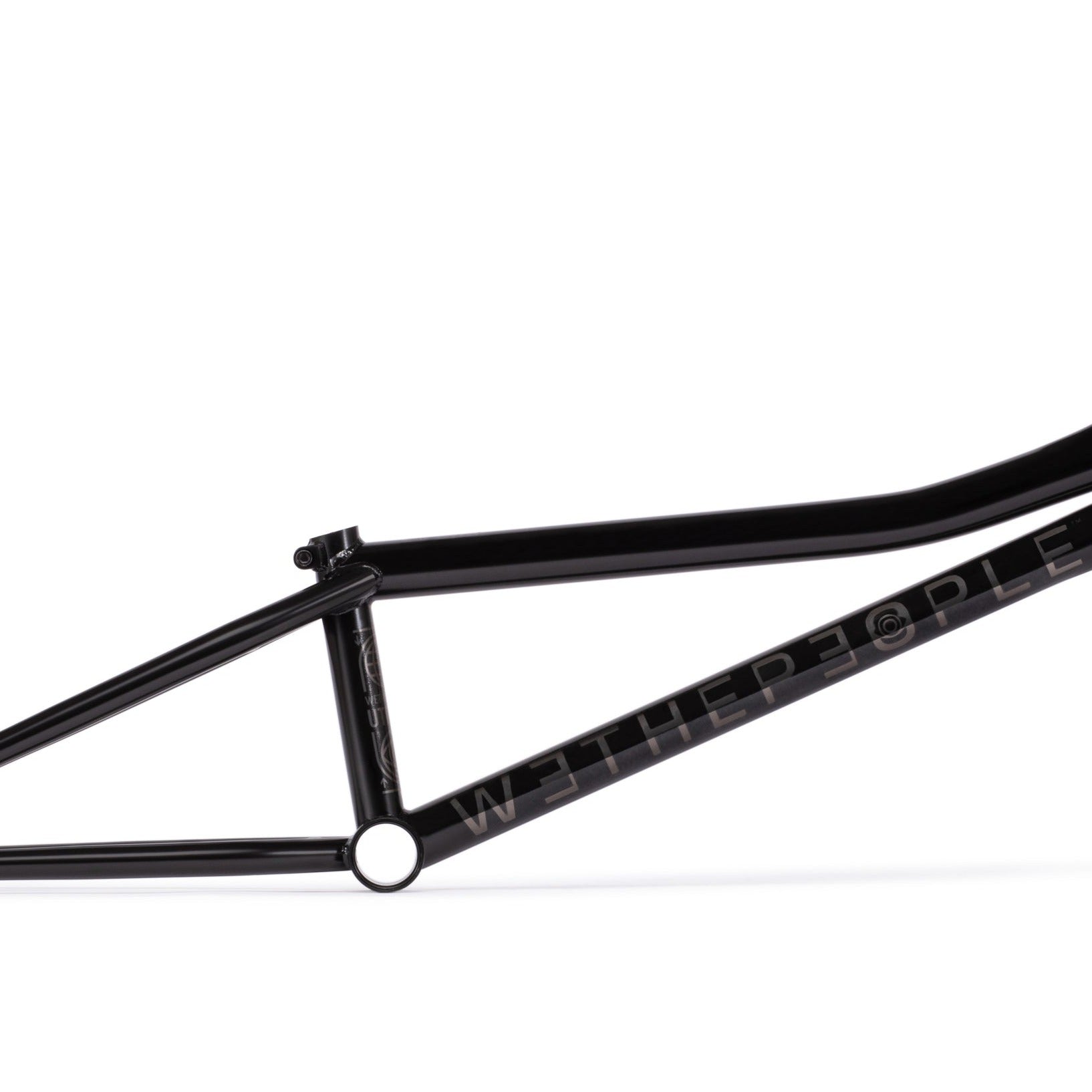

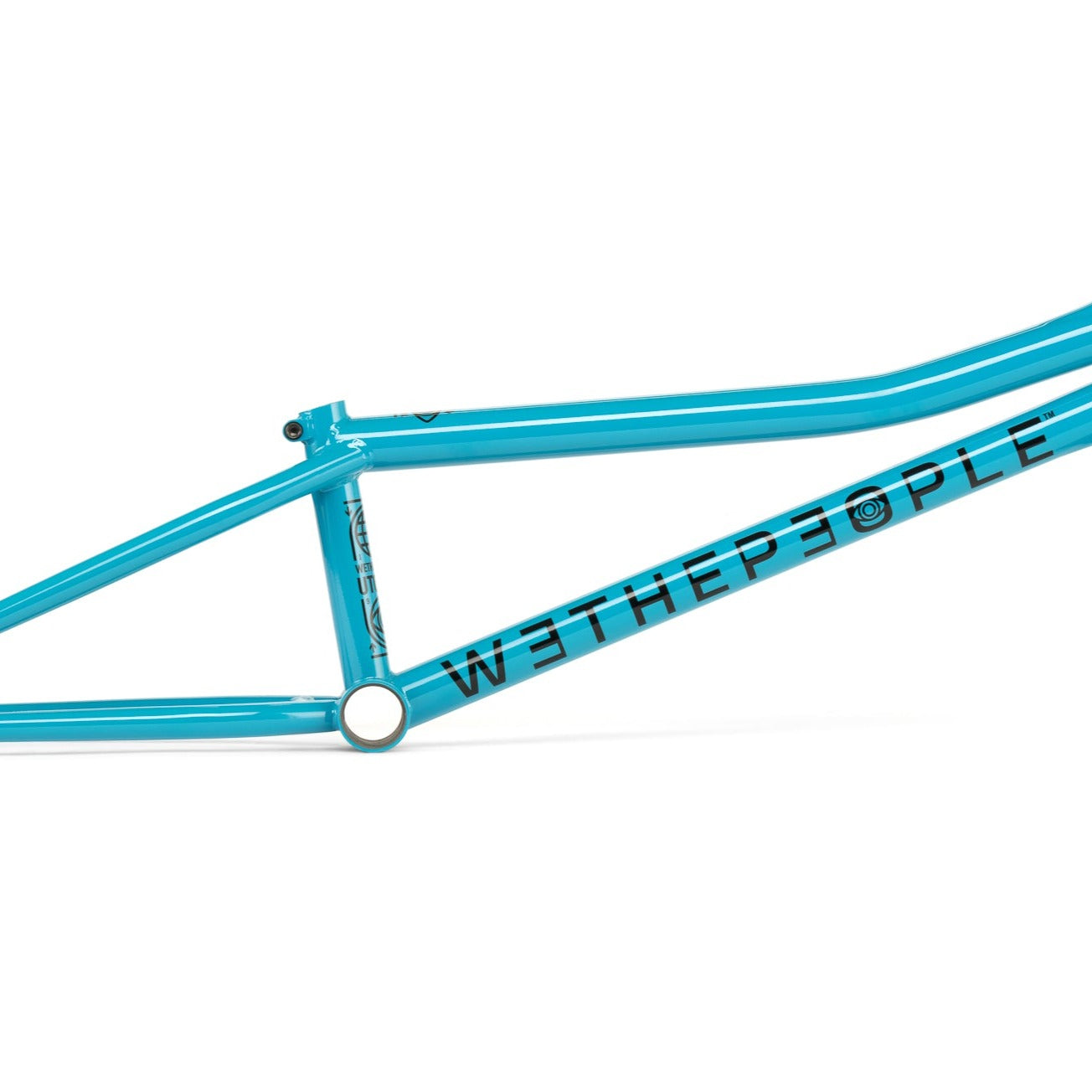

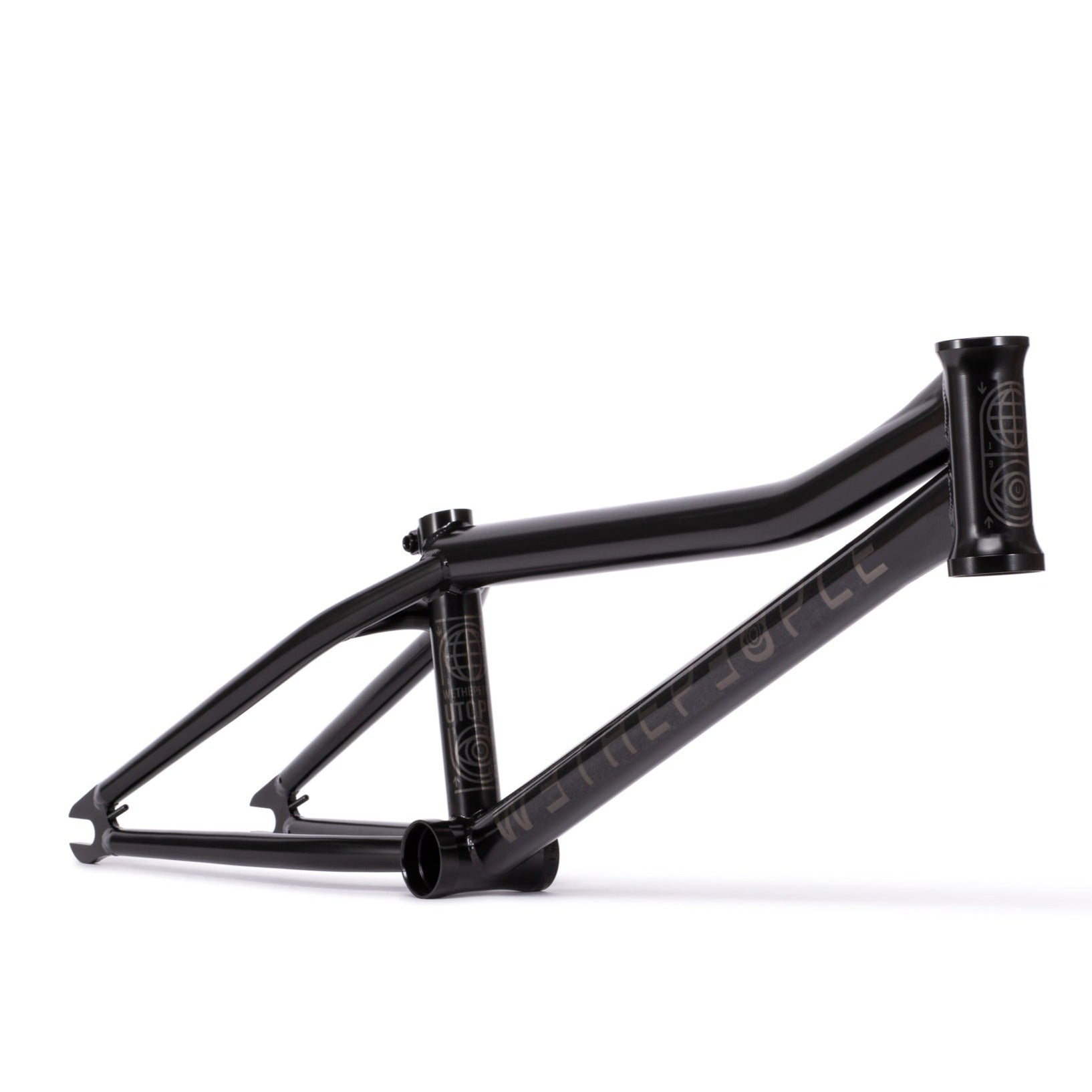

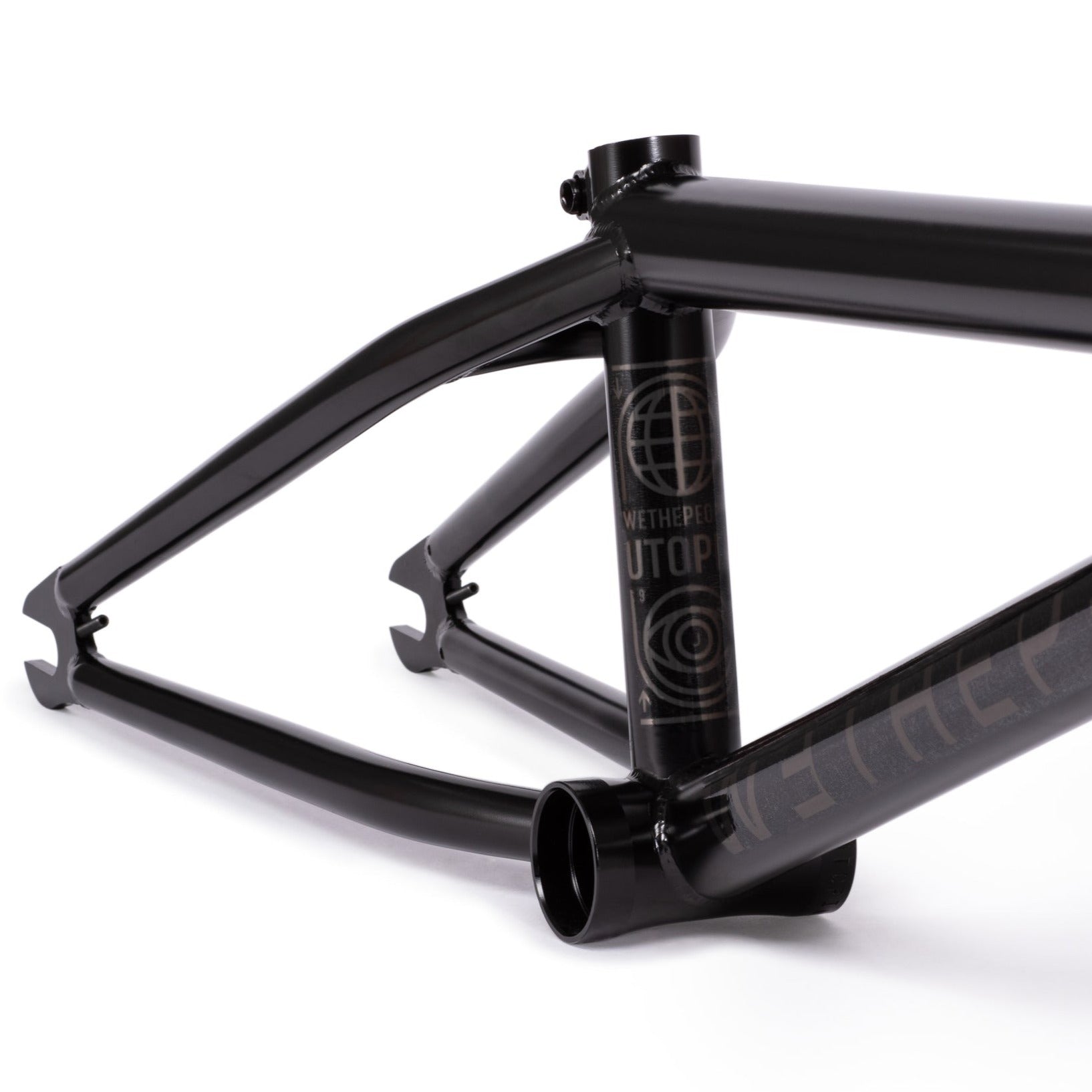

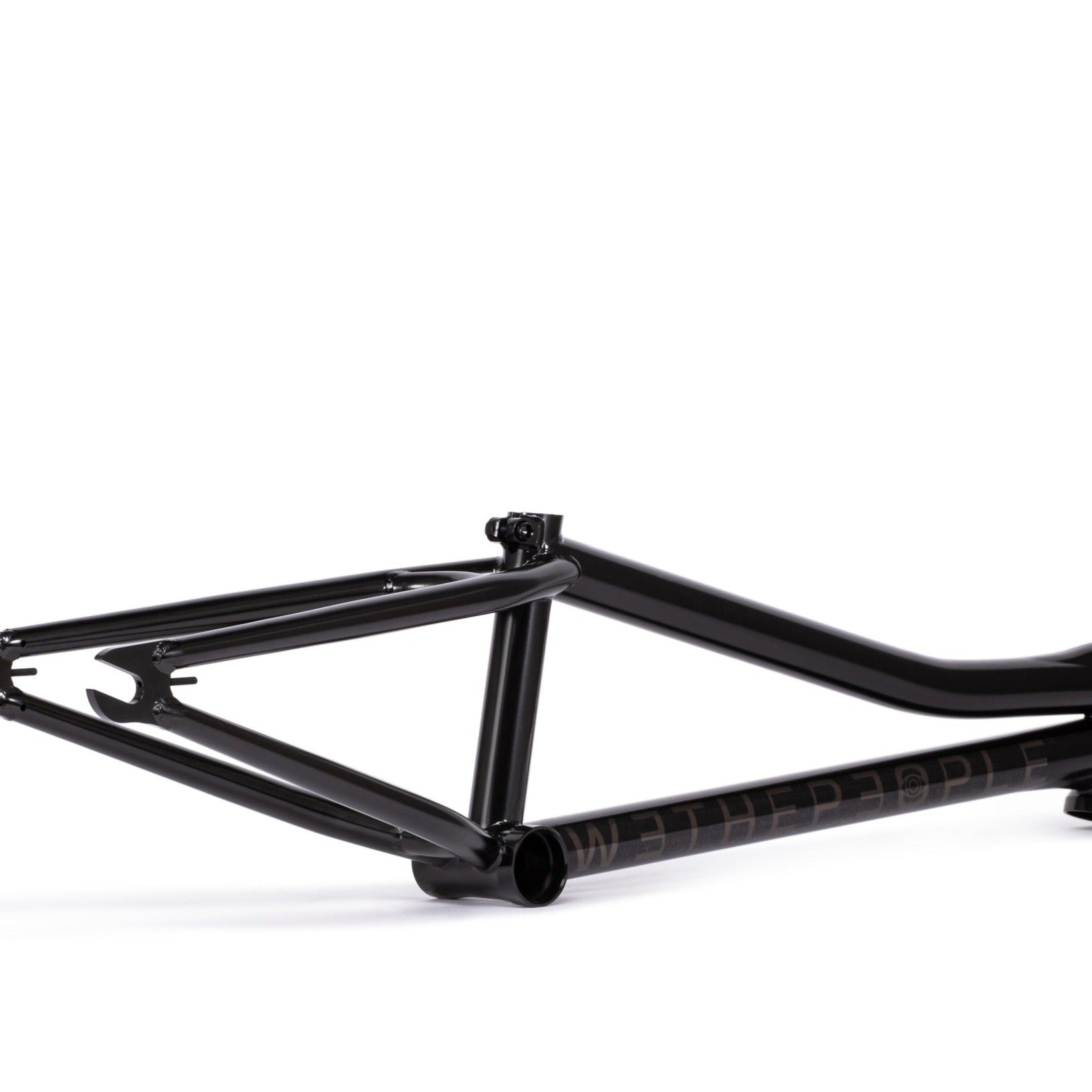

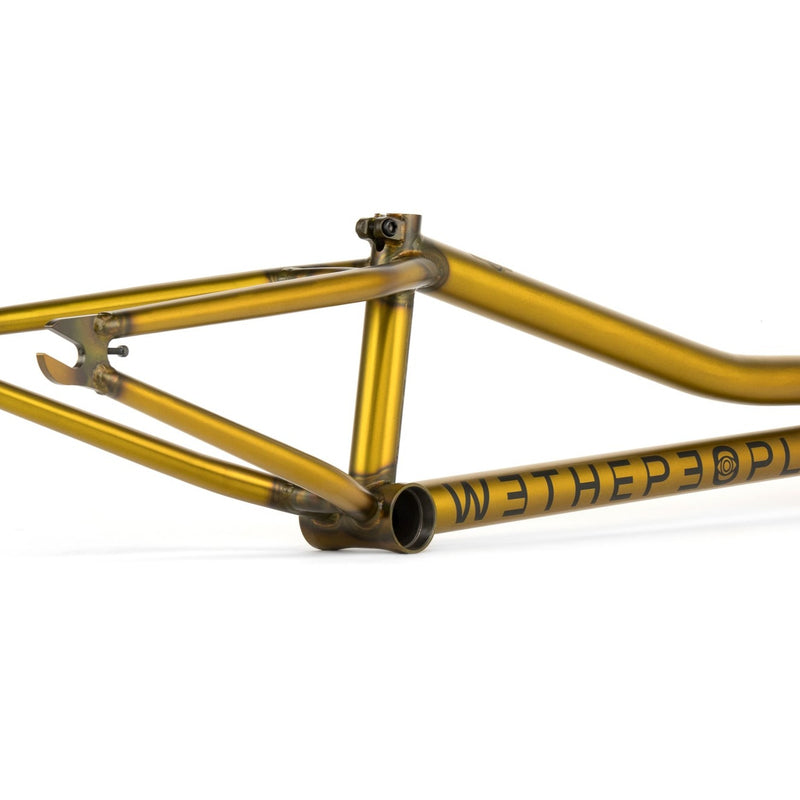

A pure-bred flatland machine, the Utopia frame is the most advanced flatland specific frame we’ve ever made. Based around modern flatland geometry, a kinked top tube for extra clearance and all new super-lightweight hydroformed tubing, this is one of the only flatland frames on the market backed up by a lifetime guarantee, so you know it’s built to last.

Material: Butted Japanese seamless 4130 crmo tubing

Features:

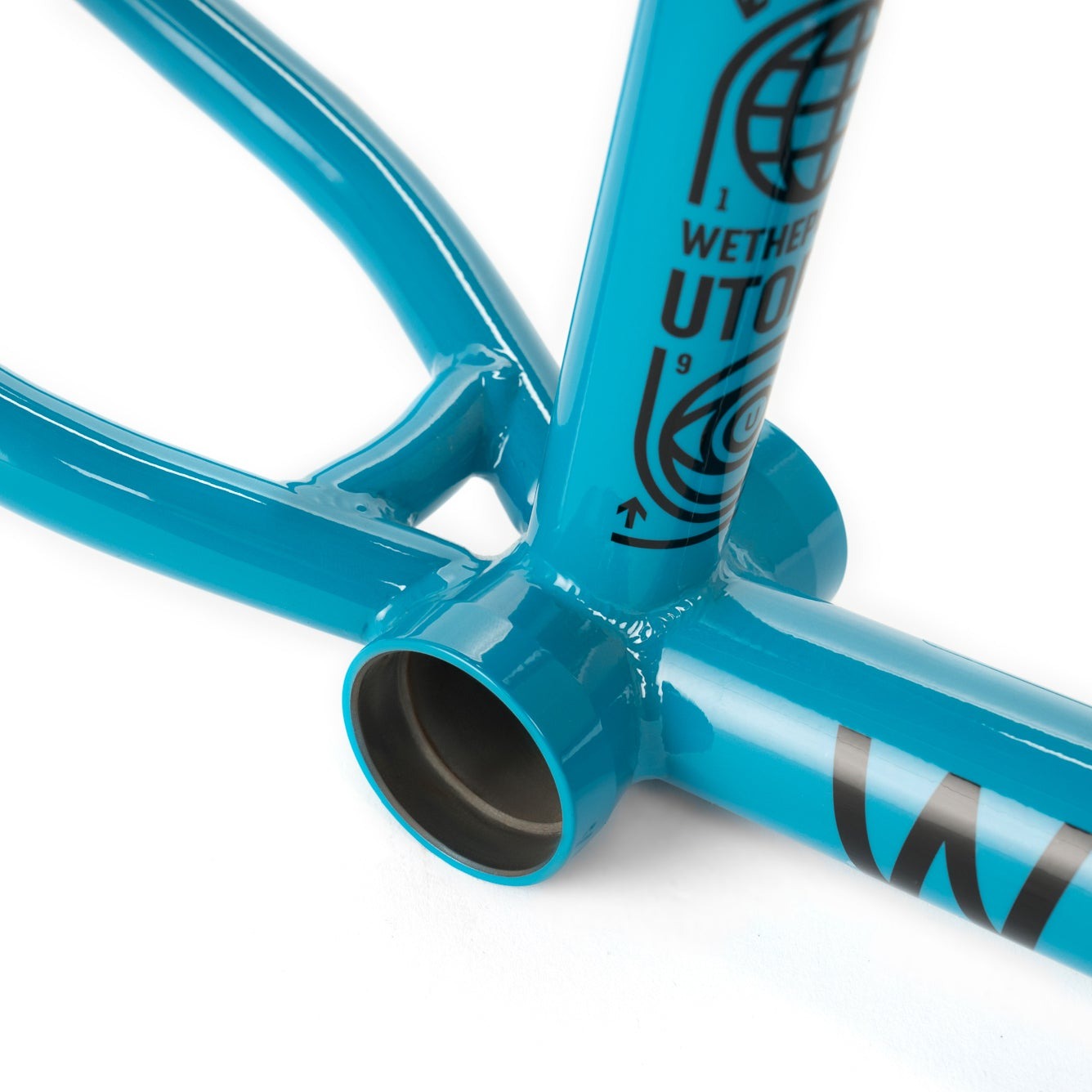

  • 74mm Spanish size BB shell
  • CNC machined and heat-treated

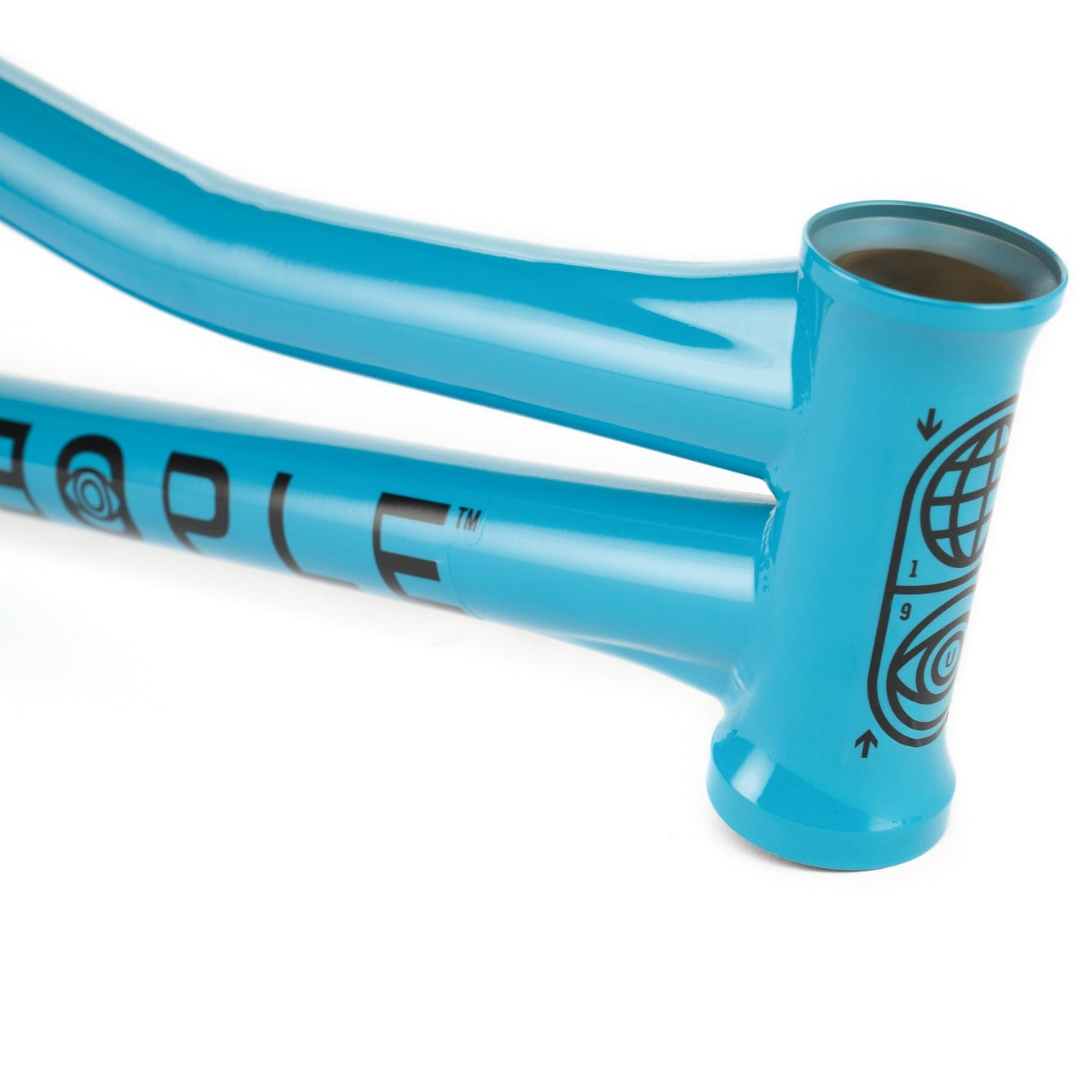

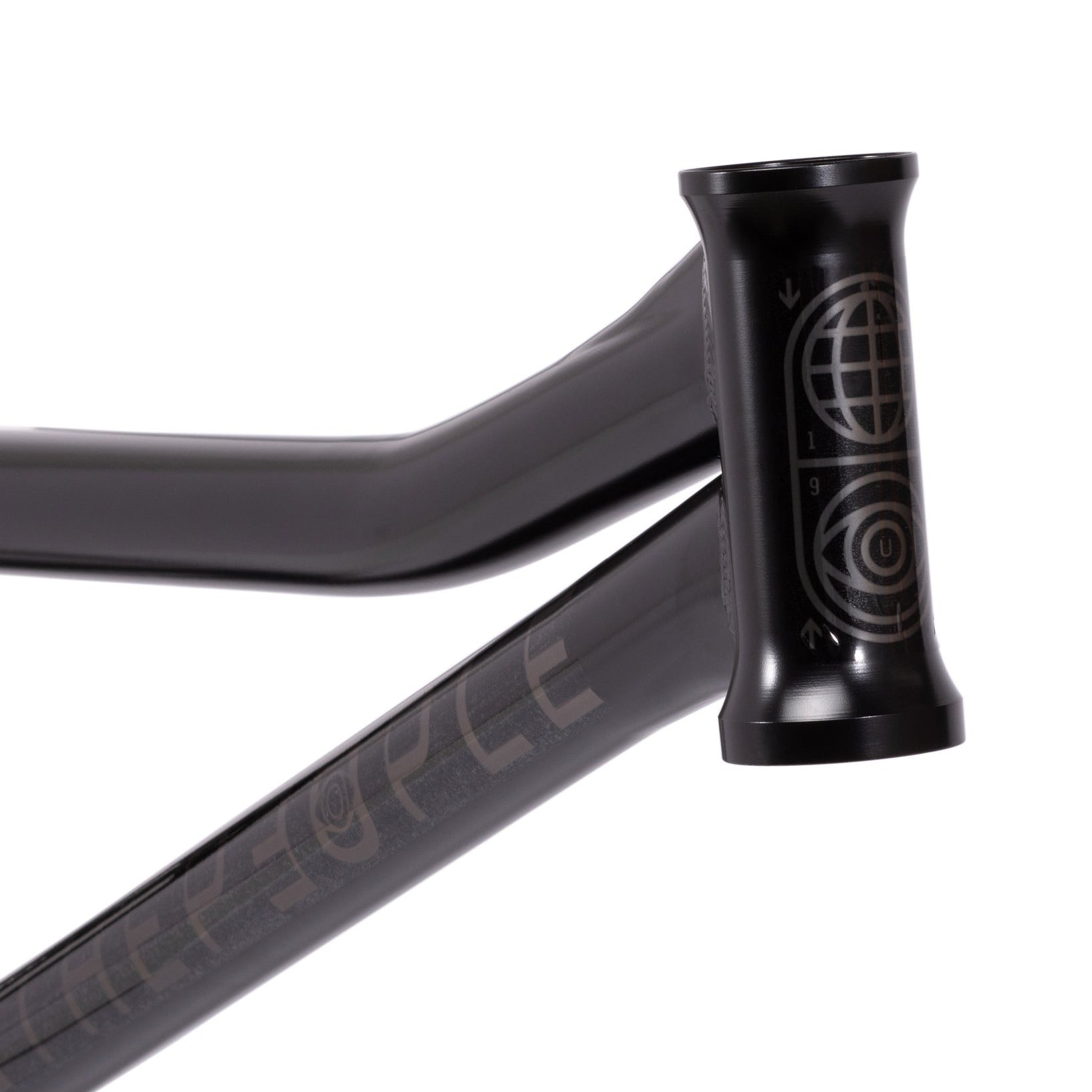

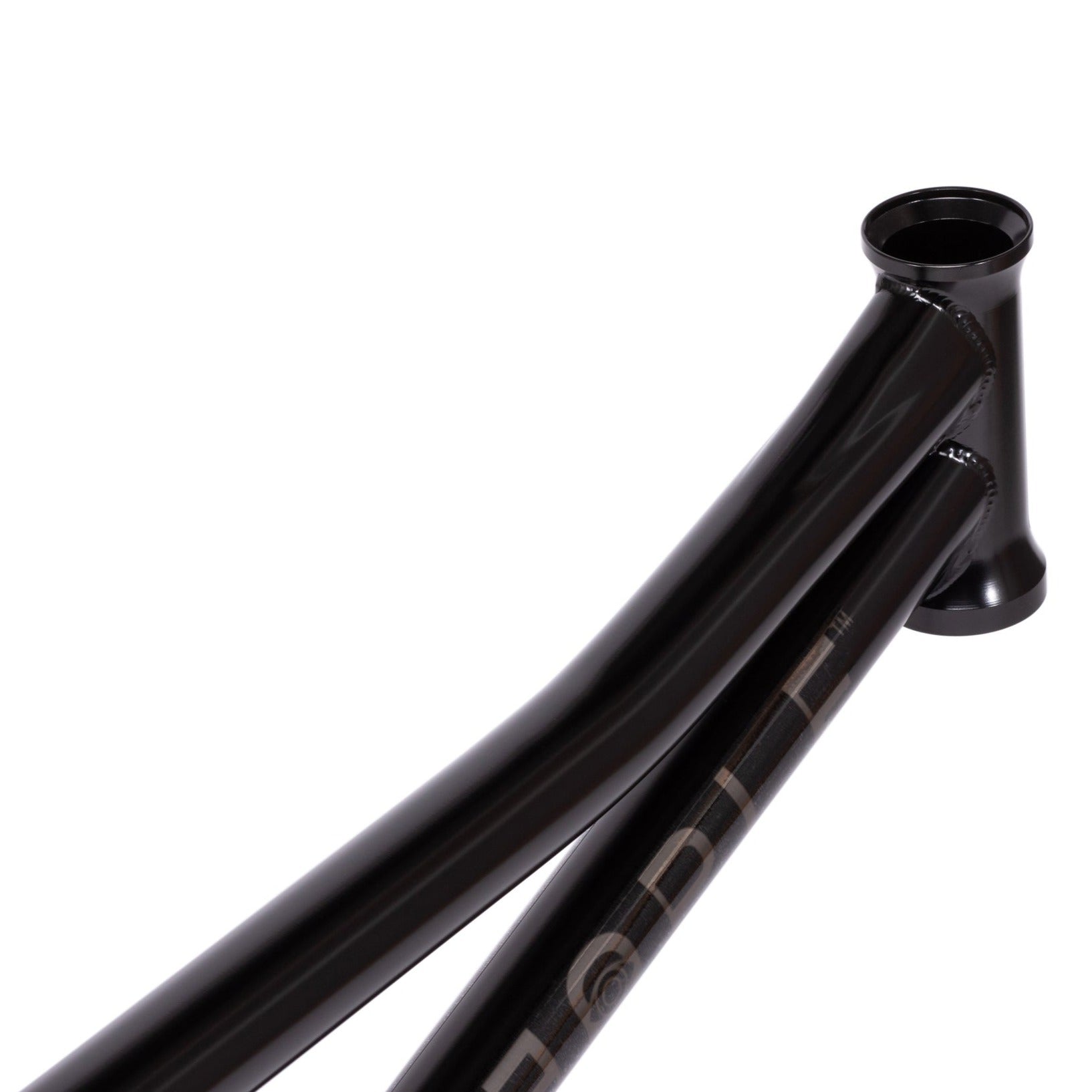

  • 110mm CNC machined and heat-treated integ. H/set

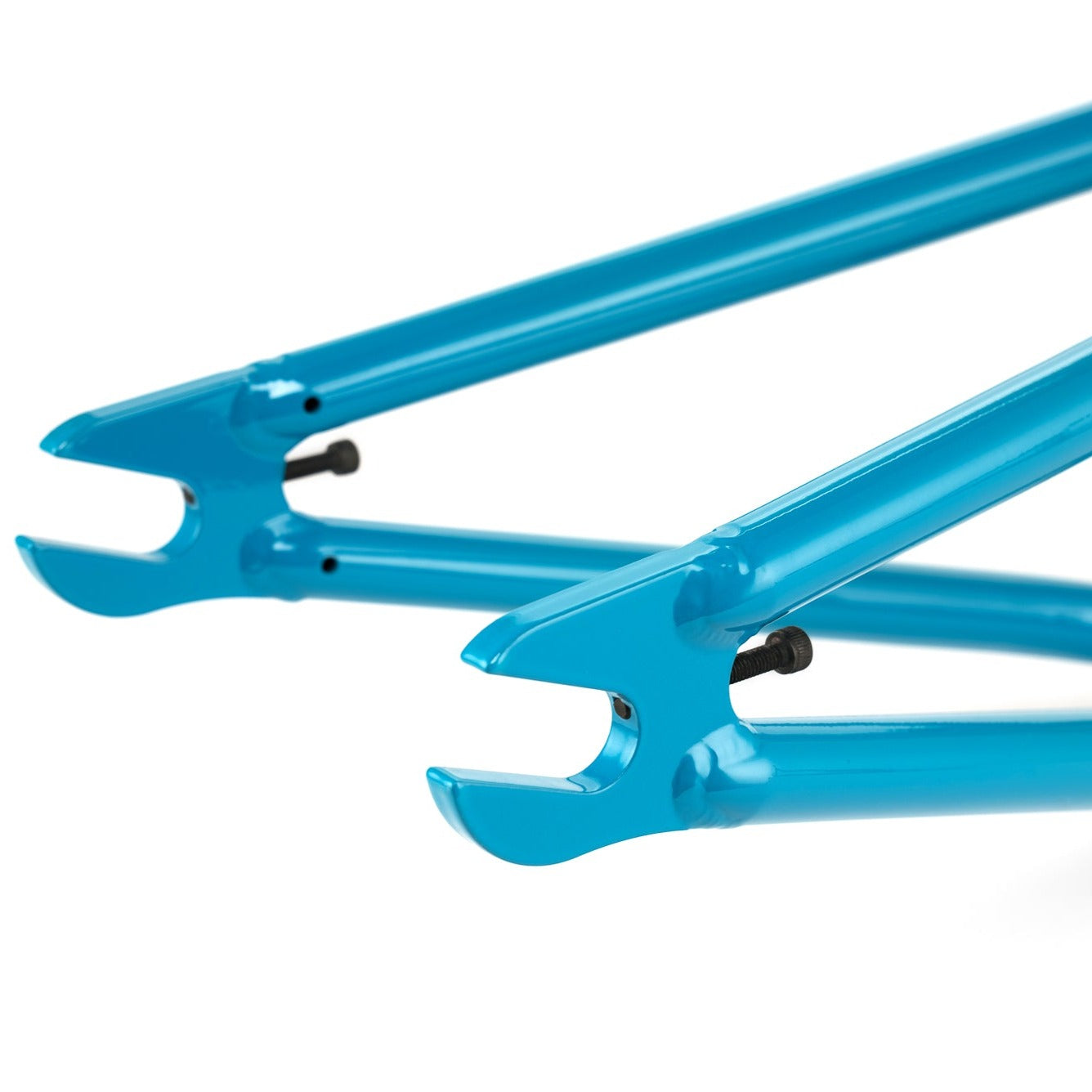

  • Laser cut and CNC machined 6mm heat-treated 4130 crmo- perfect shape for pegs w/ integrated chain tensioner
  • Brakeless frame
  • Technical street/flatland frame
  • Shorter top tube and lower seat tube for younger riders
  • Hydroformed top and down tube for superior strength and stiffness

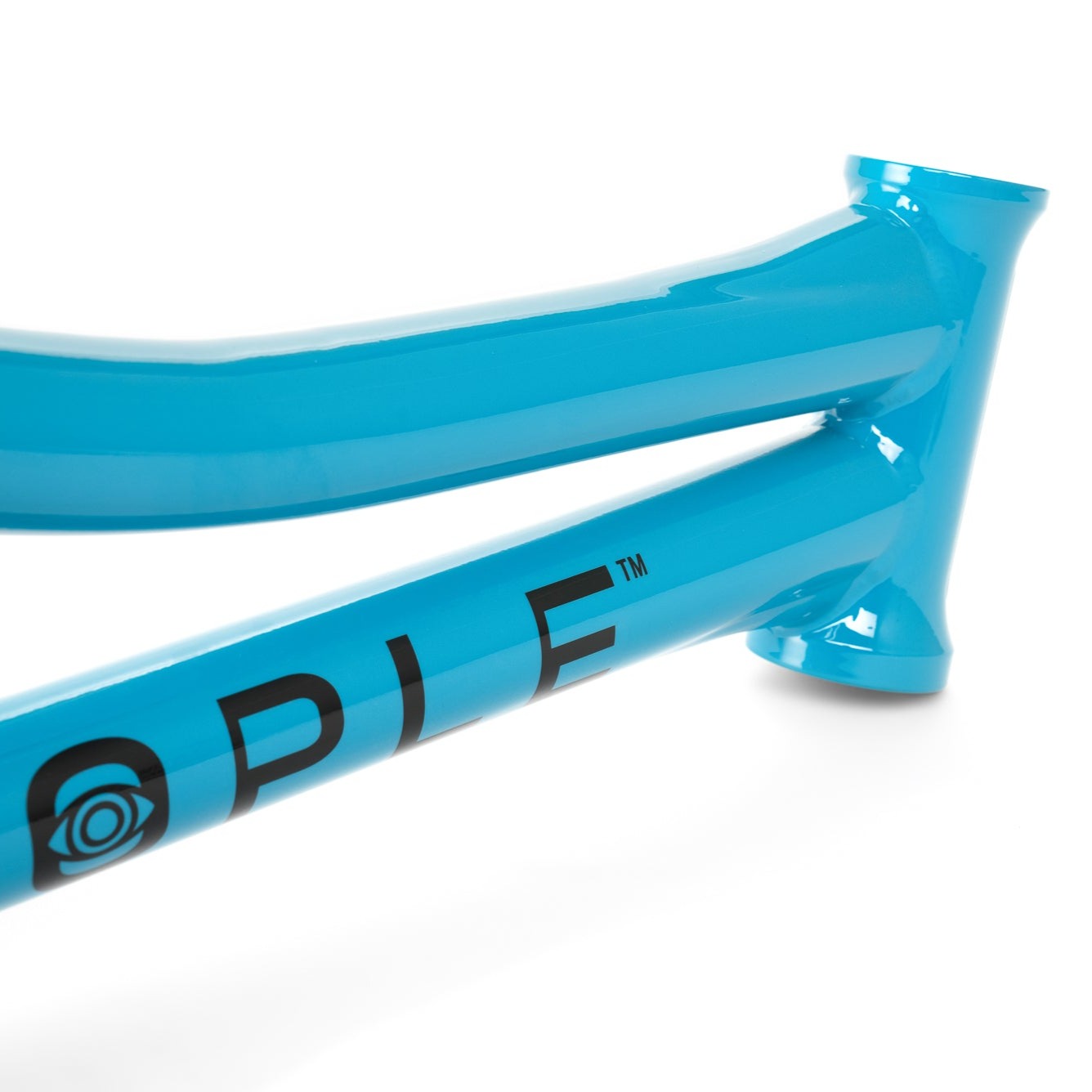

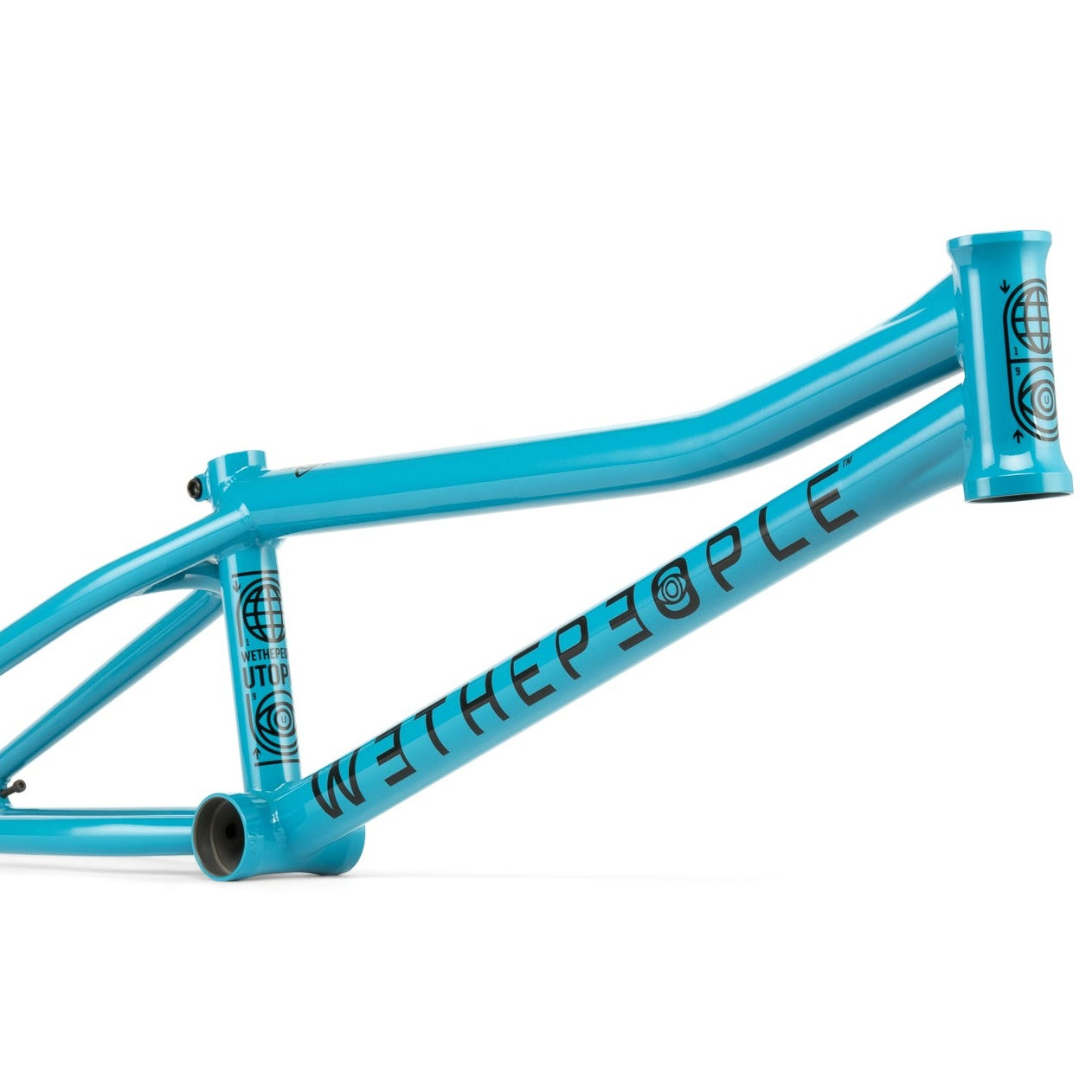

  • Kinked toptube for increased foot clearance
  • Frame comes with 14mm slot dropouts
  • Extruded top tube with integrated threads for cable guides

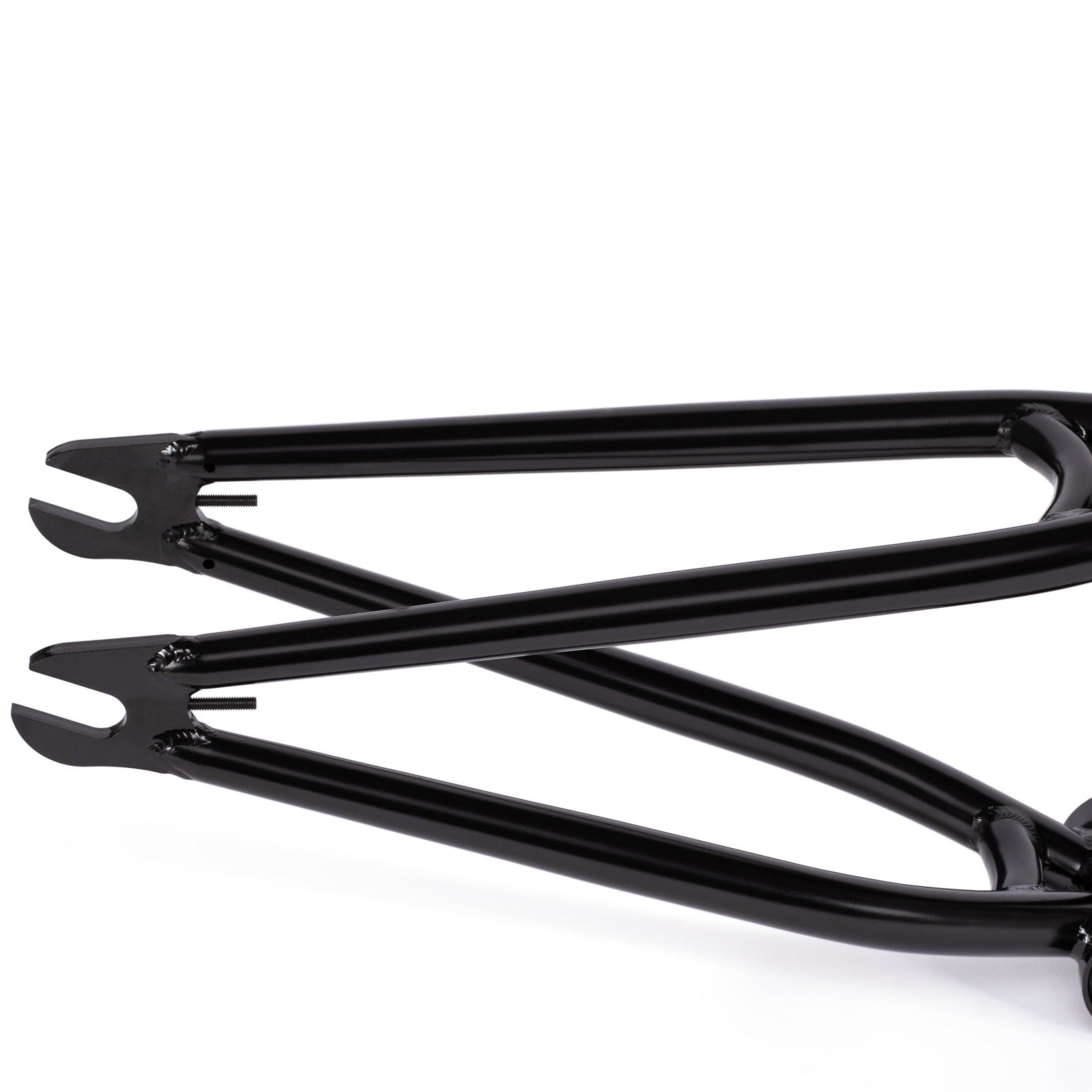

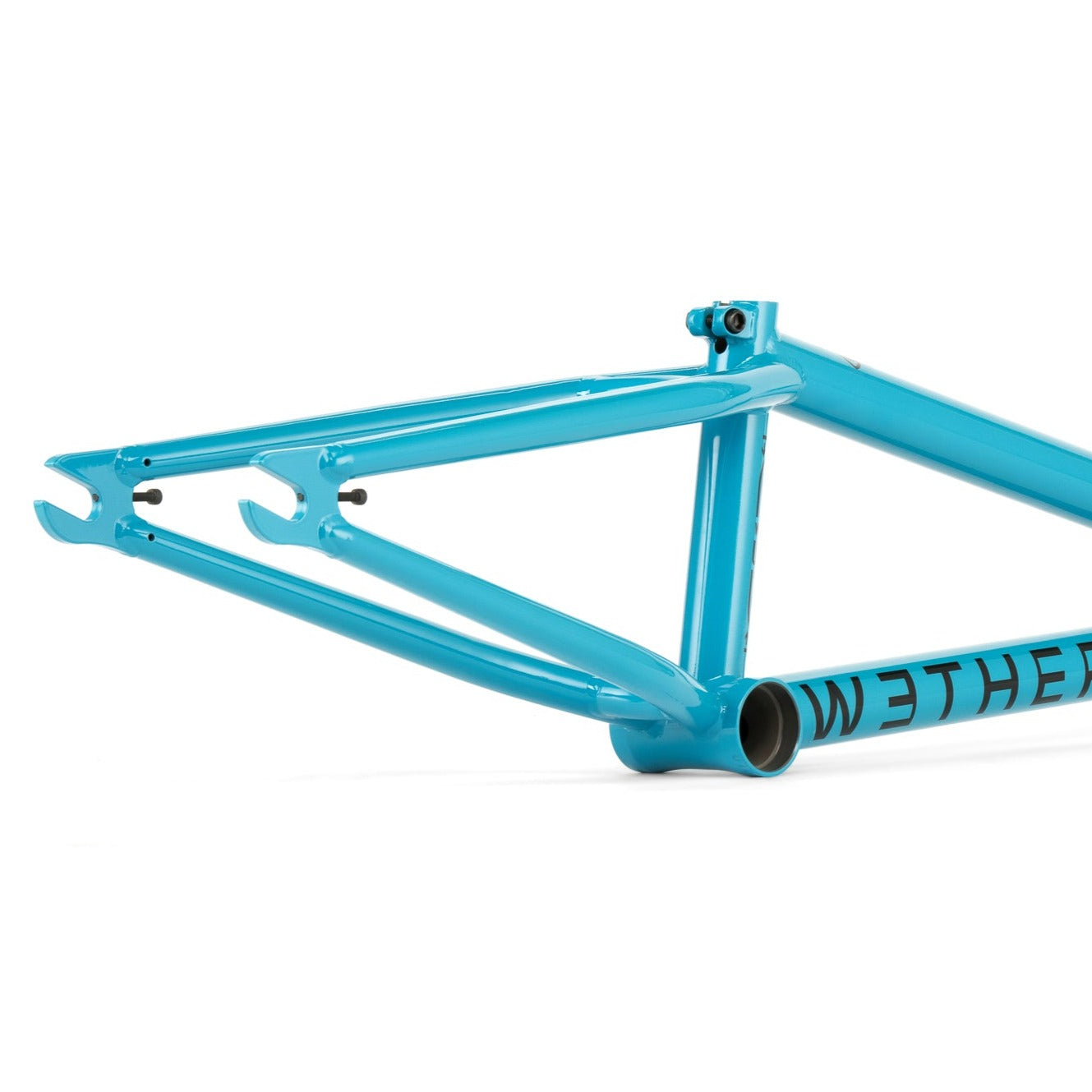

  • Tapered seat stays and chain stays with bullet tipped ends

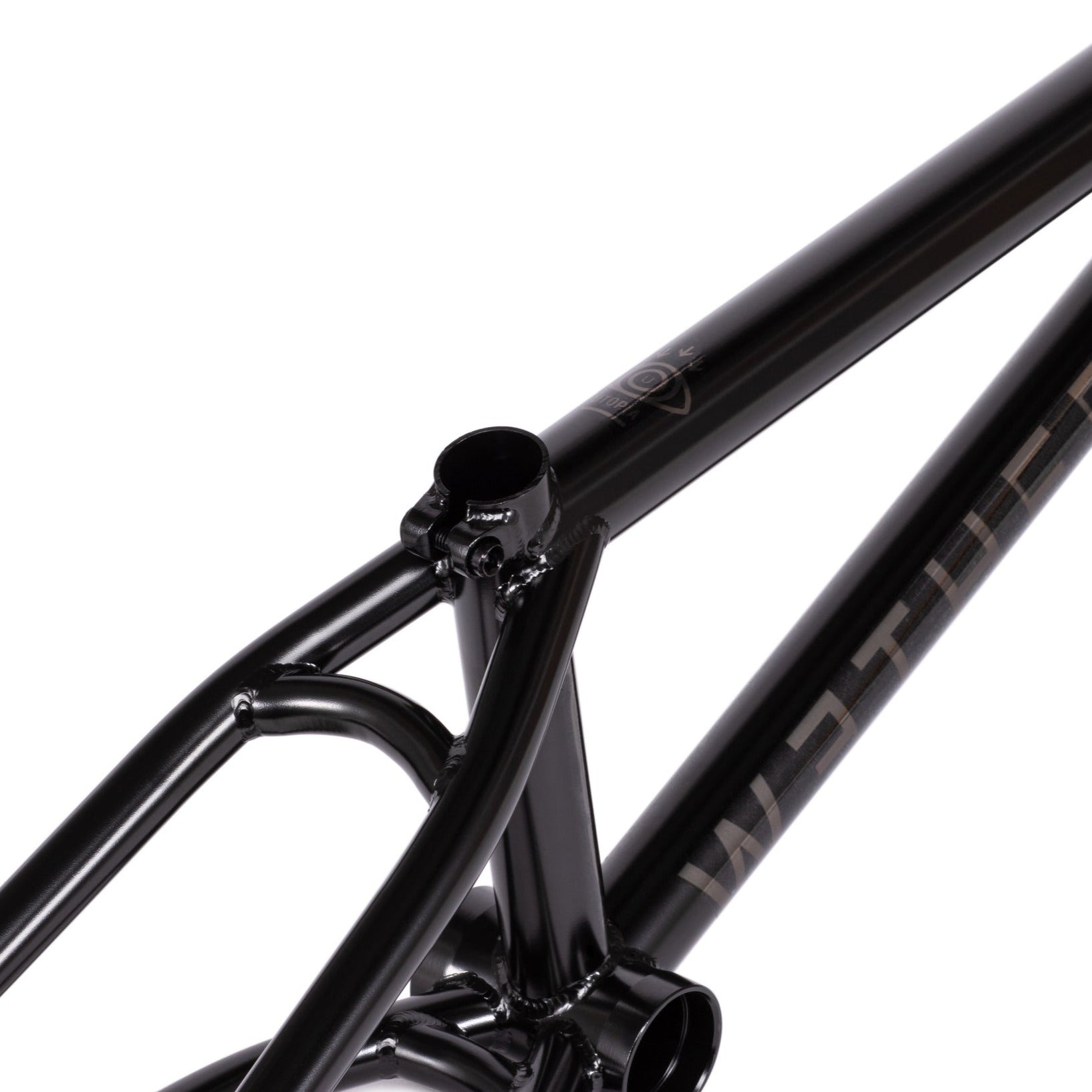

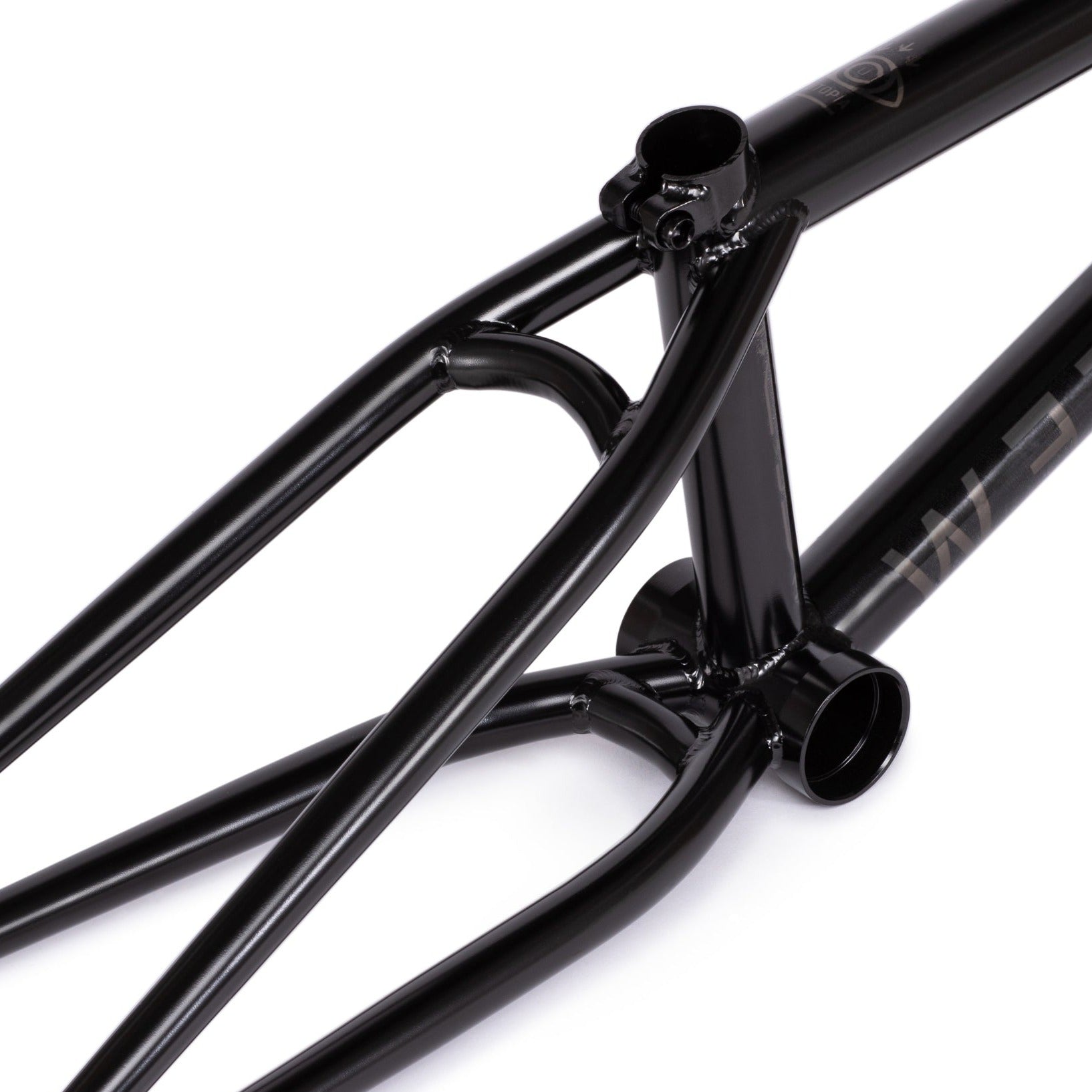

  • Curved seat stay bridge and chain stay bridge
  • Wider rear triangle allows clearance for a 2.3" tire
  • WTP top tube and down tube gusset

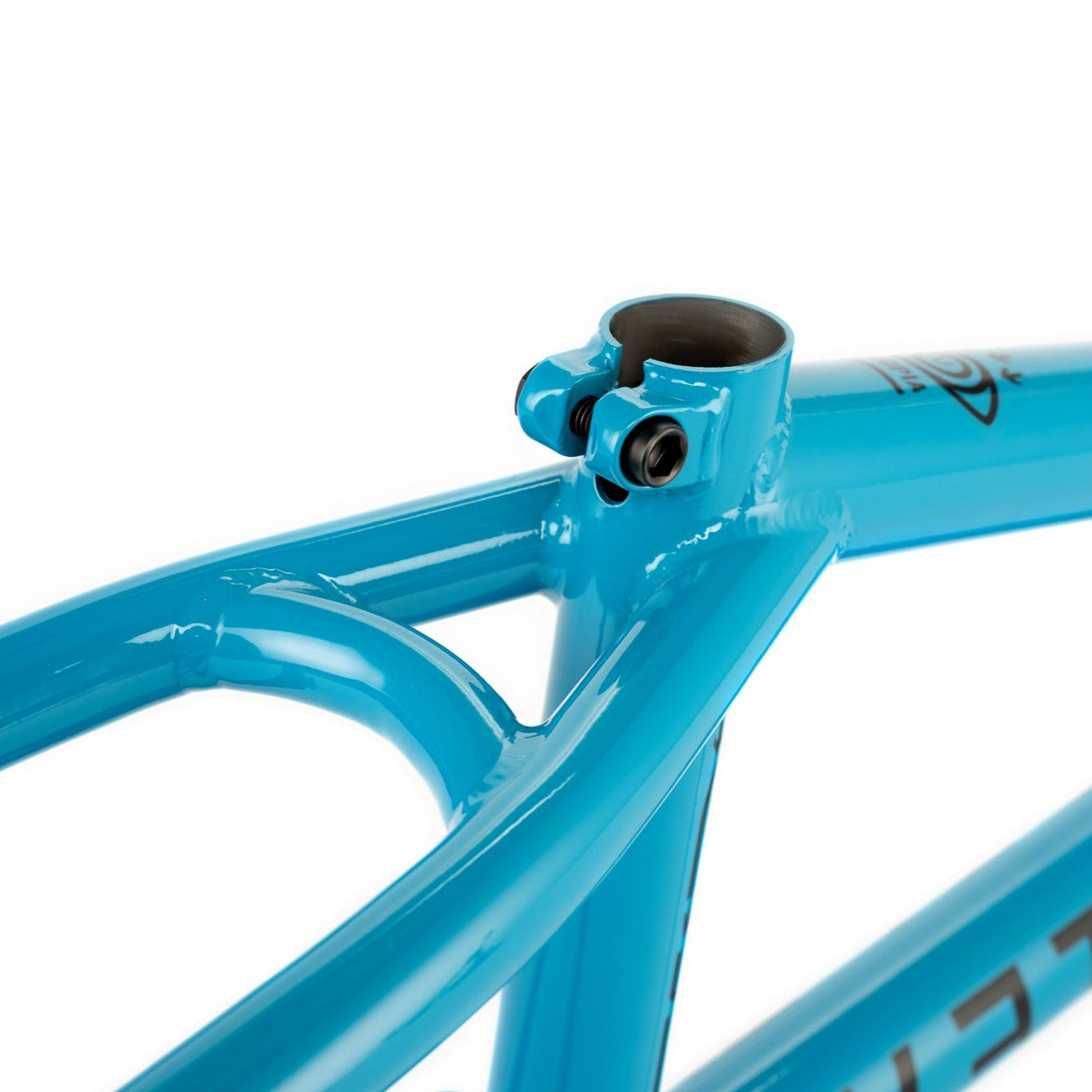

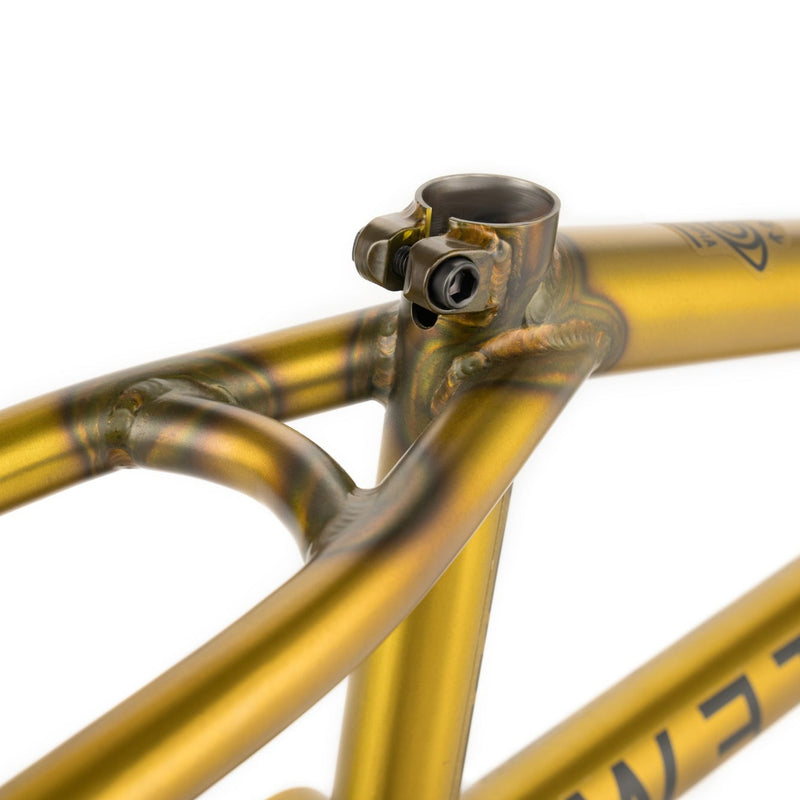

  • 6mm seat clamp bolt
  • Includes lifetime guarantee

Geometry:

  • Top tube: 19" or 20"
  • Chain stay length: 12.4" - 13.2" - optimized for 12.5/12.75" w/25-9
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Bb height: 12"
  • Standover height: 6.2"

Weight: 4.27LBS / 1.92KG (20”)
