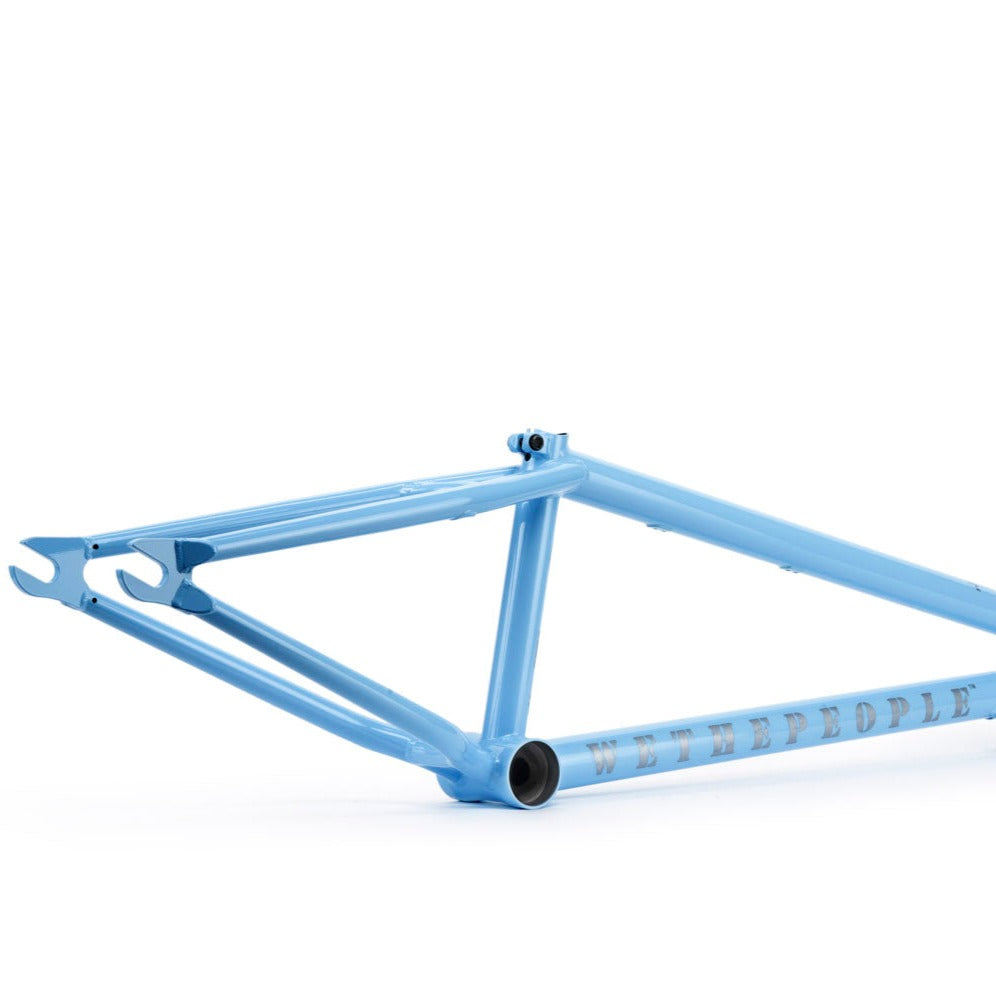

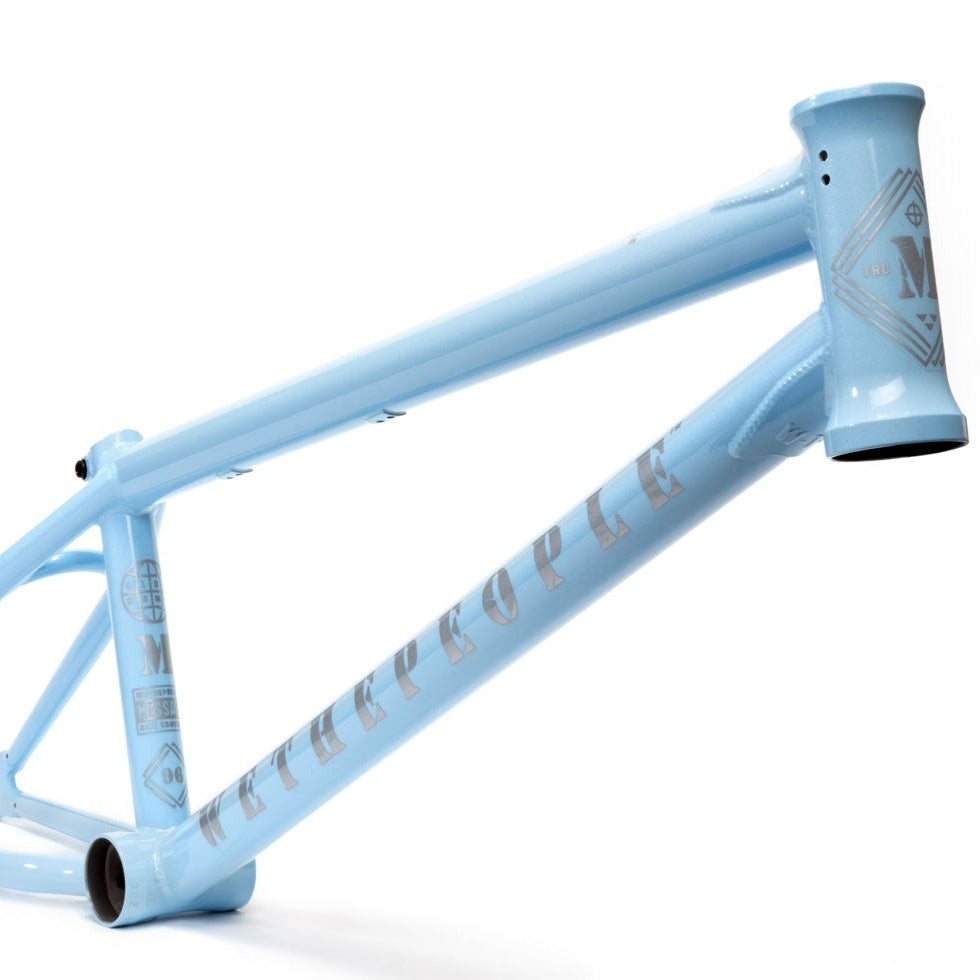

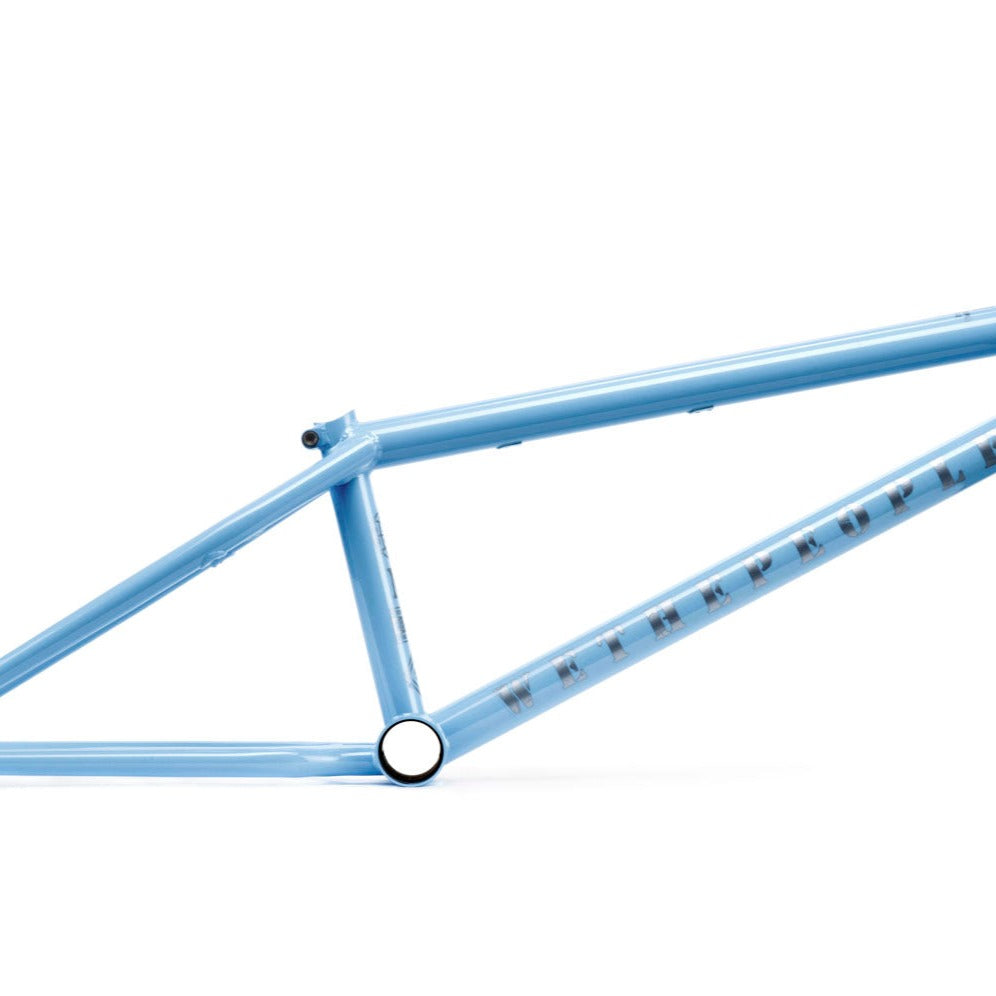

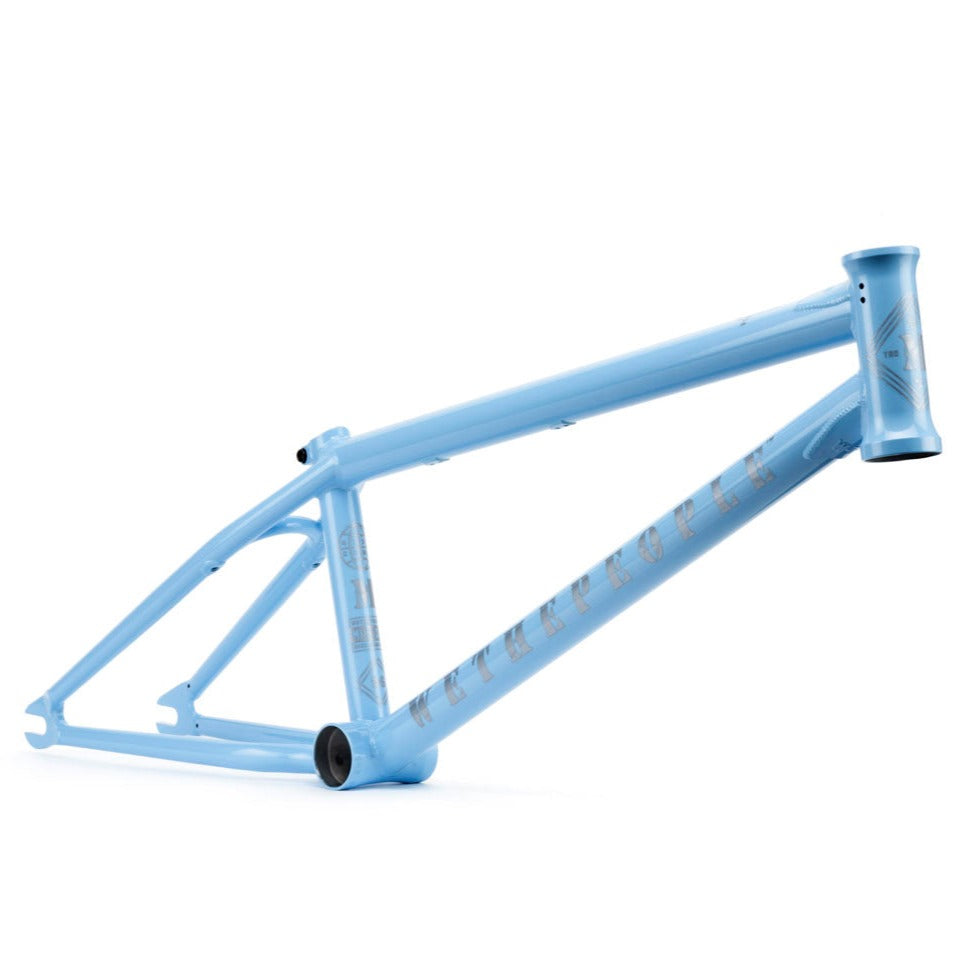

We wanted to grow from our current frame line, and offer a full aftermarket alternative for riders that need a strong, but lightweight technical park setup built to last. The Message frame boasts a lower stand over height, fast geometry and custom dual cable brake hardware making it perfect for the technical ramp rider. Includes lifetime guarantee.

Material: Butted Japanese seamless 4130 crmo tubing

Colour:

• Black

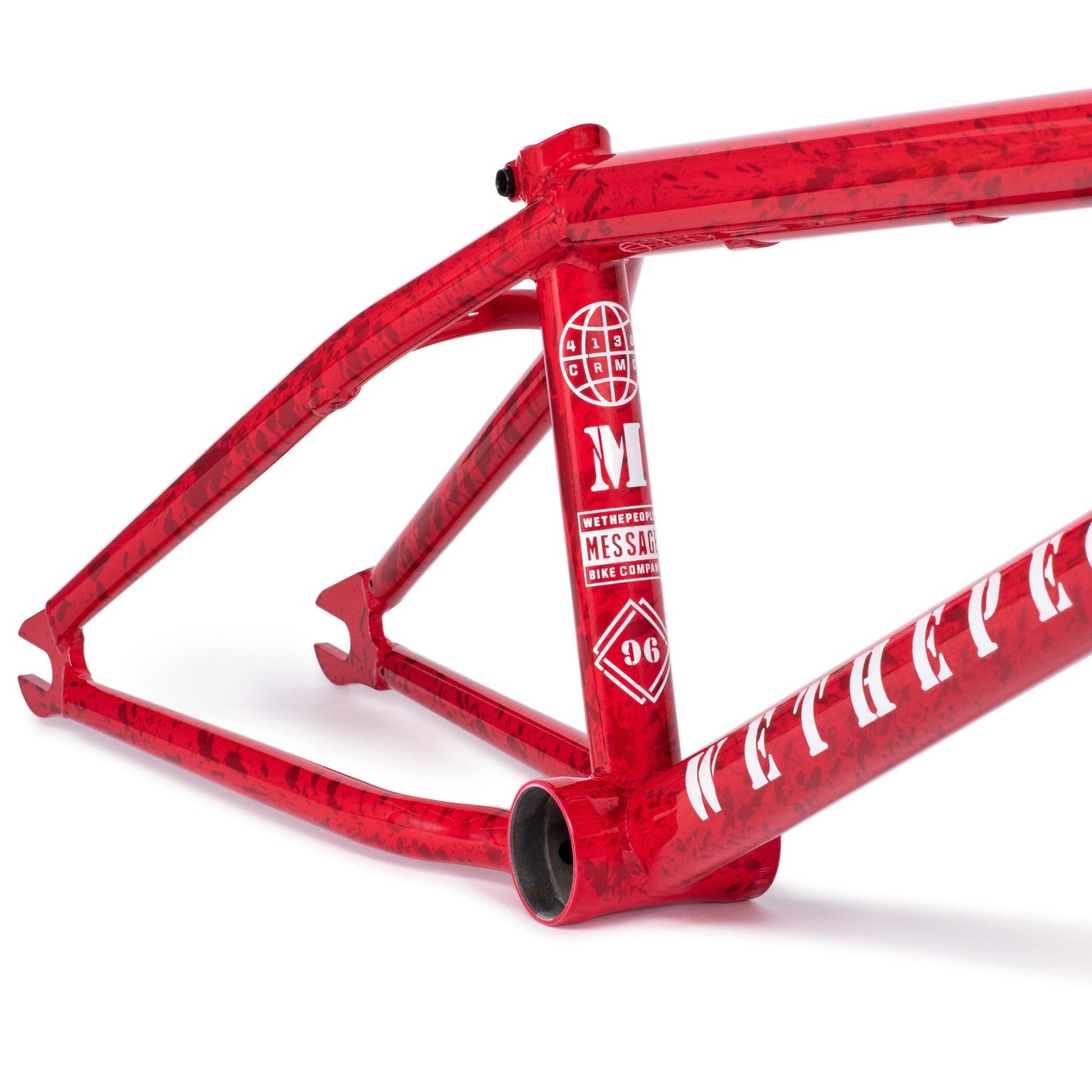

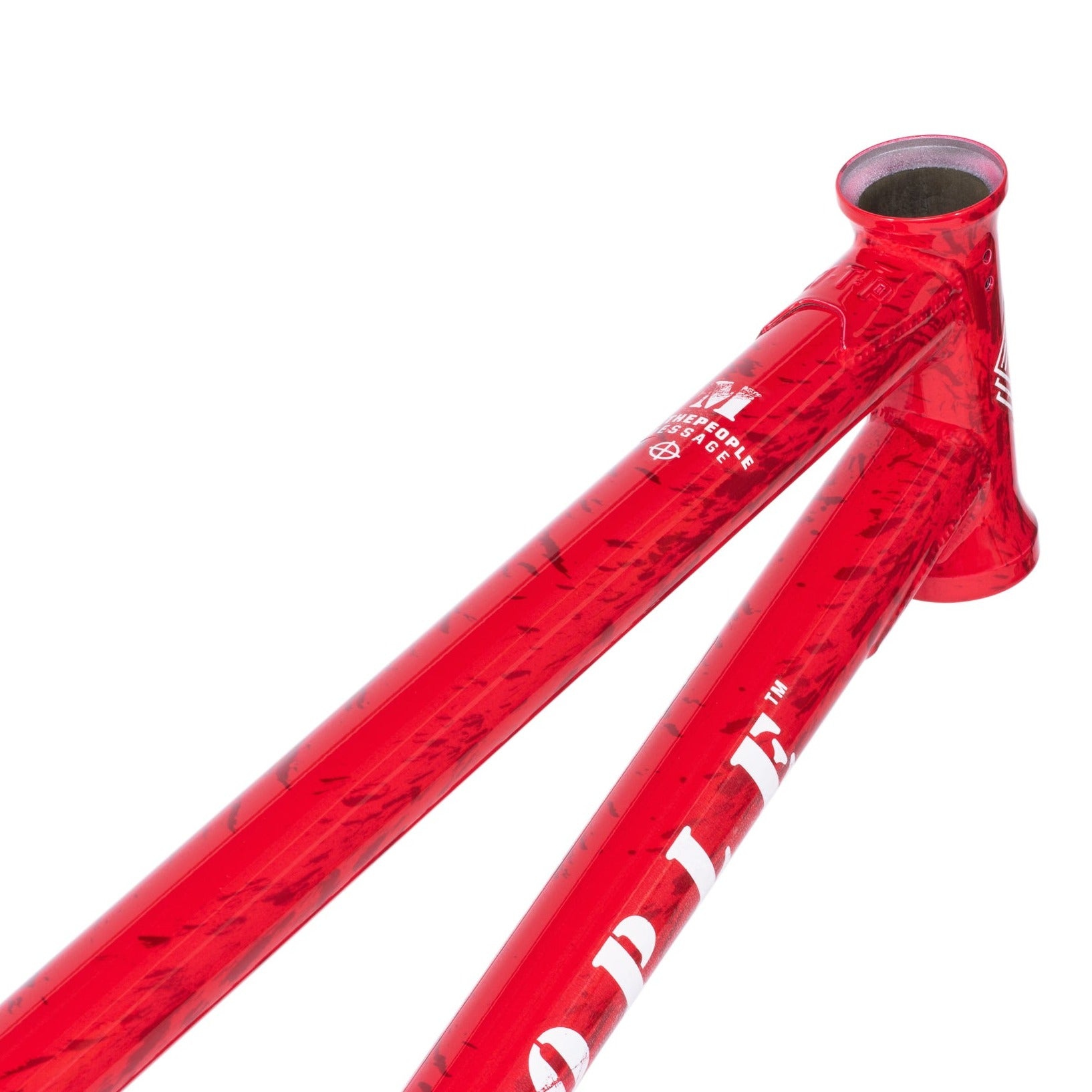

• Firestorm red

Features:

• 74mm mid size bottom bracket cnc machined and heat-treated
• 117mm CNC machined and heat-treated headtube
• Integ. H/set- drilled for gyro tabs

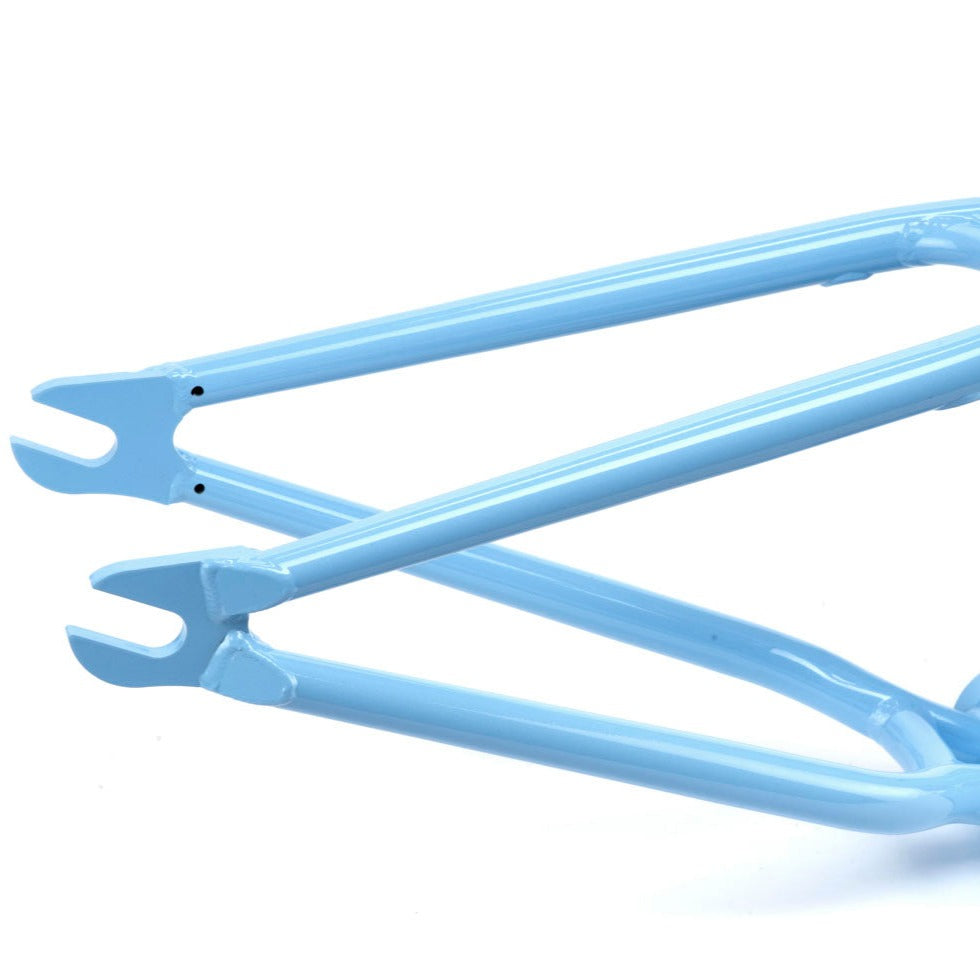

• 6mm CNC machined and heat-treated dropouts minimal size yet still peg compatible- heat-treated 4130 crmo
• Pivot-3 removable brake mounts (frame comes without repl. Brake hardware)
• Park/transition inspired technical frame
• Extruded top tube with integrated threads for cable guides

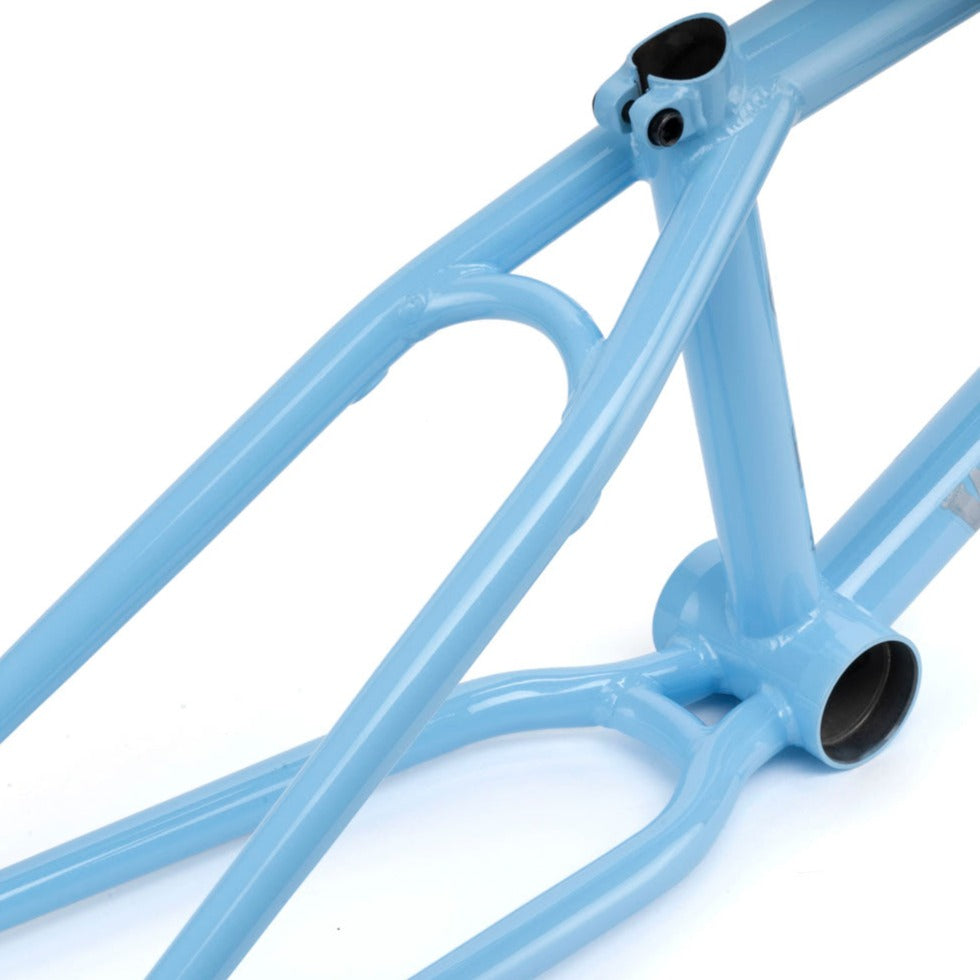

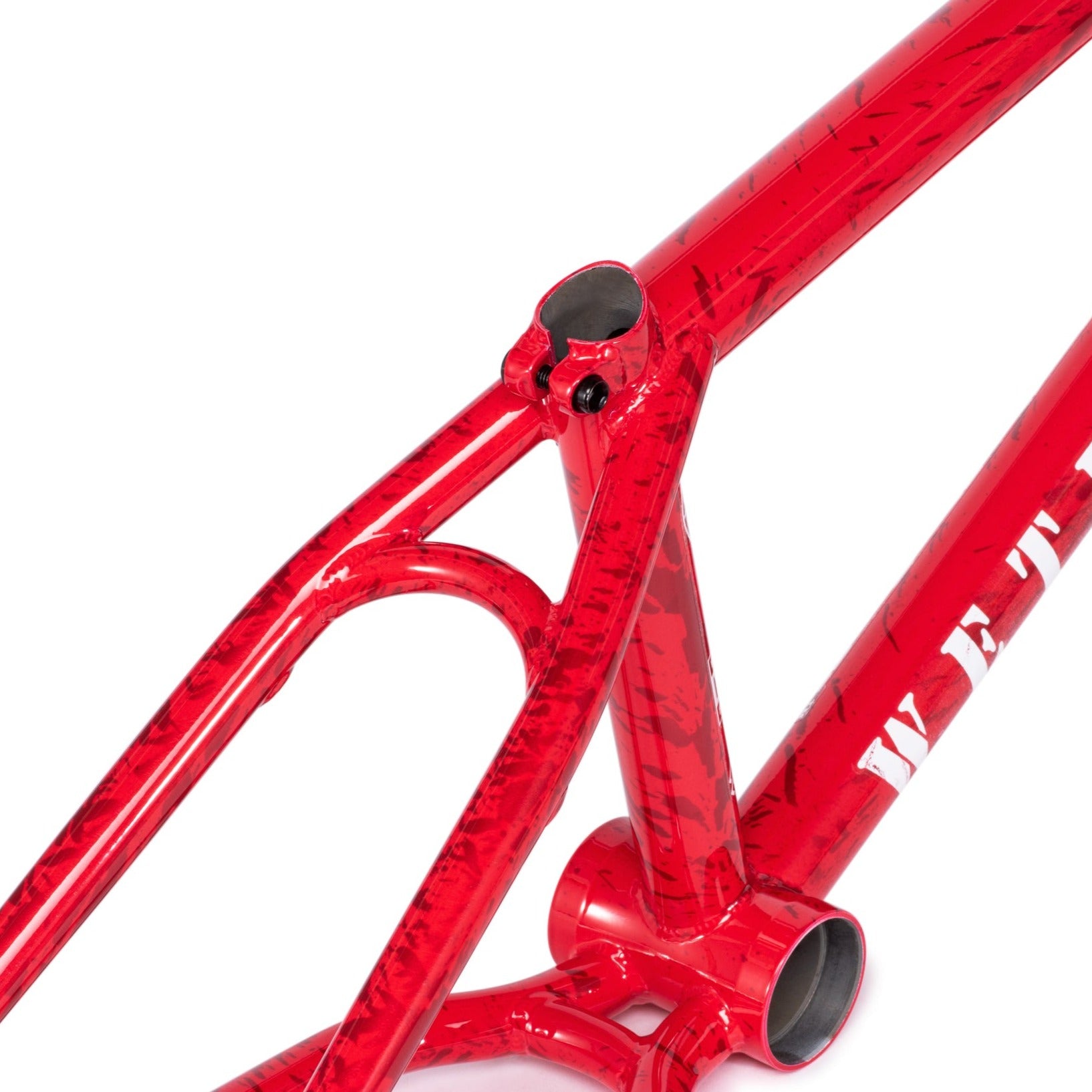

• Curved seat stay bridge and chain stay bridge
• Wider rear triangle allows clearance for a 2.4" tire
• 6mm seat clamp bolt
• Wtp top tube and down tube gusset
• Ovalised chain stays for increased tire & sprocket clearance
• Includes lifetime guarantee

Geometry:

• Top tube: 20.3"
• 20.6" or 21''
• Chain stay length: 12.95" – 13.5" - optimized for 13‘‘/13.25‘‘ w/25-9
• Head tube angle: 75.5°
• Seat tube angle: 71°
• Bb height: 11.5"
• Standover height: 8"

Weight: 2.4kg (5.32 lbs.) - 21" tt
