Color
Size
Regular price €379,99
/
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included. Shipping calculated at checkout.

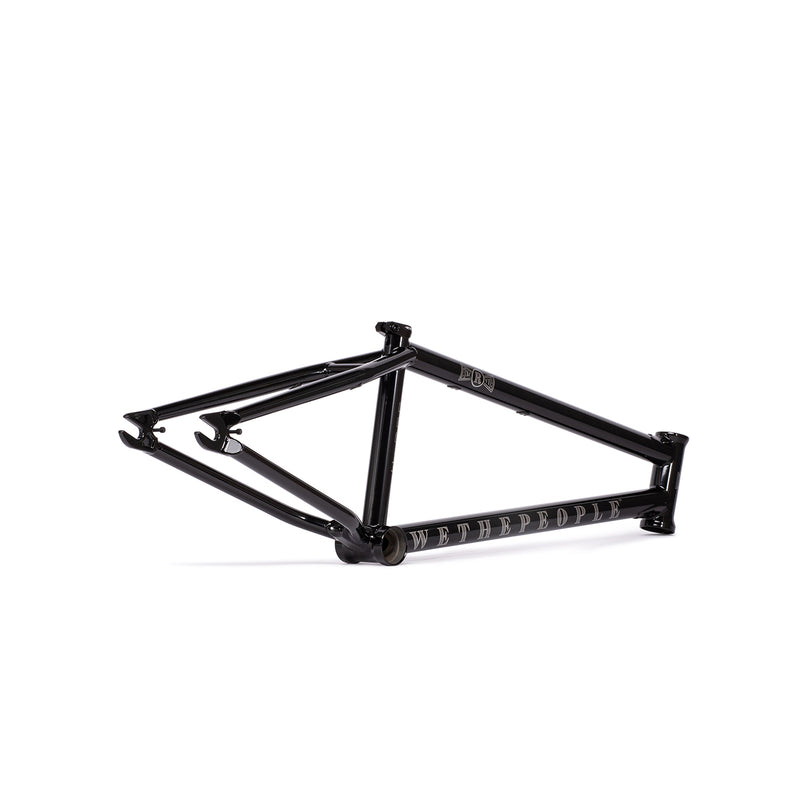

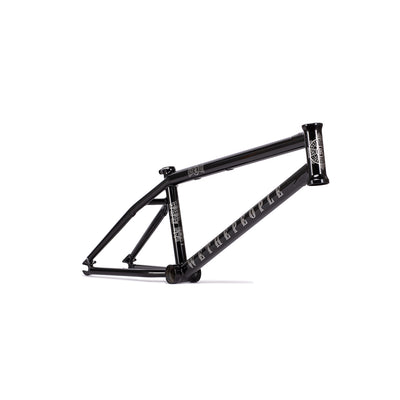

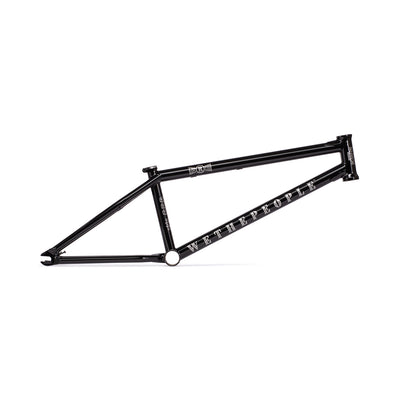

The Revolver frame is the perfect do-it-all and do-it-well model. A frame that was created with the sole intention of shredding on any terrain. We used larger diameter rear tubing and an invest cast wishbone, to not only give the revolver a strong and unique look but more importantly to strengthen and stiffen the whole frame up - giving it a stable yet responsive feel. Combined with 7.5mm thick invest cast dropouts with integrated chain tensioners - The Revolver is a deadly weapon capable of just about anything. Includes lifetime guarantee.



TOP TUBE LENGTH: 20.75", 21" OR 21.25"
CHAIN STAY LENGTH: 13.25"-13.75'' - OPTIMIZED FOR 13.25"/13.5'' W/ 28-9
HEAD TUBE ANGLE: 74.85°
SEAT TUBE ANGLE: 71°
BB HEIGHT: 11.5"
STANDOVER HEIGHT: 9.1"
TUBING: BUTTED, JAPANESE SEAMLESS 4130 CRMO TUBING

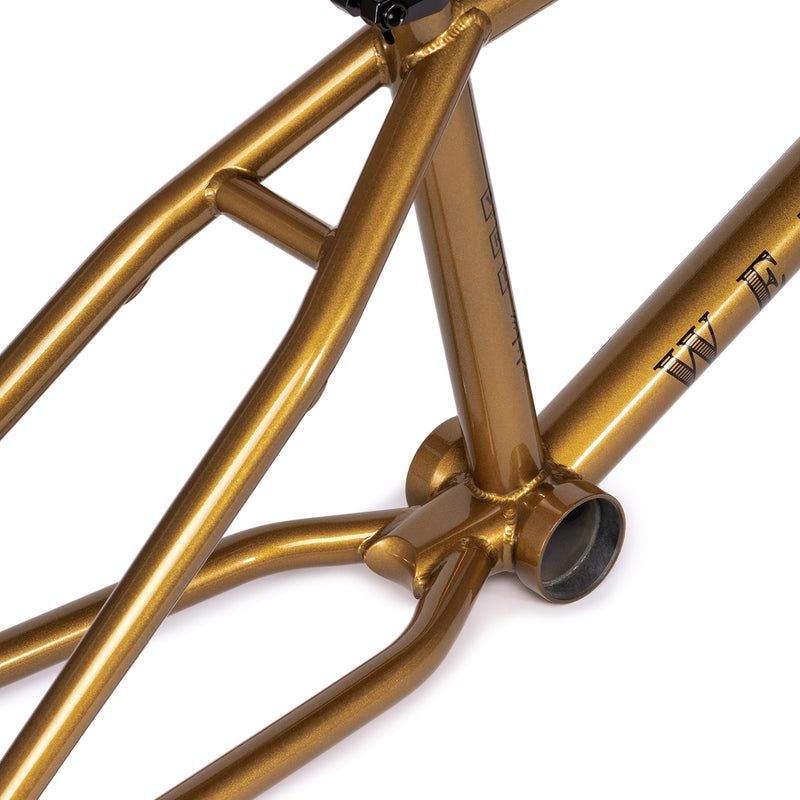

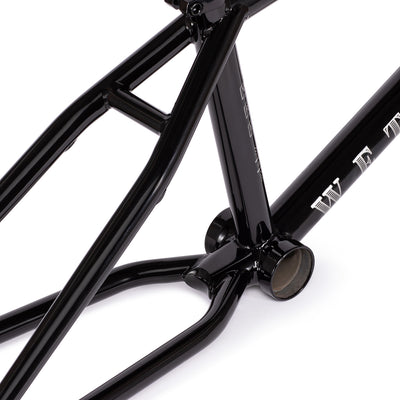

BOTTOM BRACKET: 74MM MID SIZE, CNC MACHINED AND HEAT-TREATED

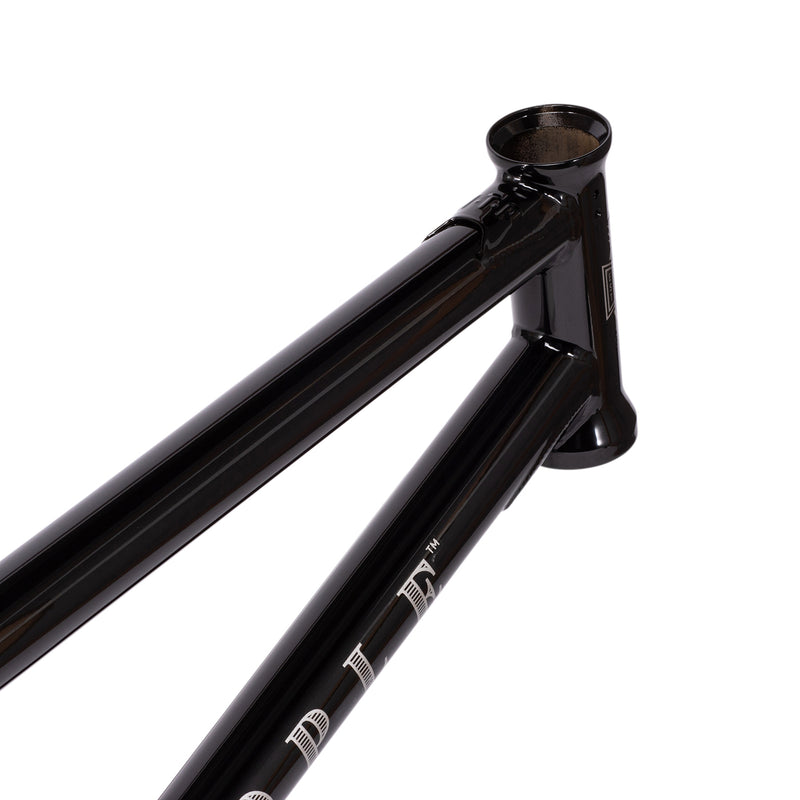

HEAD TUBE: 127MM CNC MACHINED AND HEAT-TREATED, INTEG. H/SET, DRILLED FOR GYRO TABS

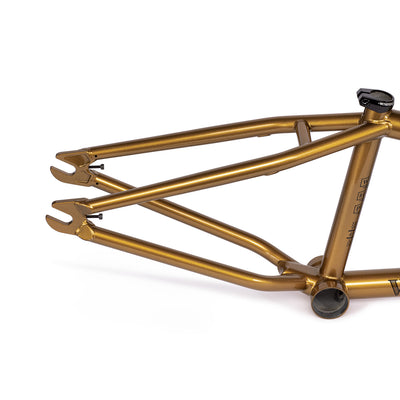

DROPOUTS: 7.5MM INVESTMENT CAST WITH INTEGRATED CHAIN TENSIONERS, HEAT-TREATED 4130 CRMO
BRAKES: PIVOT-3 REMOVABLE BRAKE MOUNTS, FRAME COMES WITHOUT REPL. BRAKE HARDWARE

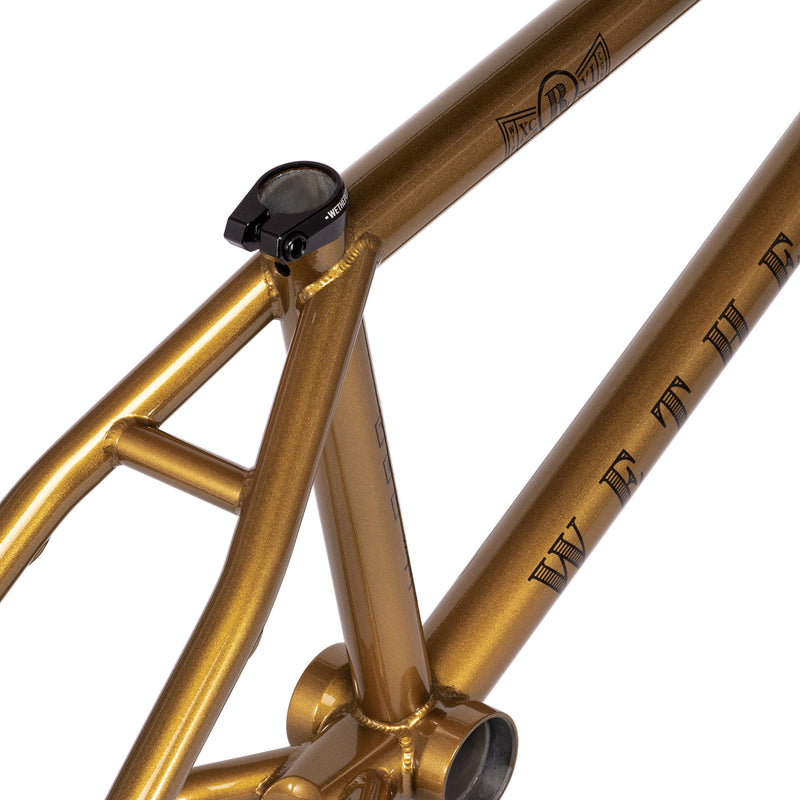

SPECIAL FEATURES: PERFECT ALL-ROUND FRAME WITH CAREFULLY BALANCED GEOMETRY, AND BULLET-PROOF TUBING • INVESTMENT CAST WISHBONE DESIGN FOR AN EXTRA STIFF BACKEND • LARGER RADIUS STAY TUBING FOR A STIFFER AND STRONGER BACK END • WIDER REAR TRIANGLE ALLOWS CLEARANCE FOR A 2.4" TIRE • WTP TOP TUBE AND DOWN TUBE GUSSET • INCLUDES WTP SUPREME 6061-T6 ALLOY AFTERMARKET SEAT CLAMP
INCLUDES LIFETIME GUARANTEE
COLORS: BLACK/KASHIMA BRONZE
WEIGHT: 2.385KGS (5.25LBS) - 21" TT
