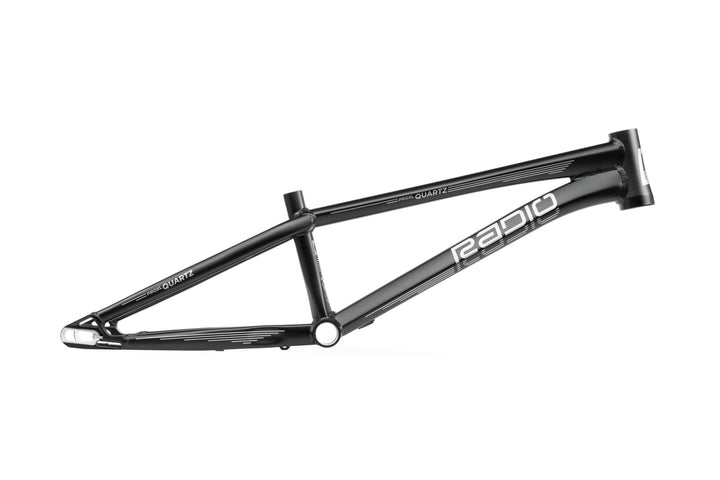

Our world championship-winning Quartz Frame is now available in a brand-new disc version, premiering our Sliding Dropout Disc System (SDDS). Utilizing a flat mount style calliper and internal cable routing for the best possible braking system; with this huge upgrade, the Quartz is now one of the lightest and most progressive alloy frames on the market!
Toptube Length: 20.5” (520.7mm)
Chain Stay Length: 13.9” (353mm)
Rider Area: TBA
Head Tube Angle: 74°
Seat Tube Angle: 71°
BB Height: 11.6" (294.64mm)
Seat Tube Height: 9.1" (231mm)
Wheel Size: 20" (406mm) x 1.75”
Head Tube Size: tapered 1-1/8” - 1.5” for integrated headset
Seat Post Size: 27.2mm
Seat Clamp Size: for 31.8mm ID seat clamp
Tubing: Hydroformed 6061 alloy, Paradigm tubing
Bottom Bracket: BSA, 68mm wide
Head Tube: 4.9" (125mm)
Dropouts: sliding dropout disc system´ for 10 & 15mm axles (includes all hardware)
Brakes: flat mount disc brake only (not compatible with v-brakes)
Weight: 1.73kg (3.80lbs)
Toptube Length: 20.9” (530mm)
Chain Stay Length: 13.9” (353mm)
Rider Area: 532.6mm
Head Tube Angle: 74°
Seat Tube Angle: 71°
BB Height: 11.6" (294.64mm)
Seat Tube Height: 9.1" (231mm)
Wheel Size: 20" (406mm) x 1.75”
Head Tube Size: tapered 1-1/8” - 1.5” for integrated headset
Seat Post Size: 27.2mm
Seat Clamp Size: for 31.8mm ID seat clamp
Tubing: Hydroformed 6061 alloy, Paradigm tubing
Bottom Bracket: BSA, 68mm wide
Head Tube: 4.9" (125mm)
Dropouts: sliding dropout disc system for 10 & 15mm axles (includes all hardware)
Weight: 1.74kg (3.83lbs)
Toptube Length: 21.25” (540mm)
Chain Stay Length: 14.5” (368mm)
Rider Area: 540.7mm
Head Tube Angle: 74°
Seat Tube Angle: 71°
BB Height: 11.6" (294.64mm)
Seat Tube Height: 9.1" (231mm)
Wheel Size: 20" (406mm) x 1.75”
Head Tube Size: tapered 1-1/8” - 1.5” for integrated headset
Seat Post Size: 27.2mm
Seat Clamp Size: for 31.8mm ID seat clamp
Tubing: Hydroformed 6061 alloy, Paradigm tubing
Bottom Bracket: BSA, 68mm wide
Head Tube: 4.9" (125mm)
Dropouts: sliding dropout disc system for 10 & 15mm axles (includes all hardware)
Weight: 1.74kg (3.83lbs)
Toptube Length: 21.75” (552mm)
Chain Stay Length: 14.8” (376mm)
Rider Area: 551.9mm
Head Tube Angle: 74°
Seat Tube Angle: 71°
BB Height: 11.6" (294.64mm)
Seat Tube Height: 9.1" (231mm)
Wheel Size: 20" (406mm) x 1.75”
Head Tube Size: tapered 1-1/8” - 1.5” for integrated headset
Seat Post Size: 27.2mm
Seat Clamp Size: for 31.8mm ID seat clamp
Tubing: Hydroformed 6061 alloy, Paradigm tubing
Bottom Bracket: BSA, 68mm wide
Head Tube: 4.9" (125mm)
Dropouts: sliding dropout disc system for 10 & 15mm axles (includes all hardware)
Toptube Length: 22.25” (565mm)
Chain Stay Length: 14.8” (376mm)
Rider Area: 564.2mm
Head Tube Angle: 74°
Seat Tube Angle: 71°
BB Height: 11.6" (294.64mm)
Seat Tube Height: 9.1" (231mm)
Wheel Size: 20" (406mm) x 1.75”
Head Tube Size: tapered 1-1/8” - 1.5” for integrated headset
Seat Post Size: 27.2mm
Seat Clamp Size: for 31.8mm ID seat clamp
Tubing: Hydroformed 6061 alloy, Paradigm tubing
Bottom Bracket: BSA, 68mm wide
Head Tube: 4.9" (125mm)
Dropouts: sliding dropout disc system for 10 & 15mm axles (includes all hardware)
Weight: 1.77kg (3.90lbs)
Toptube Length: 22.5” (572mm)
Chain Stay Length: 14.8” (386mm)
Rider Area: 570.9mm
Head Tube Angle: 74°
Seat Tube Angle: 71°
BB Height: 11.6" (294.64mm)
Seat Tube Height: 9.1" (231mm)
Wheel Size: 20" (406mm) x 1.75”
Head Tube Size: tapered 1-1/8” - 1.5” for integrated headset
Seat Post Size: 27.2mm
Seat Clamp Size: for 31.8mm ID seat clamp
Tubing: Hydroformed 6061 alloy, Paradigm tubing
Bottom Bracket: BSA, 68mm wide
Head Tube: 4.9" (125mm)
Dropouts: sliding dropout disc system for 10 & 15mm axles (includes all hardware)
Weight: 1.78kg (3.92lbs)
