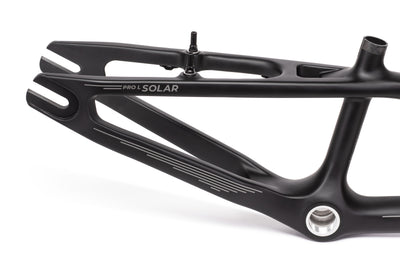

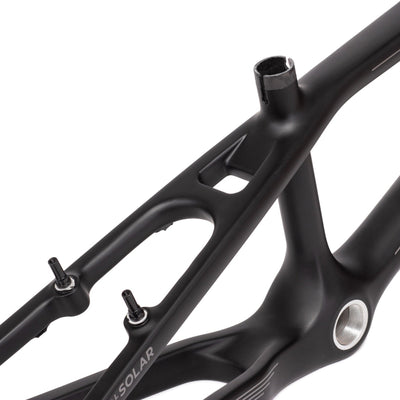

The solar is manufactured from the highest quality torayca carbon and is incredibly unique with its 100% monocoque 1pc construction. By using a mono-construction compared to a 2/3pc construction which most other brands use, we were able to make the frame even stiffer and stronger and create no weak or fatigue points. The solar frame is laboratory tested and proven to be insanely stiff and lightweight especially under high impact and stress tests. The internal cable routing allows for a super clean and stealthy setup. Tested by the Race rRceline team the past x2 seasons and now the frame of choice for many of today’s top riders, we could not be prouder of what we have created with the solar frame.

Material: High performance TORAYCA carbon fiber

Seat Post Size 27.2mm

Seat Tube Length 238mm

Bottom Bracket Type Euro, threaded, BSA 68mm

Bottom Bracket Height 11.6" (EU)

Wheel Size 20" x 1.75"

Dropout Size 15mm

Head Tube Angle 74.5°

Seat Tube Angle 71°

Head Tube Size (full int.) tapered 1-1/8” - 1.5” (120mm)

Extras

• full monocoque technology

• internal cable routing

• laboratory tested for superior strength and
stiffness

Colour:

• Matte Black/Grey
• Matte Black/ Teal
• Galactic Purple


Geometry:

SOLAR PRO L

Top Tube Length (actual) 20.75” (527mm)

Top Tube Length (effective) TBA

Chainstay Length (min.) 14.25” (362mm)

Weight 1.160kg/2.56lbs

Rider Area TBA

SOLAR PRO XL

Top Tube Length (actual) 21.25” (540mm)

Top Tube Length (effective) 22.5” (571mm)

Chainstay Length (min.) 14.5” (368mm)

Weight 1.165kg/2.57lbs

Rider Area TBA

SOLAR PRO XXL

Top Tube Length (actual) 21.75” (553mm)

Top Tube Length (effective) 22.9” (584mm)

Chainstay Length (min.) 14.5” (368mm)

Weight 1.210kg/2.66lbs

Rider Area 540.7mm
