Toptube Length
Color
Regular price €409,99
/
  • Secure payments
  • Low stock - 1 item left
  • Backordered, shipping soon
Tax included. Shipping calculated at checkout.

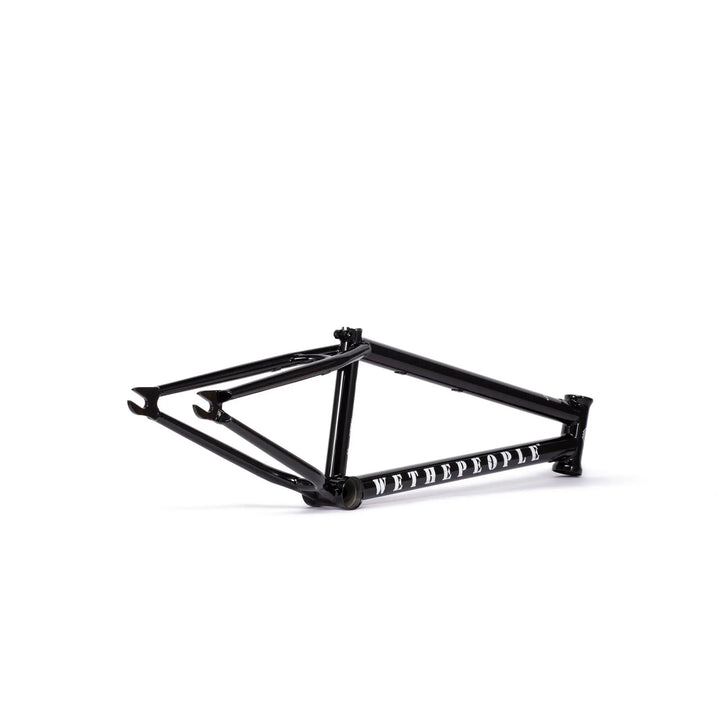

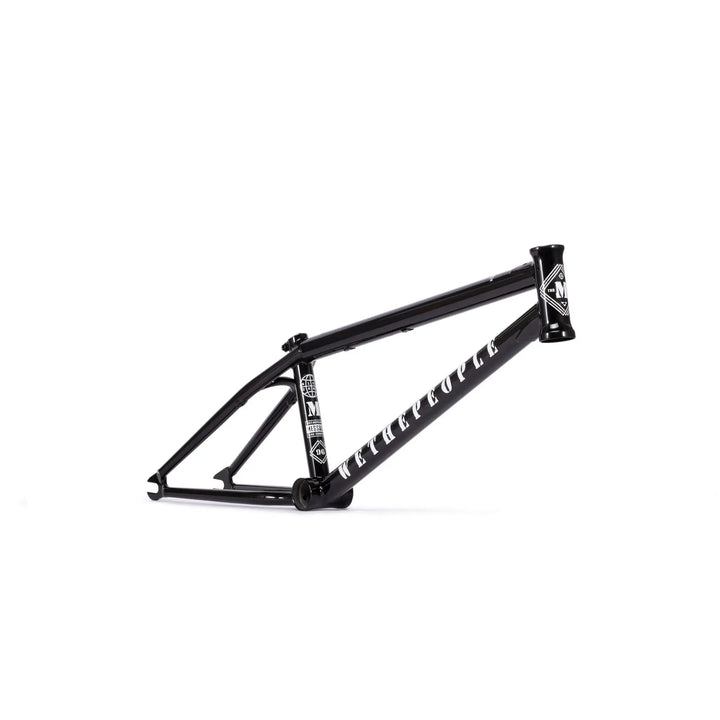

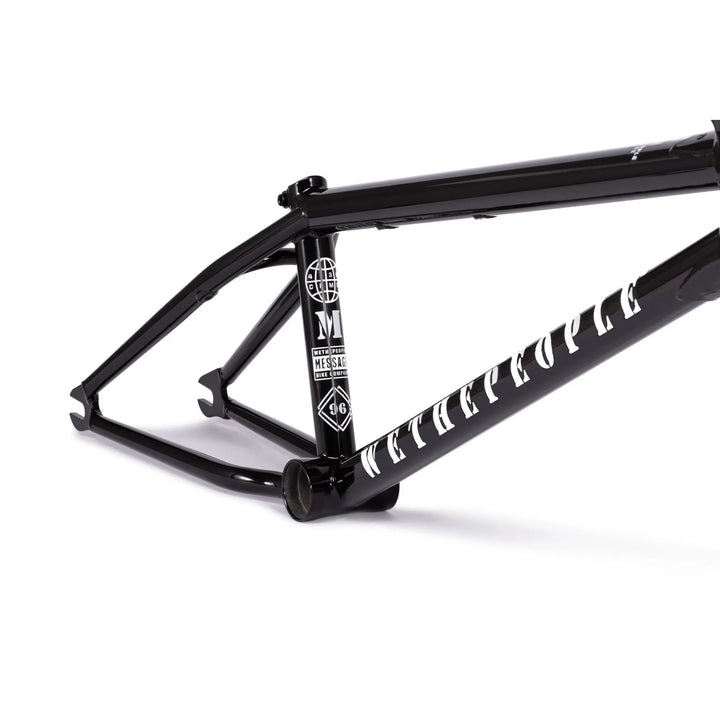

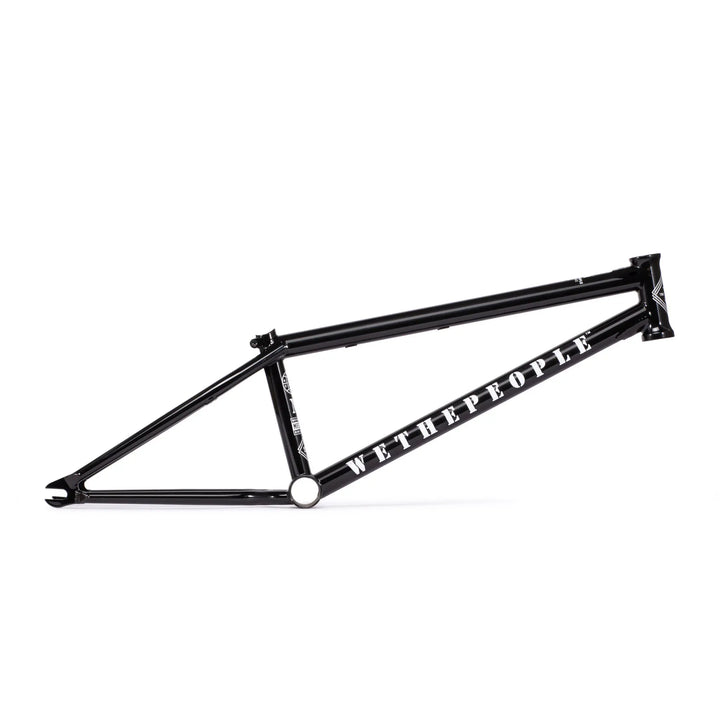

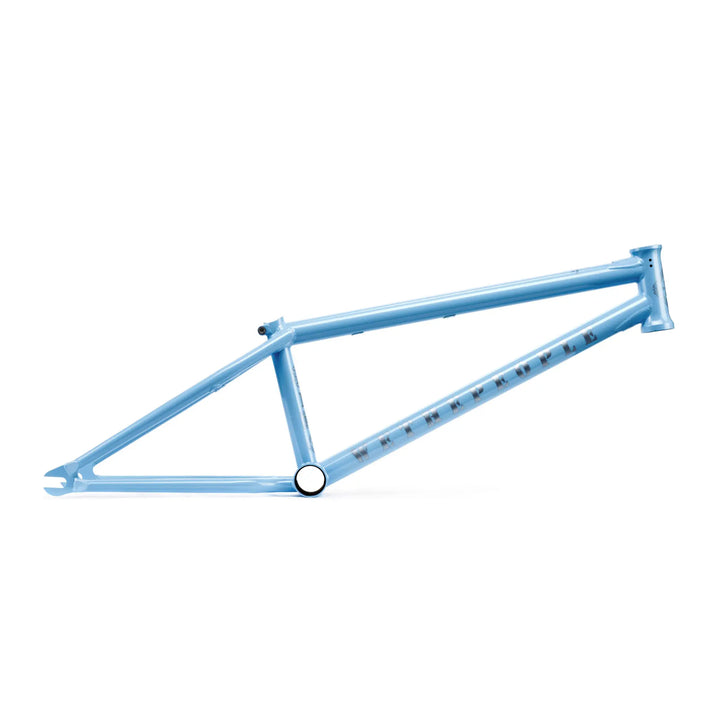

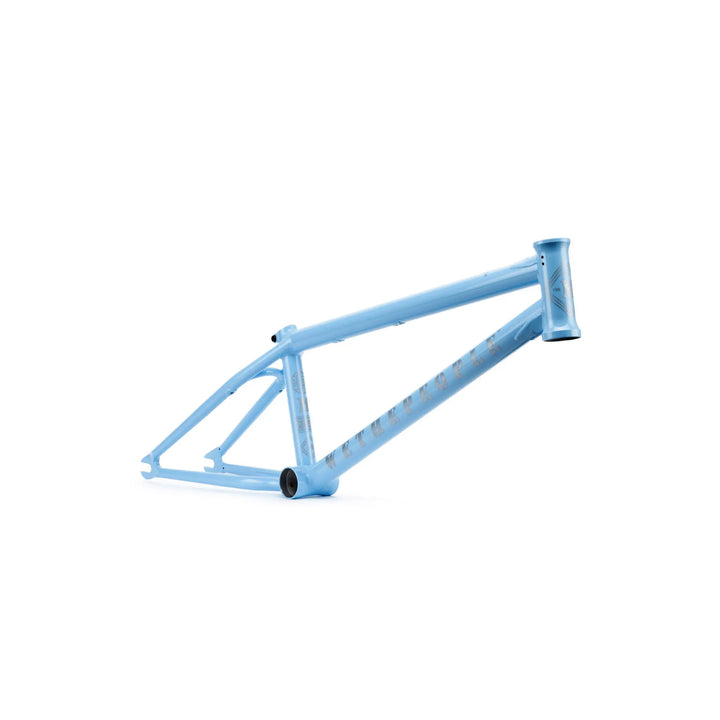

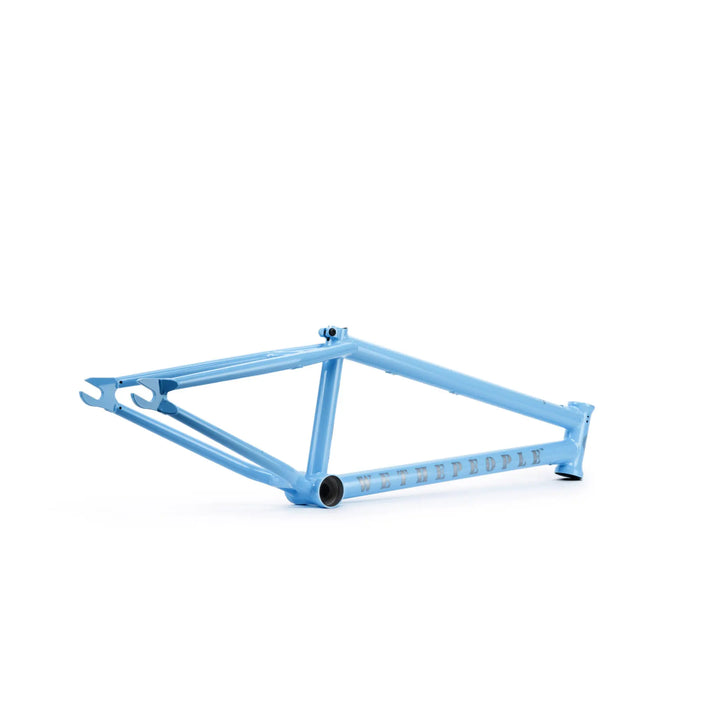

We wanted to grow from our current frame line, and offer a full aftermarket alternative for riders that need a strong, but lightweight technical park setup built to last. The Message frame boasts a lower stand over height, fast geometry and custom dual cable brake hardware making it perfect for the technical ramp rider. Includes lifetime guarantee.

Material: Butted Japanese seamless 4130 crmo tubing

Colour:

  • Black
  • Firestorm red

Features:

  • 74mm mid size bottom bracket cnc machined and heat-treated

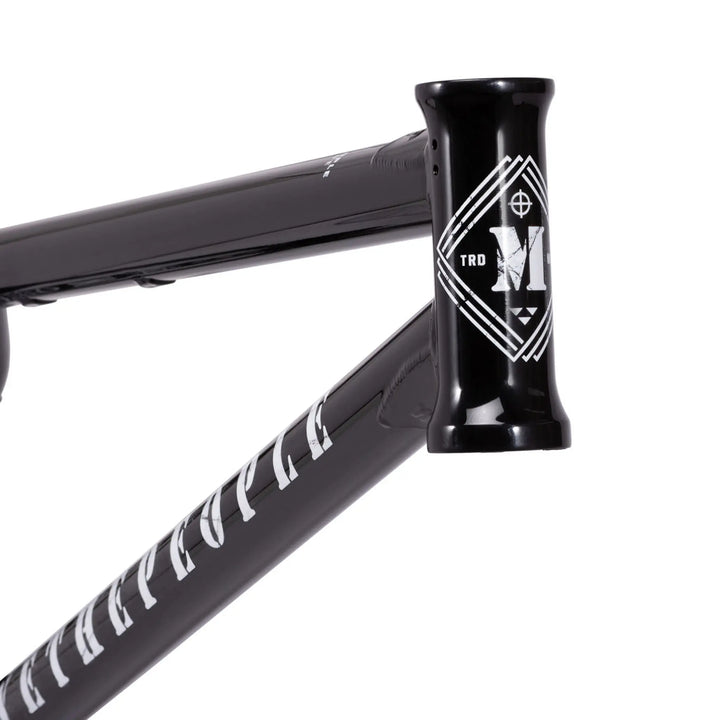

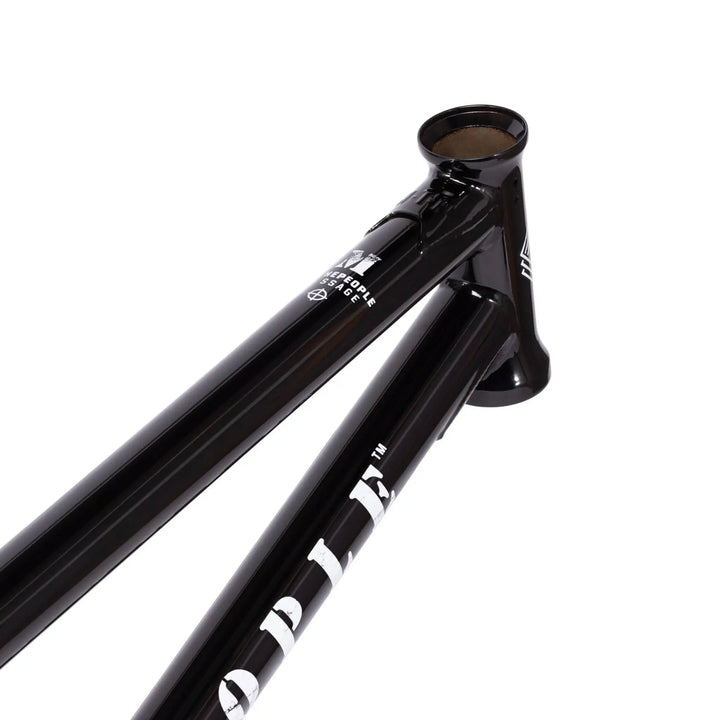

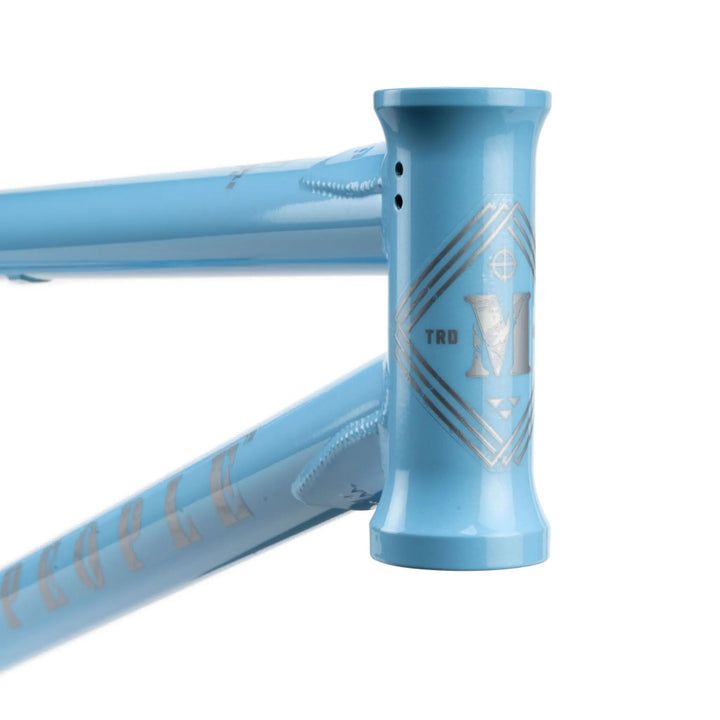

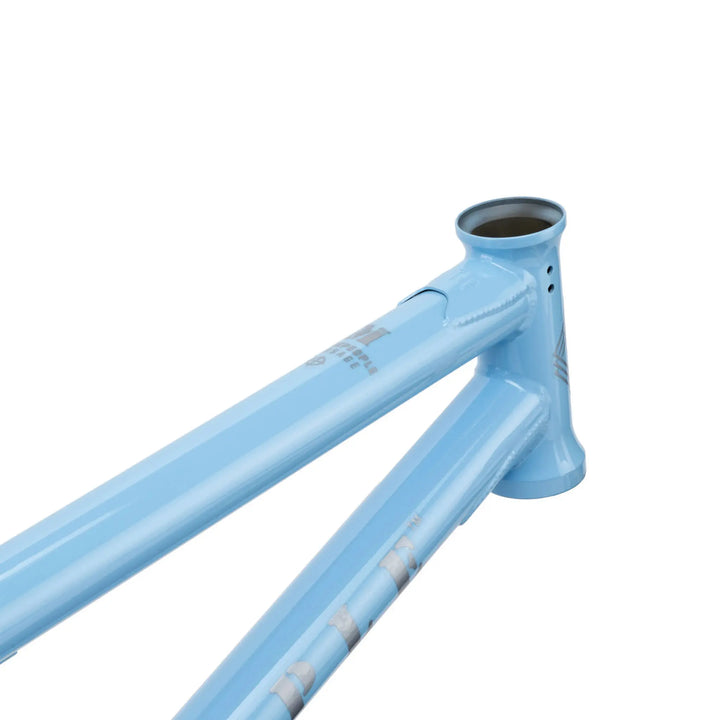

  • 117mm CNC machined and heat-treated headtube
  • Integ. H/set- drilled for gyro tabs

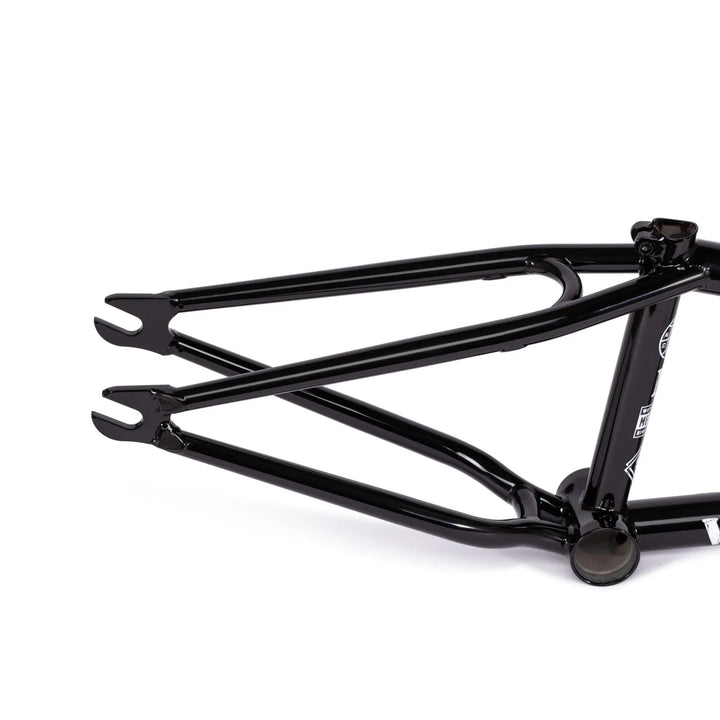

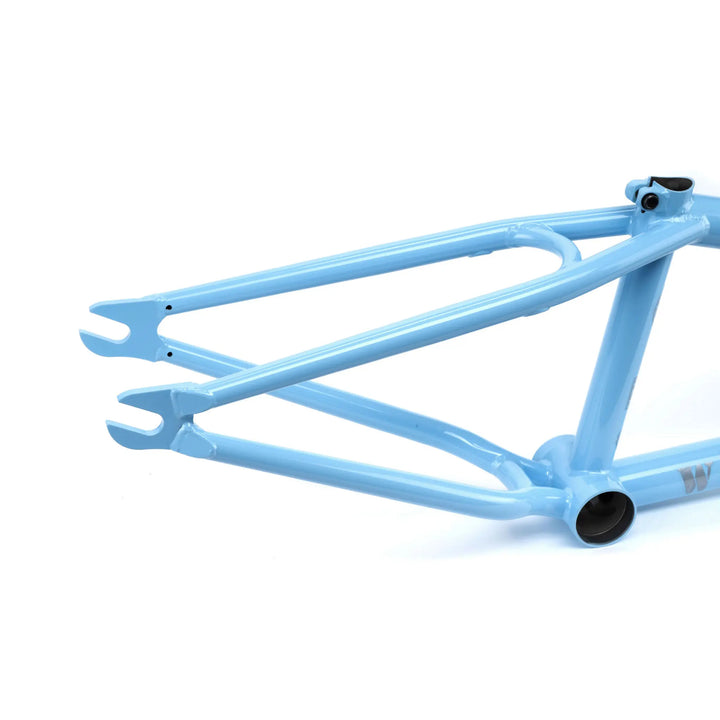

  • 6mm CNC machined and heat-treated dropouts minimal size yet still peg compatible- heat-treated 4130 crmo
  • Pivot-3 removable brake mounts (frame comes without repl. Brake hardware)
  • Park/transition inspired technical frame
  • Extruded top tube with integrated threads for cable guides

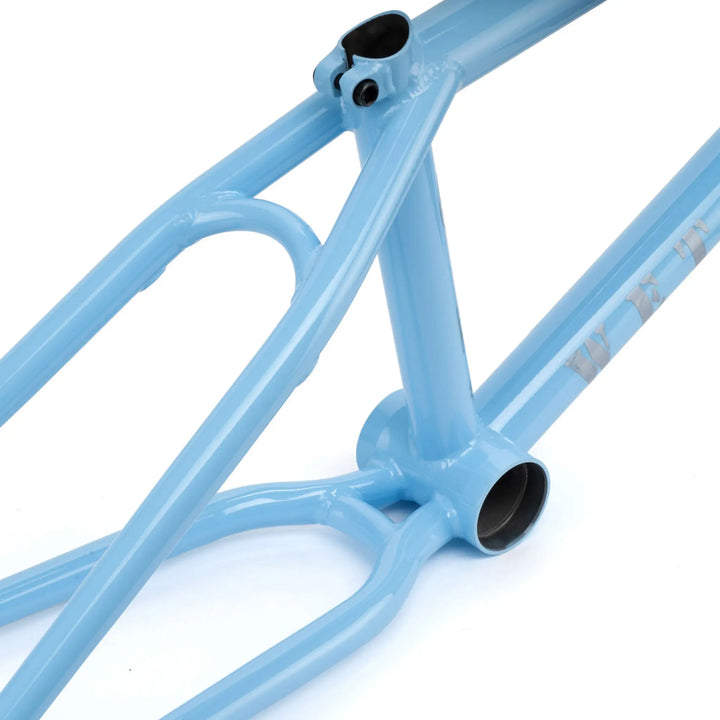

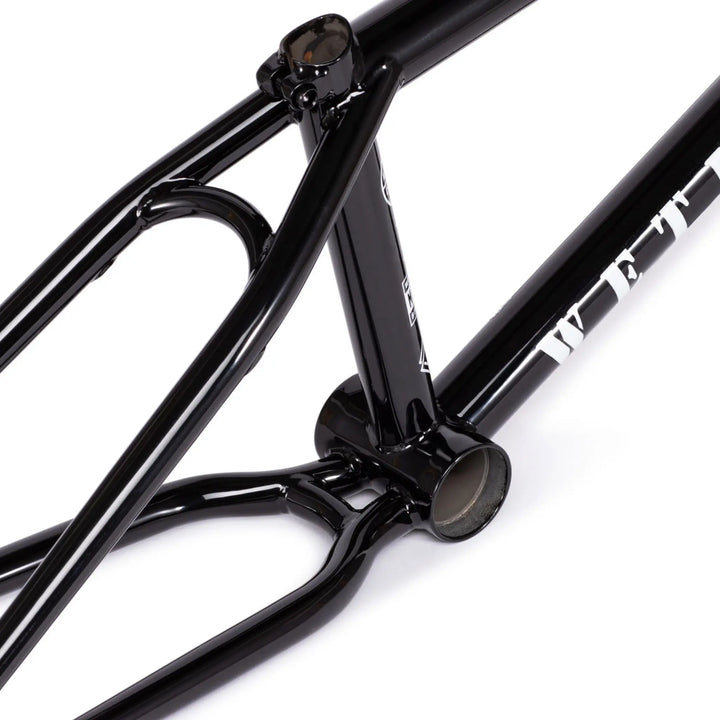

  • Curved seat stay bridge and chain stay bridge
  • Wider rear triangle allows clearance for a 2.4" tire
  • 6mm seat clamp bolt
  • Wtp top tube and down tube gusset
  • Ovalised chain stays for increased tire & sprocket clearance
  • Includes lifetime guarantee

Geometry:

  • Top tube: 20.3"
  • 20.6" or 21''
  • Chain stay length: 12.95" – 13.5" - optimized for 13‘‘/13.25‘‘ w/25-9
  • Head tube angle: 75.5°
  • Seat tube angle: 71°
  • Bb height: 11.5"
  • Standover height: 8"

Weight: 2.4kg (5.32 lbs.) - 21" tt
