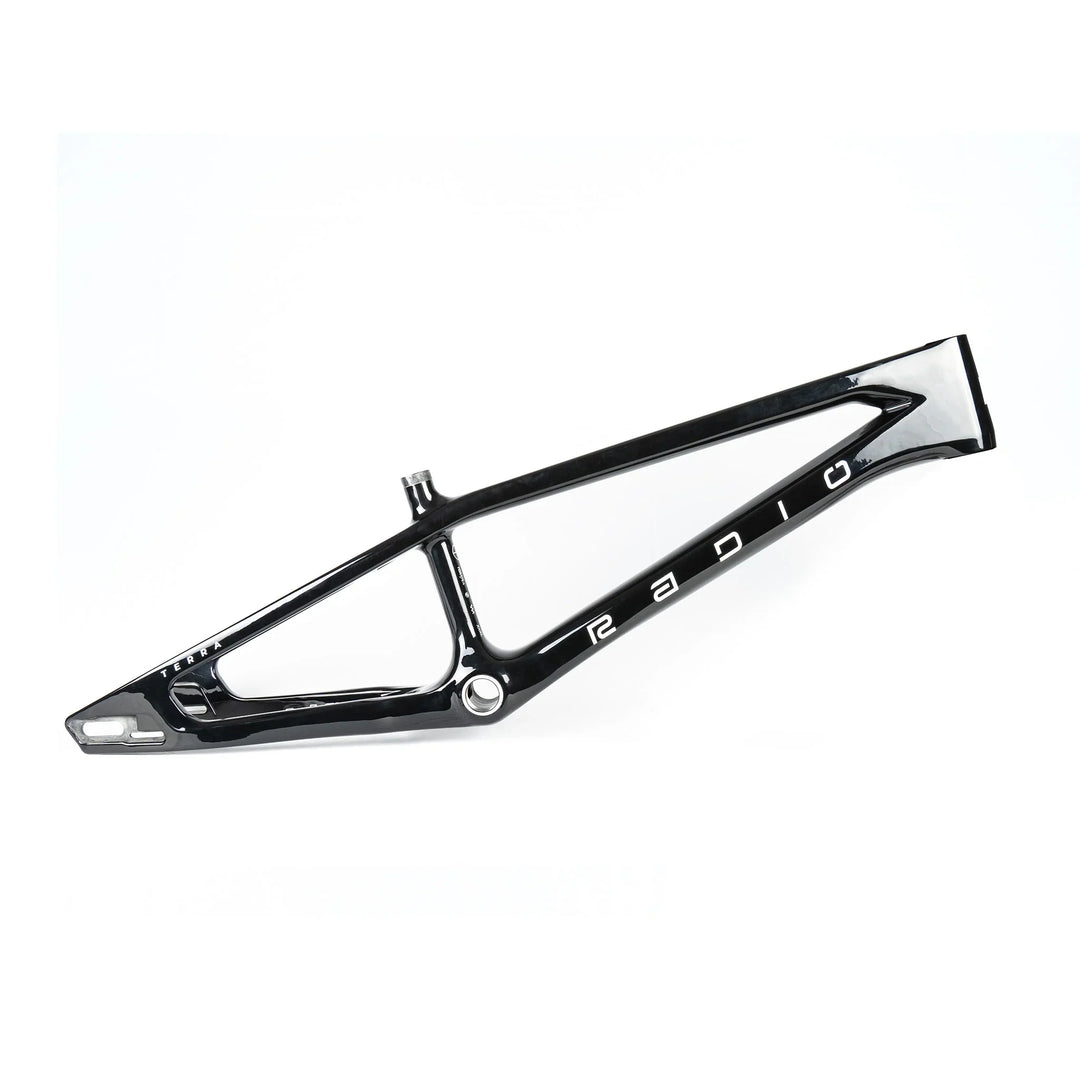

Take your BMX performance to the next level. The Radio Raceline Terra Frame is a lightweight, ultra-stiff Torayca Carbon Fibre frame designed for race-winning speed and precision handling. Built with monocoque construction and the innovative Sliding Disc Dropout System (SDDS), it’s perfect for riders seeking a durable, race-ready BMX frame.

Features & Specifications

• Material: Torayca Carbon Fibre

• Top Tube Length: 21.75" (552.6mm)

• Chain Stay Length: 14.3" (364mm)

• Head Tube Angle: 74.5° | Seat Tube Angle: 71°

• Bottom Bracket Height: 11.6" (294.6mm)

• Wheel Size: 20" x 1.75”

• Brakes: Flat mount disc only (V-brakes not compatible)

• Dropouts: SDDS for 10 & 15mm axles, includes hardware

• Weight: 1.09kg (2.4 lbs) – Pro XXXL

Additional Highlights:

• Full monocoque carbon frame for maximum stiffness

• Internal cable routing for disc brakes

• Compatible with 120mm & 140mm rotors

• Fits up to 2.0” tires

• 30mm dropout adjustment

• Steeper head tube and shorter rear end for snappy, responsive handling
