Name: RADIO GRIFFIN COMPLETE BIKE
Brand: Radio
SKU: 4055822509367
Price: 1149.99 EUR
Availability: InStock

Top tube length

22.6"TT

Color

Cobalt green

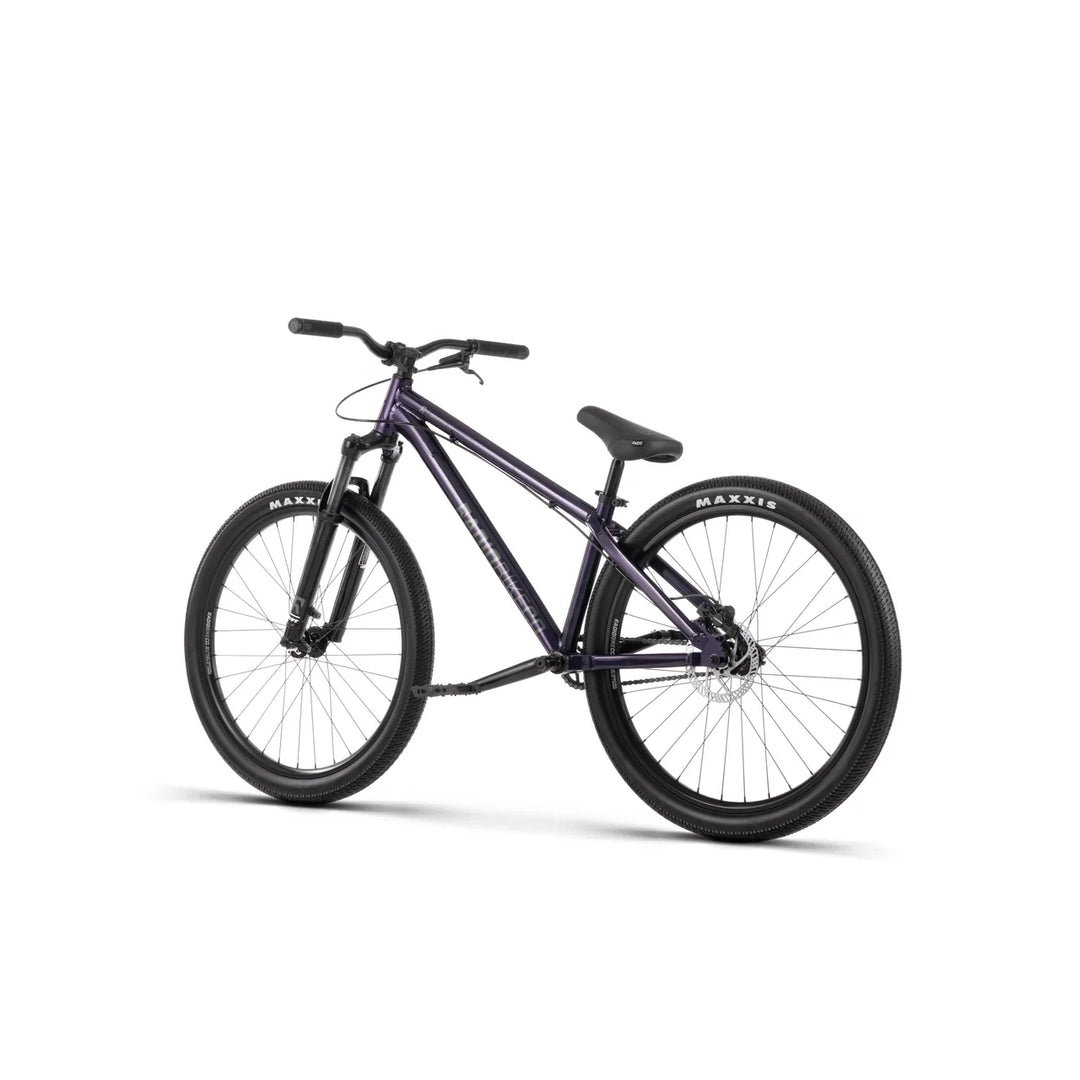

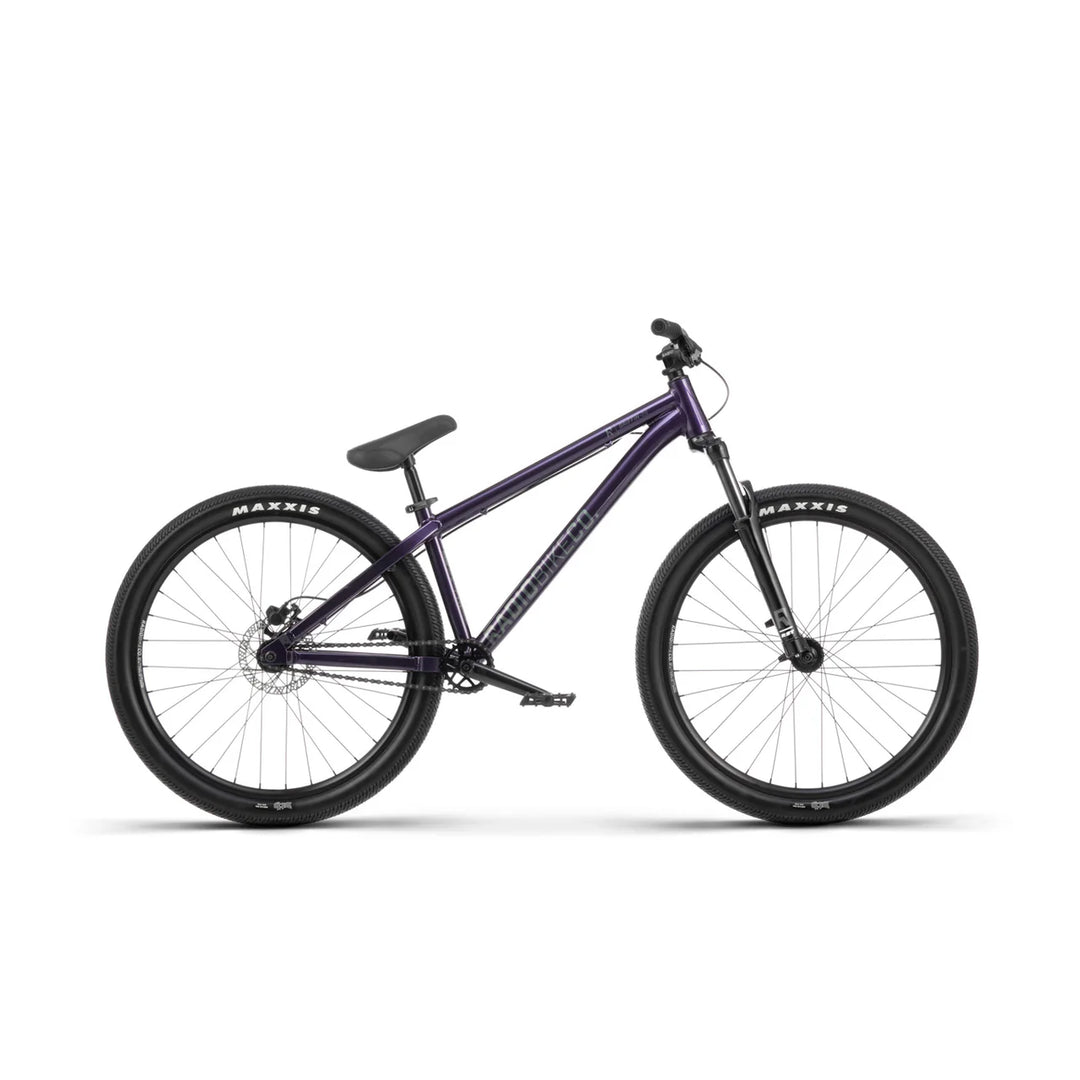

Deep Purple

Wheelsize

26"

Price

Secure payments

Low stock - 3 items left
Backordered, shipping soon

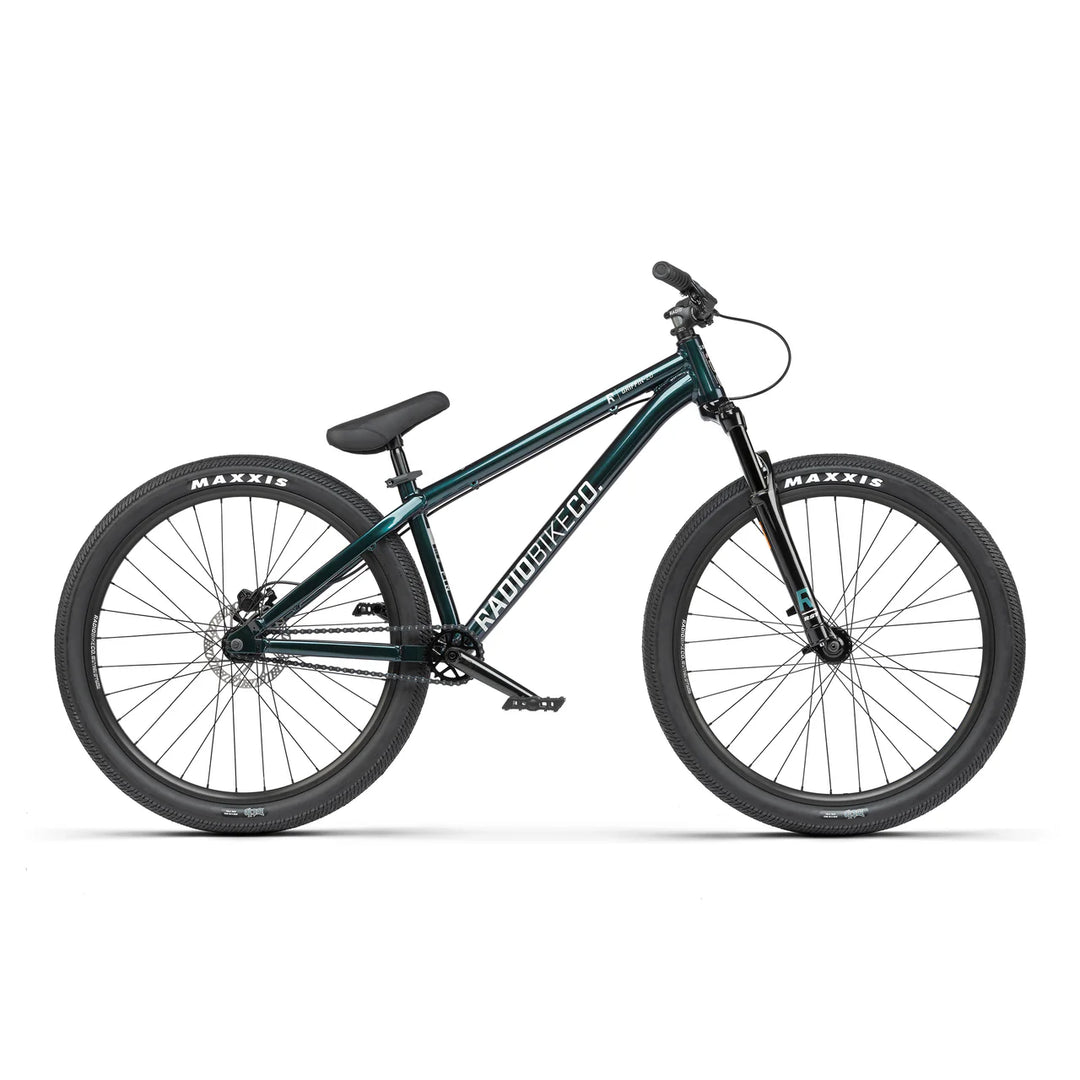

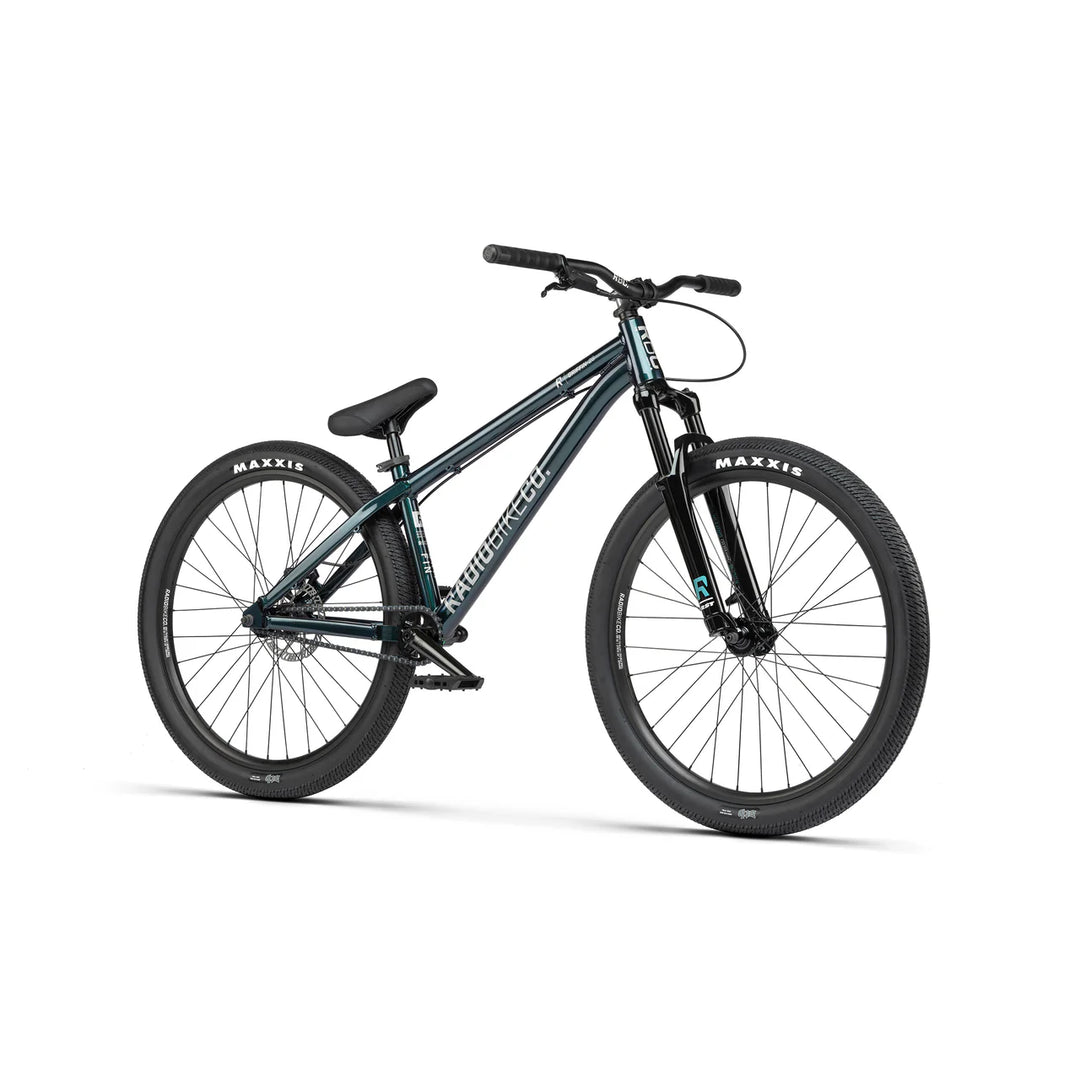

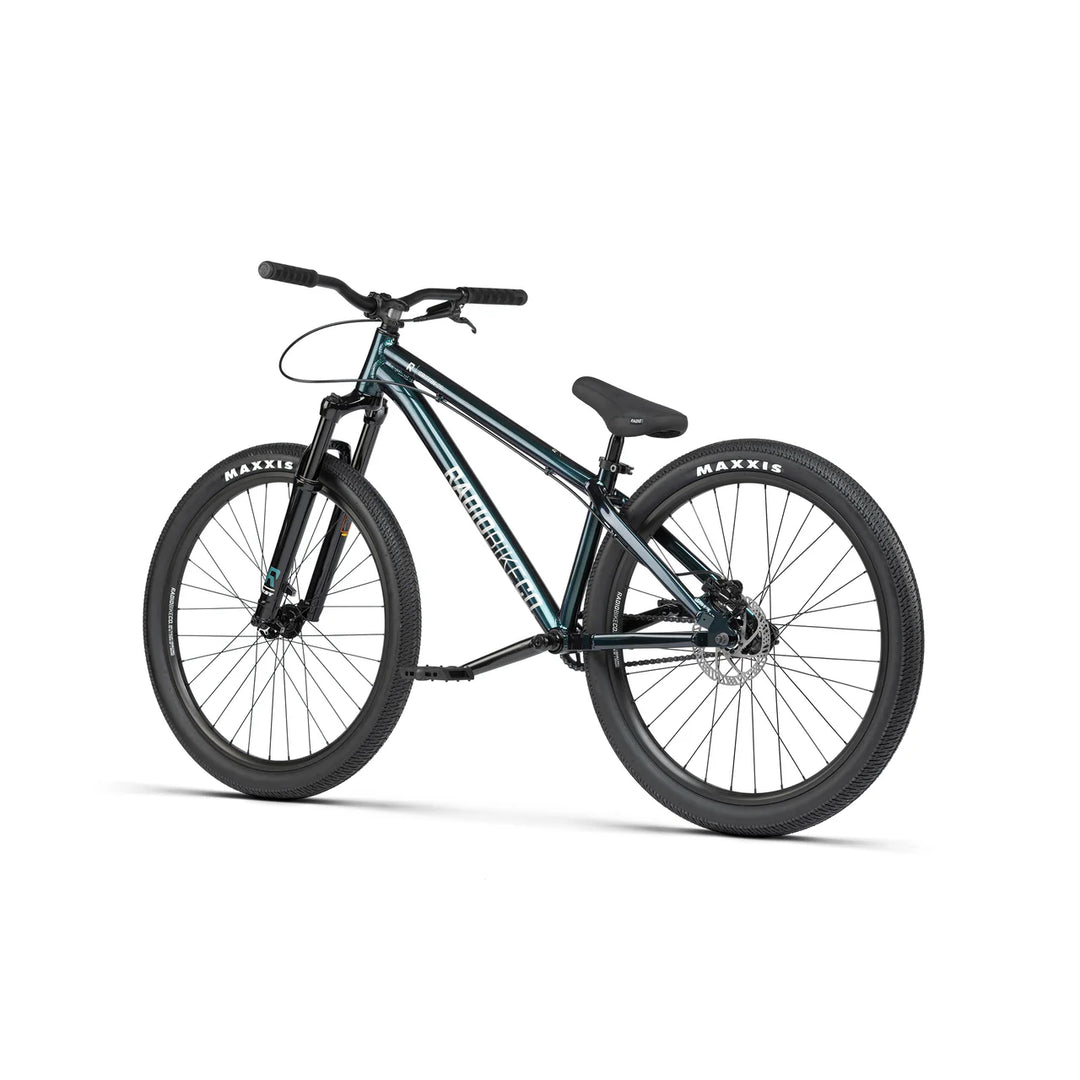

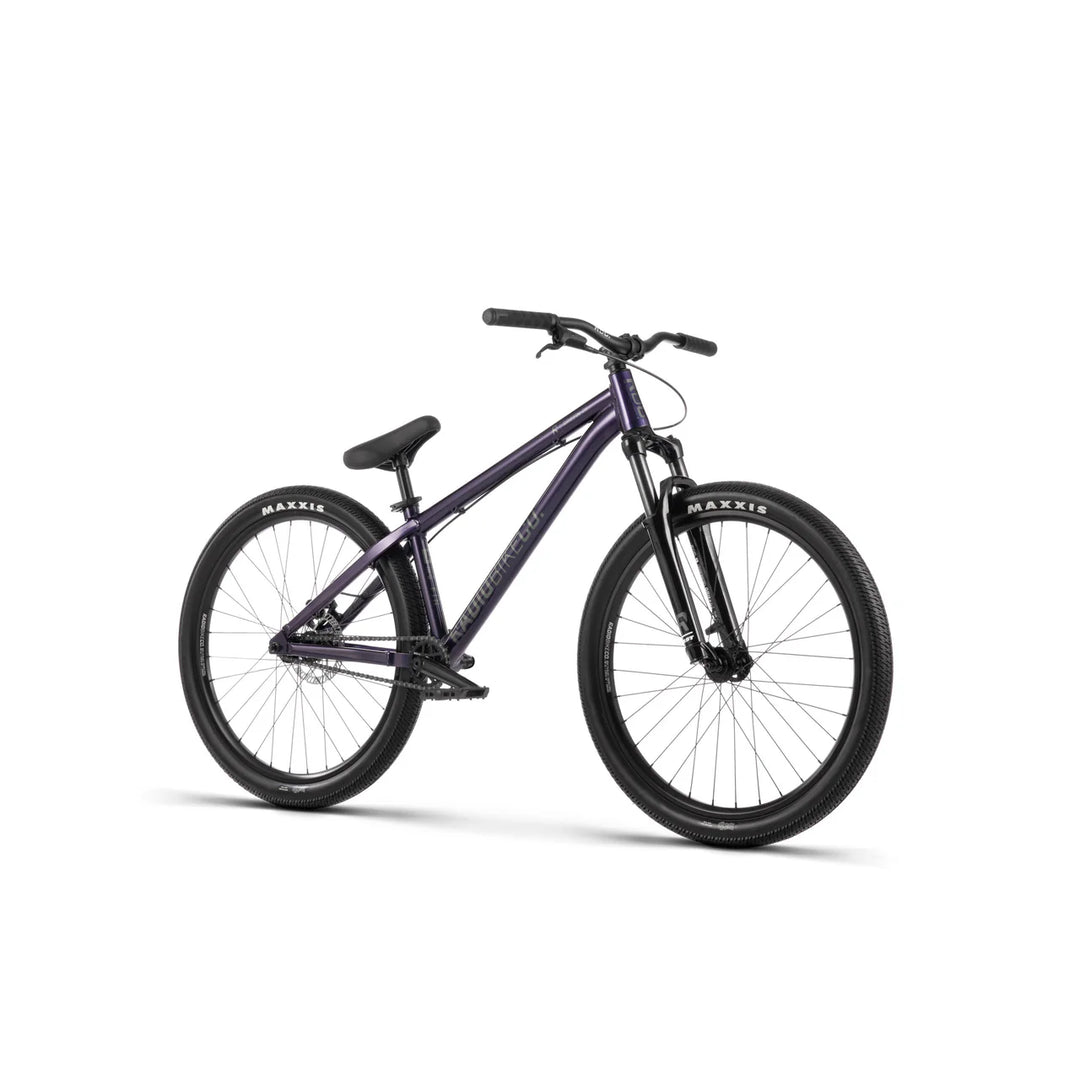

A truly exceptional bike, bettering itself year on year, the Griffin is built on to a competition spec 6061-T6 alloy frame and boasts components from MAXXIS, RST, TEKTRO, RACE FACE and FSA. Now in a 2 mesmerizing paint finishes, our mid-level dirt jump machine is a bike which you guys can't get enough of.

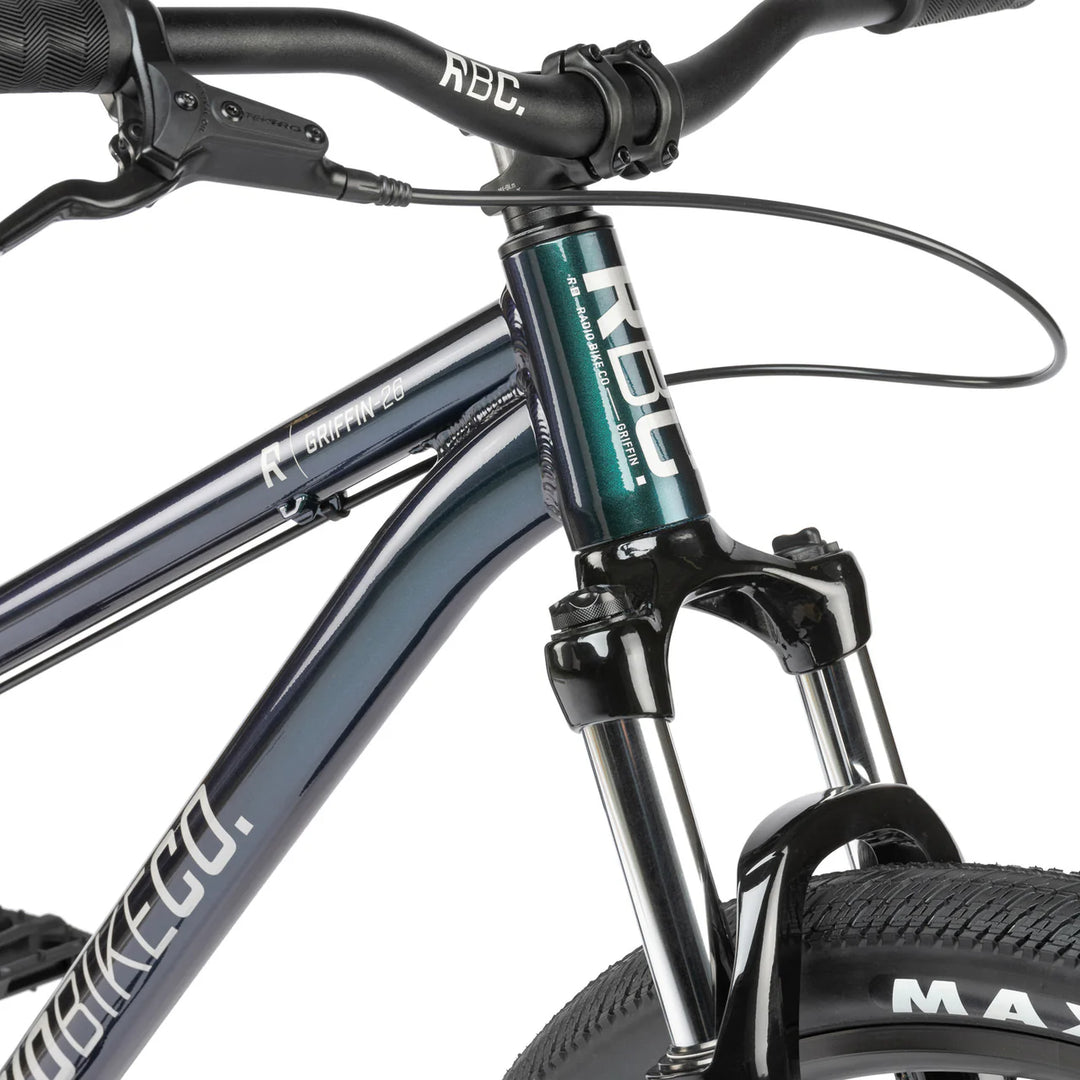

FRAME: RADIO "GRIFFIN" frame, 6061-T6 alloy, tapered head tube, forged yoke

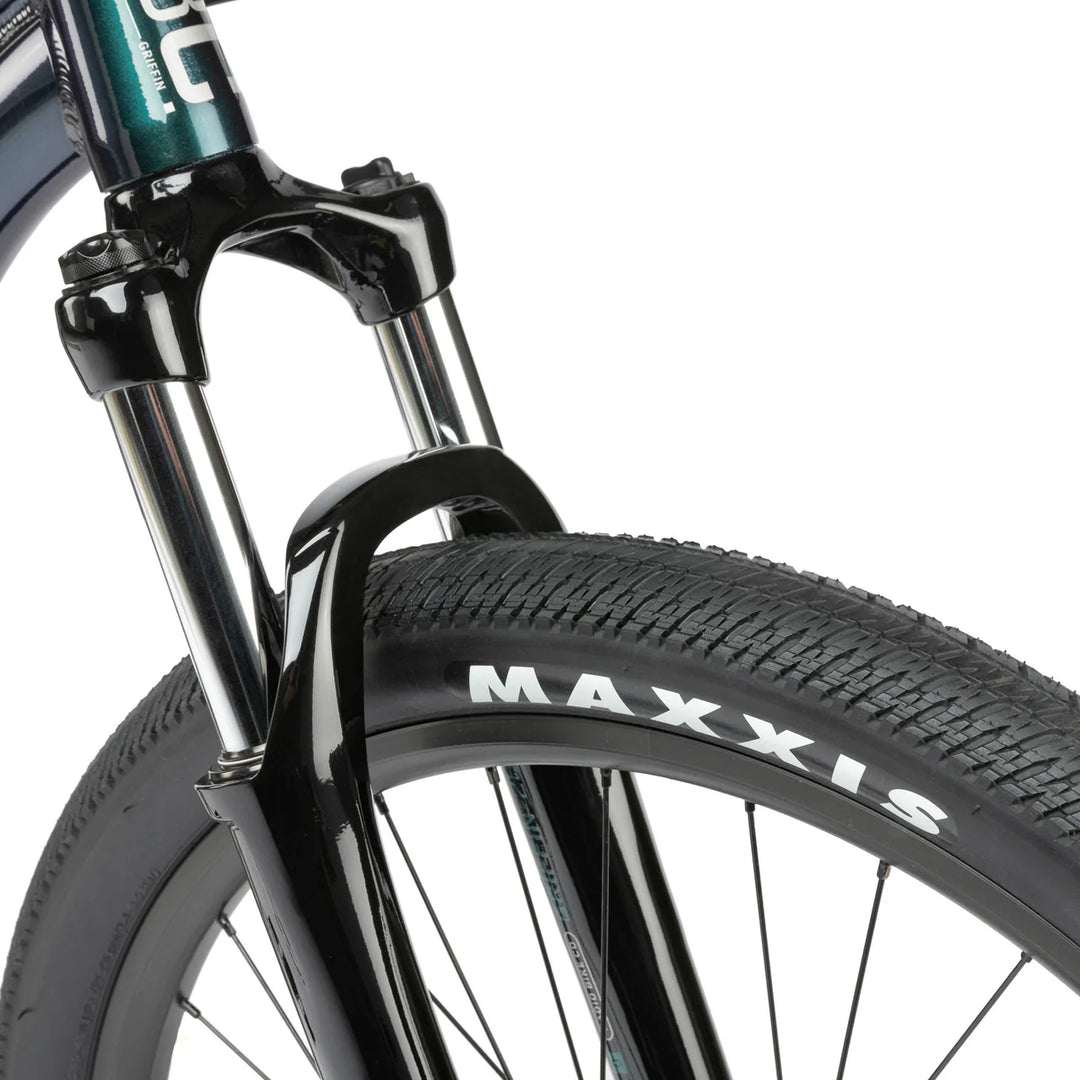

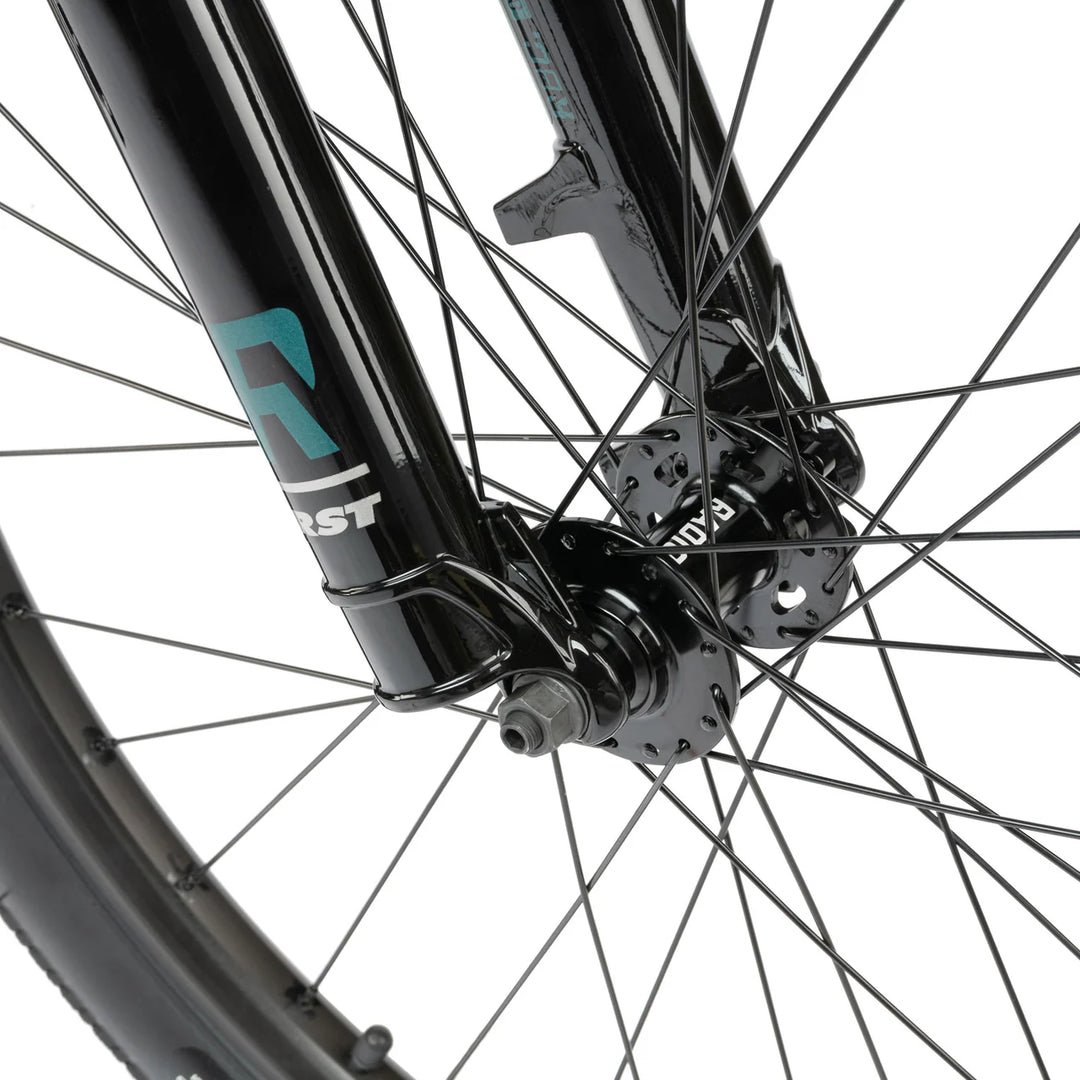

FORK: RST "DIRT RA" fork, 100mm travel

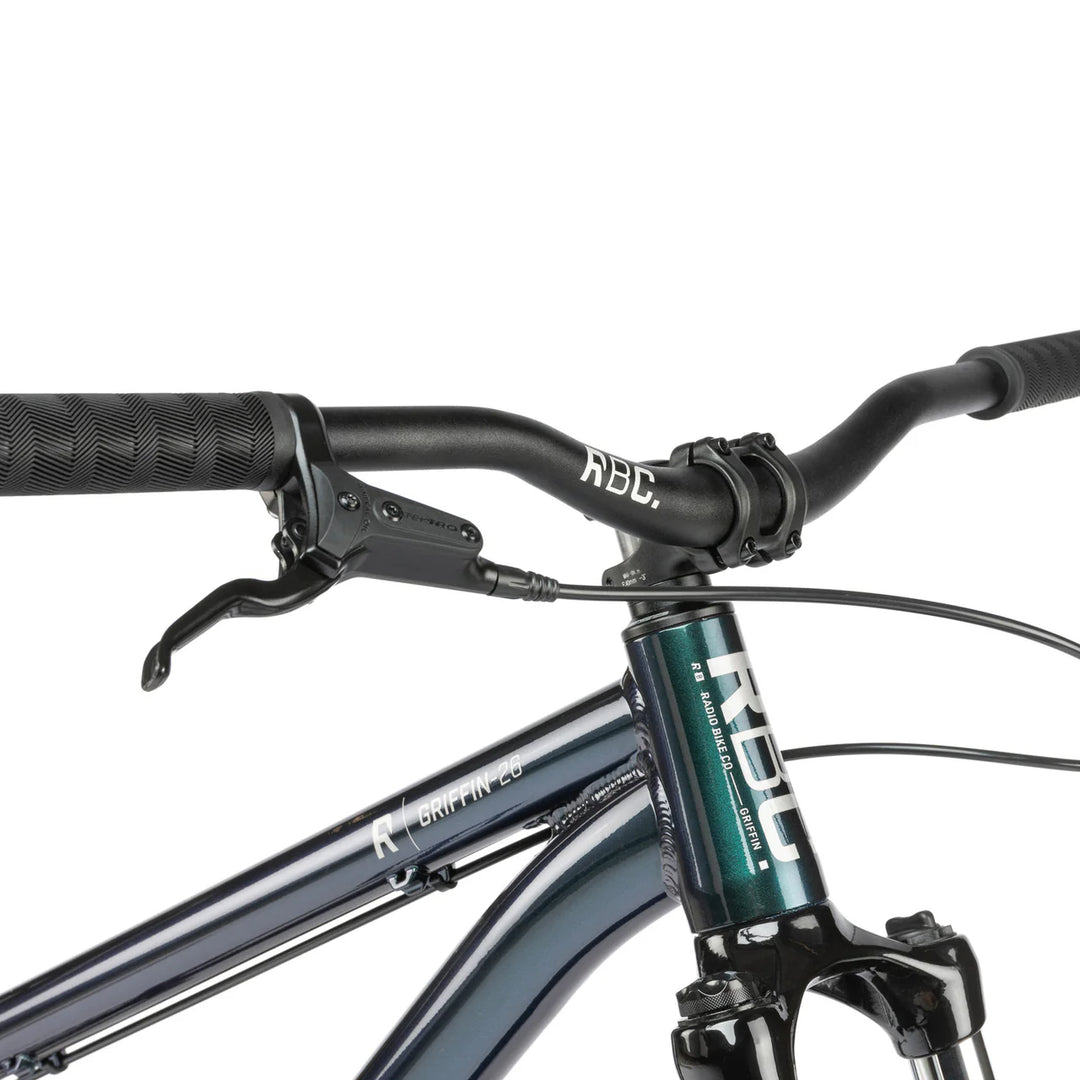

HANDLEBAR: RADIO "ASURA" bar, 6061-T6 alloy, 31.8mm
GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm
STEM: RADIO "ZOOM" frontload stem, alloy, 40mm reach
HEADSET: FSA "NO.42/ACB-A" integrated A-headset, 1-1/8"-1.5"
BRAKE LEVER: TEKTRO "RS-360A" front lever / TEKTRO " HD-M275" rear lever
BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / TEKTRO " HD-M275" hydraulic disc brake, 160mm rotor, rear
CRANK: SALTPLUS "ULTRA" 3pc crank, TSS, crmo, 170mm, 8 spline
BB: RADIO "BSA19" bb set, sealed bearing
PEDALS: RADIO "SLIM" pedals, nylon/fiberglass
CHAIN: SALT "AM" chain, WZ1 type
SPROCKET: SALT "GATEWAY" sprocket, alloy, 25t
DRIVER: cassette driver, 10t, sealed bearing
FRONT HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h
REAR HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h
FRONT RIM: RADIO "DB32" rim, double wall
REAR RIM: RADIO "DB32" rim, double wall
SEAT: RADIO "DJ" combo seat, medium padded
SEAT CLAMP: RADIO "QUICK RELEASE" seat clamp, alloy
TIRES: MAXXIS "DTH" tires, 2.3", front & rear

Weight: 13.01kg / 26.68lbs

Frame Geometry:

Top Tube Length	22.6"
Chain Stay Length	15"
Head Tube Angle	69°
Seat Tube Angle	72°
Bottom Bracket Height	20mm drop
Standover Height	11"

Handlebar Geometry:

Rise	50mm
Width	760mm
Backsweep	8°
Upsweep	3°
