Name: RADIO RACELINE QUARTZ PRO 20" COMPLETE BIKE
Brand: RADIO RACELINE
SKU: 4055822541909
Price: 1849.99 EUR
Availability: InStock

RADIO RACELINE QUARTZ PRO 20" COMPLETE BIKE

Color

Matt Black

Size

XXL

Wheel Size

20"

Price

Secure payments

Low stock - 3 items left
Backordered, shipping soon

The best of the best! The Quartz PRO is our 6-time world championship winning super-lightweight alloy frame with no details spared. We took this frame and draped it in only the very best components creating a full PRO build that anyone would be jealous to own. You’ll find our Solar Carbon fork, Oxygen Tires, Argon Rims, Turbine Hubs and even our new Hydraulic disc brake kit on this masterpiece of a bike. Ready for the track and the podium, we hope you can keep up with the speed that this machine can put out! Now with the all new Quartz Disc frame featuring our new sliding disc dropouts with flat mount brakes and super stealthy cable routing.

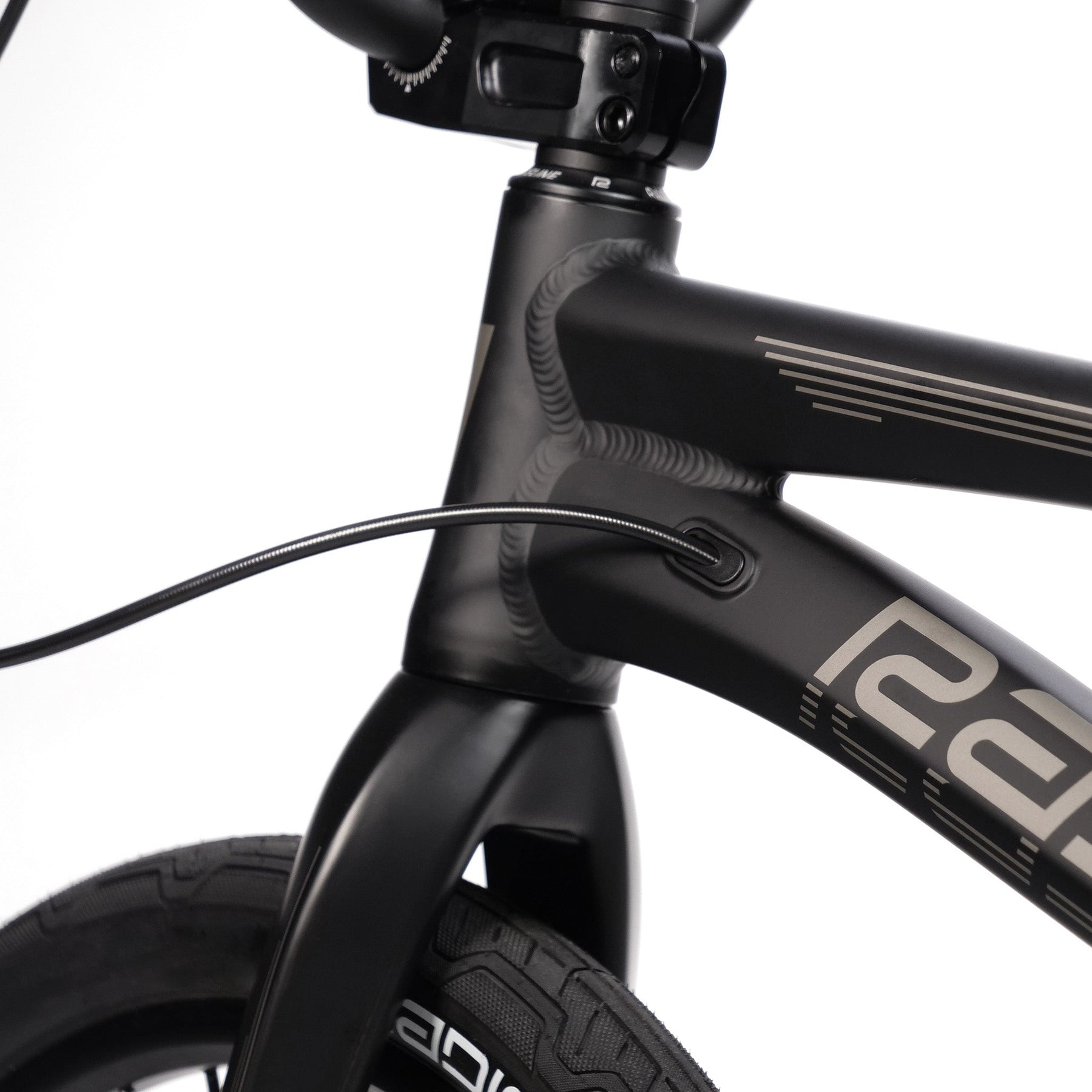

FRAME: RADIO RACELINE "QUARTZ DISC" frame, lightweight hydroformed 6061-T6 alloy, tapered headtube, sliding forged dropouts, with int. chaintensioners, flatmount disc brake
FORK: RADIO RACELINE "SOLAR" carbon fork, 1-1/8" - 1.5" tapered steerer, 32mm offset, inc. 10mm adaptors
HANDLEBAR: RADIO RACELINE "NEON PRO 7.5 / 8 / 8.5" hydroformed bar, multiple butted & heattreated crmo
GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length
STEM: RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5"
BRAKE LEVER: PROMAX "F1" 2 finger lever for hydraulic disc brake rear
BRAKE: PROMAX "F1" hydraulic disc brake, 120mm rotor, rear, flatmount
CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 175mm / 180mm length, 24mm spindle
BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
CHAIN: KMC "Z1eHX" chain, 1/2" x 3/32"
SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 43T / 44T, alloy
DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

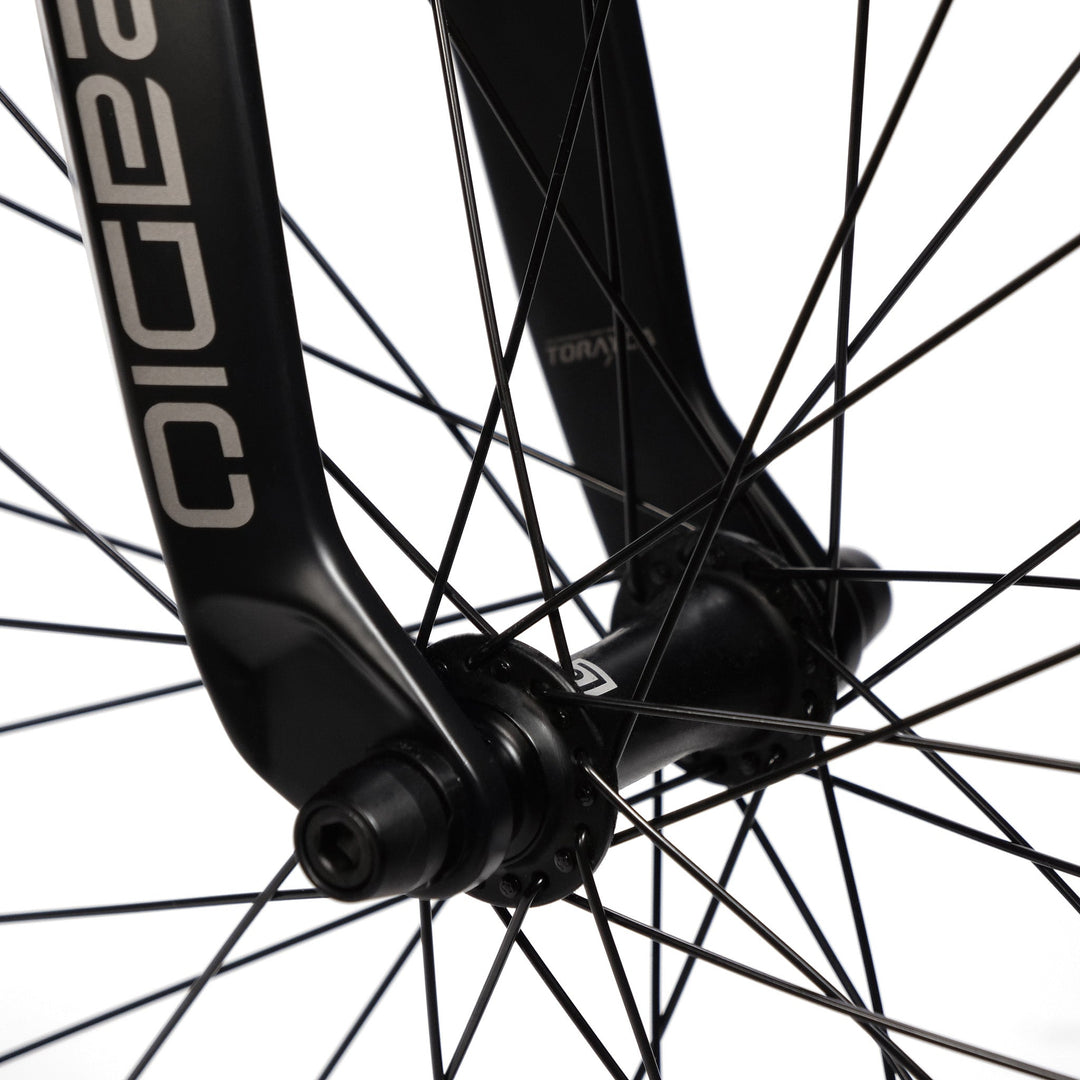

FRONT HUB: RADIO RACELINE "TURBINE" front hub, alloy cnc, fully sealed, 32h / 36h, 3/8" female crmo axle
REAR HUB: RADIO RACELINE "TURBINE" rear hub, alloy cnc, fully sealed, 32h / 36h, disc brake cassette, 3/8" female crmo axle
FRONT RIM: RADIO RACELINE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
REAR RIM: RADIO RACELINE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
SEAT CLAMP: RADIO RACELINE "XENON" seat clamp, quick-release, alloy
TIRES: RADIO RACELINE "OXYGEN" tires, foldable, tubeless ready, front: 20" x 1.95" and rear: 20" x 1.75"

Weight
L: 9.2kg / 20.28lbs
XL: 9.4kg / 20.74lbs
XXL: 9.5kg / 20.9lbs

Frame Geometry:

Top Tube Length	20.9" / 21.25" / 21.75"
Chain Stay Length	14.25" / 14.85" / 15.25"
Head Tube Angle	74°
Seat Tube Angle	71°
Bottom Bracket Height	11.6"

Handlebar Geometry:

Rise	7.5" / 8" / 8.5"
Width	28" / 28.5" / 29"
Backsweep	6.5°
Upsweep	2.5°
