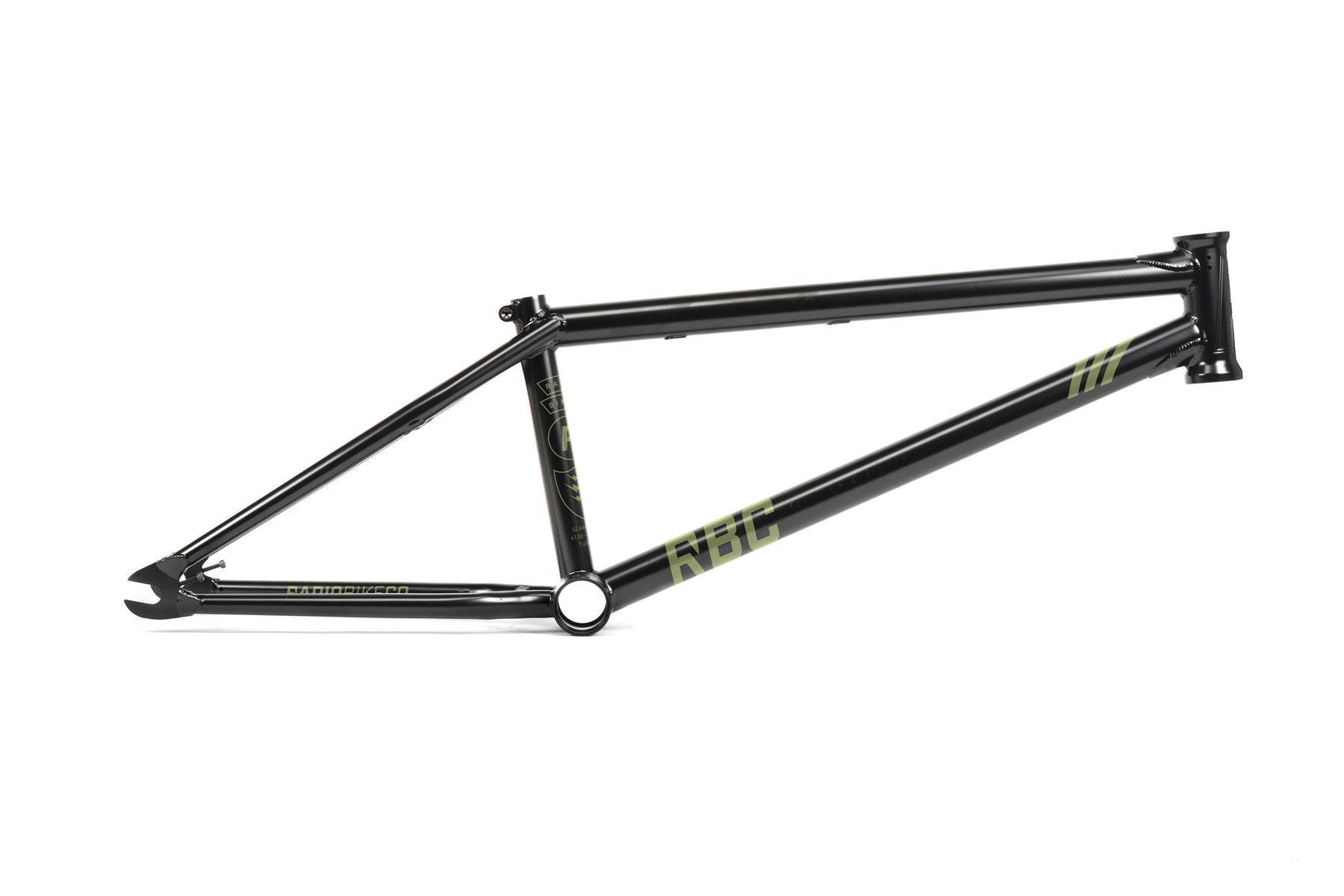

The SQUAD frame features a mix of technical but stable geometry for skatepark, street and dirt riding. The perfect blend of angles, lengths and features to make one perfect DO-IT-ALL frame. The custom cnc machined head tube logo really sets off this well thought out and well designed BMX frame. Using slimmer, lighter weight tubing overall, this is one of the lightest and toughest BMX frames on the market.

INCLUDES LIFETIME GUARANTEE.

•     Tubing: butted seamless 4130 crmo tubing
•     Bottom bracket: 74mm mid size, cnc machined
•     Head tube: 117mm tall, CNC machined and heat-treated, int. h/set, holes for gyro tabs
•     Dropouts: CNC machined 6mm thick and heat treated

Special Features

• all-round park, dirt, street geometry

• tough but lightweight frame

• custom cnc machined head tube logo

• Mid size BB and integrated head tube

• 117mm tall headtube

• removable brake mounts & cable guides and holes for rotor tabs on head tube

• INCLUDES LIFETIME GUARANTEE

Weight: 2.26kg (4.98lbs) - 21"

Geometry

•     Top tube length: 20.6" & 21"
•     Chain stay length: 13" – 13.5"
•     Head tube angle: 75.25°
•     Seat tube angle: 71°
•     BB height: 11.8"
•     Standover height: 8.6"
