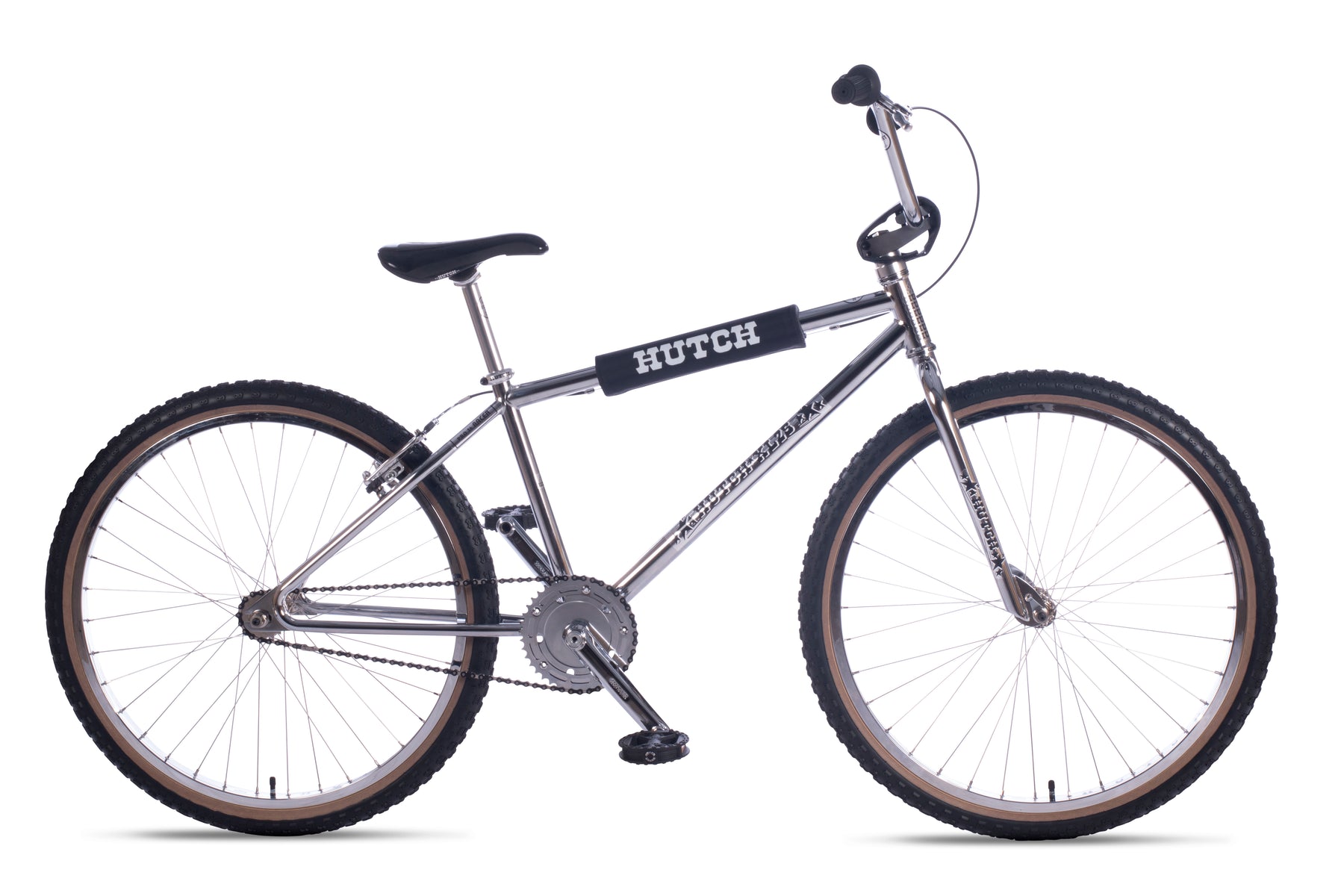

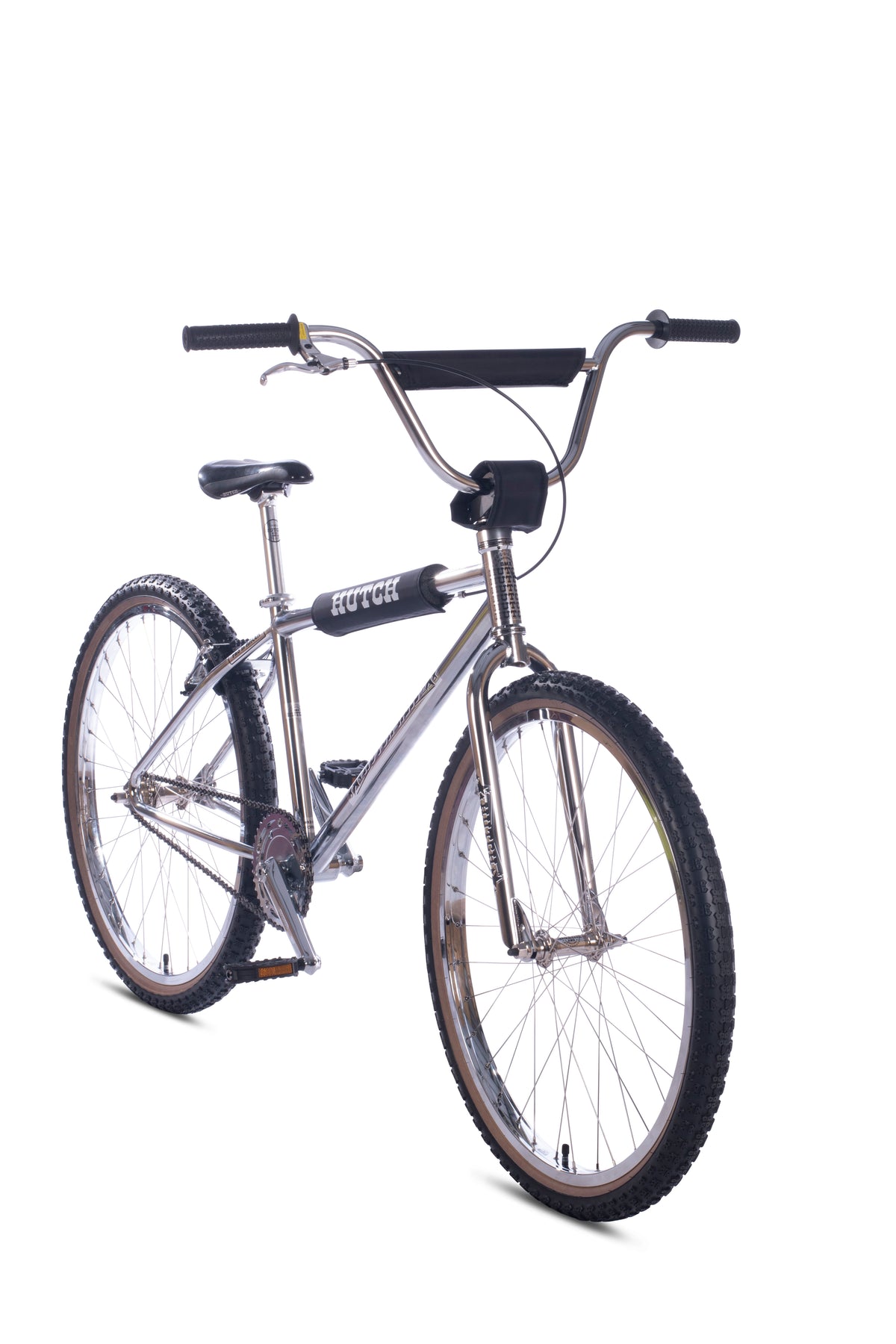

The Hutch XL26 Complete Bike is a chrome-plated bike available in 26” wheels. Designed with custom-made parts inspired by its 1980s original, it offers authentic quality and craftsmanship. This bike stands out as a top choice for those seeking a true retro-style complete.

Frame: Hutch XL26

·      4130 chromoly

·      Heat-treated HT, BB, and dropouts for added strength.

·      Butted DT and TT for added strength and reduced weight.

·      1-1/8” Integrated BMX headtube

·      Mid BB

·      V-brake mounts

·      3/8" dropouts

·      22.2” TT

·      17.7” chainstay

·      12” BB height

·      26” standover height

·      71 degree HT angle

·      73 degree seat mast

·      40T max front gear size while maintaining proper chain alignment



Fork: Hutch 26"

·      4130 chromoly

·      Heat treated dropouts

·      Tapered and butted fork legs for added strength and reduced weight

·      1-1/8” threadless steer tube 170mm length

·      3/8” dropouts

·      M25 x 1.5 internal threads



Handlebars: Hutch Expert Race

·      4130 chromoly

·      Heat treated

·      11 butted

·      29.5” wide x 7.7” rise

·      Knurled clamp area

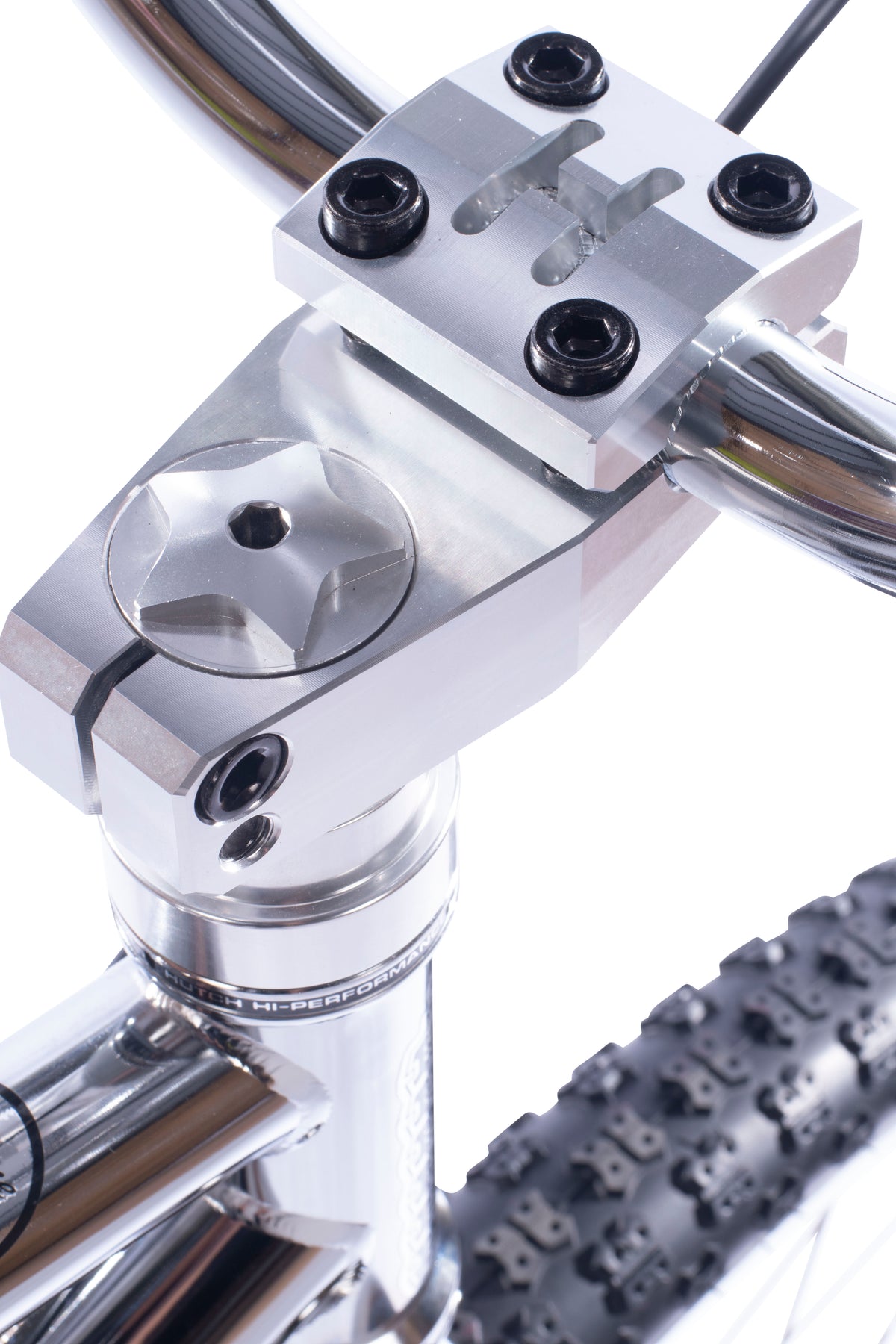

Stem: Hutch Thru-H

·      CNC machined 6061 billet aluminum

·      1-1/8” threadless

·      53mm reach

·      Polished finish



Compression Bolt: Hutch Star

·      CNC machined 6061 billet aluminum

·      M25 x 1.5 threads

·      Polished finish



Headset: Hutch

·      1-1/8” integrated BMX

·      CNC machined 6061 billet aluminum cap in the shape and style of the original Hutch 2n1.

·      1” rise

·      Sealed bearings

·      Polished finish



Crank Arms: Hutch Aerospeed

·      4130 chromoly

·      Heat-treated for extra strength

·      175mm length

·      6 degree rake angle will clear chainstays of most frames of any size.

·      48-spline industry-compatible

·      9/16” pedal thread

·      Hyperbaric-welded for incredible strength, perhaps the strongest chromoly crank arms ever made in the history of BMX. Machine tested for simulated-rider conditions of 407 lbs. at 400,000 cycles without breaking arms or spindle. Also lighter weight than leading competitor’s swagged-tube crank. Classic Aerospeed 6-sided, double-taper, full boss-wrap design sets the new bar very high for BMX cranks.

·

Pedals: Hutch by Wellgo

·      1-piece nylon with sealed bearings

·      9/16” BORON axles

·      The nylon Hutch pedal is the perfect pedal for today’s flatland riders. Round shape means no corners to catch yet still provides plenty of shoe surface area.

·      Sealed bearings for smooth spin.



Spindle: chromoly

·      48-spline

·      19mm

·      145mm length

·      Bottom Bracket: Mid

·      ISK brown sealed bearings



Chain Ring: Hutch

·      40T

·      CNC machined 6061 billet aluminum

·      Hutch Aerospeed Disc

·      Chrome Plated finish



Driver: 17T



Chain: PYC S410

·      1/2" x 1/8"

·      Black and Silver links

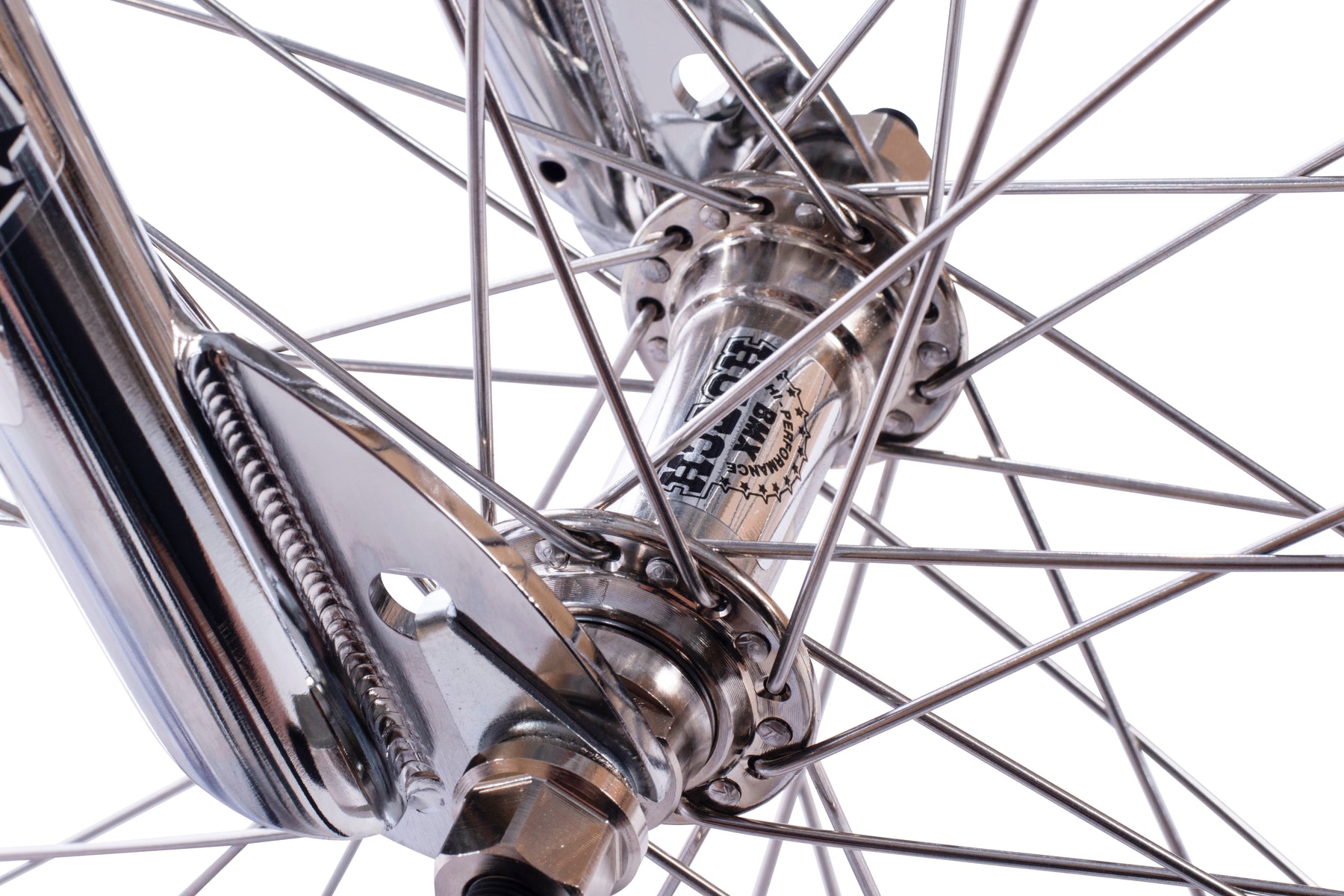

Hubs: Hutch mag/ti

·      CNC machined 6061 aluminum

·      36H front and rear

·      Sealed bearings

·      Nickel-plated finish for similar appearance to the original Hutch mag/ti hubs

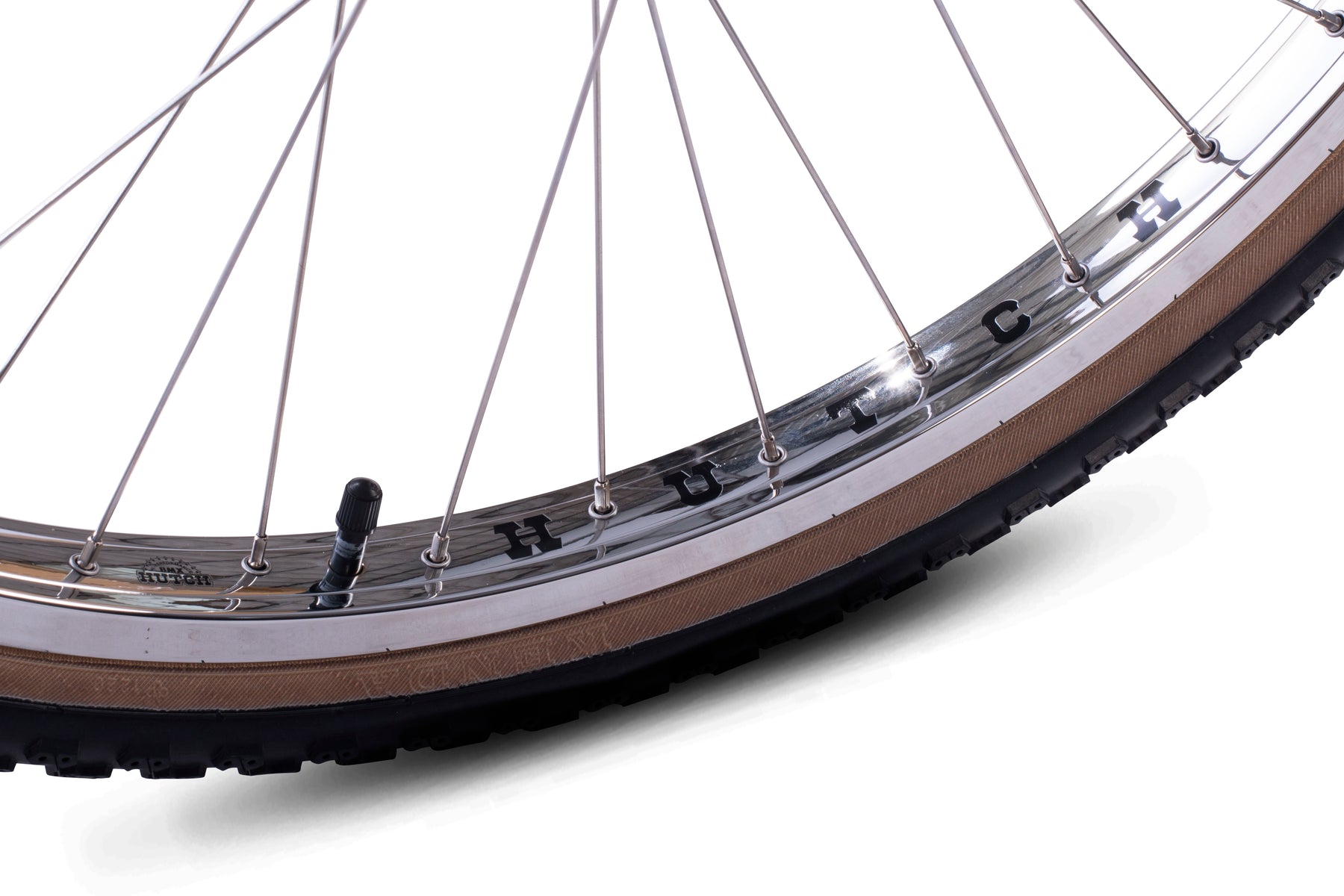

Rims: Hutch x7x

·      A modern update to the original, the Hutch x7x is a double-wall rim with steel eyelets in similar shape and style to the beloved 7x from the 1980’s.

·      26” wheel size

·      36 holes front and rear

·      Welded joint

·      Chrome-plated finish



Tires: Kenda Comp III

·      26” x 2.2” size

·      45-60 psi

·      Skinwall sidewall

·      Black tread



Seat: Hutch by Velo

·      Pivotal

·      Padded cushion with Kevlar bumper

·      Black-on-black design to emulate original 80’s Hutch plastic seat design



Seat Post: Hutch Stealth II

·      Pivotal

·      25.4mm (1”) size

·      300mm length

·      polished aluminum



Seat Clamp: Hutch Donut

·      CNC machined 6061 billet aluminum

·      28.6mm (1-1/8”)

·      Polished finish



Brakes: Dia-Compe MX-2

·      V-Brake

·      Cold Forged Alloy Arms



Levers: Dia-Compe MX-2



Grips: Hutch Super Star

·      Super Star grips are a throwback to the original B-2 design with added Hutch stars. The project was developed under the code name “B-4” (before) as a double-play on words and meaning.

·      35 durometer ultra-soft rubber compound

·      Black color

·      135mm length



3-Piece Pad Set

·      Black with white lettering
