Color
Regular price €369,99
/
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included. Shipping calculated at checkout.

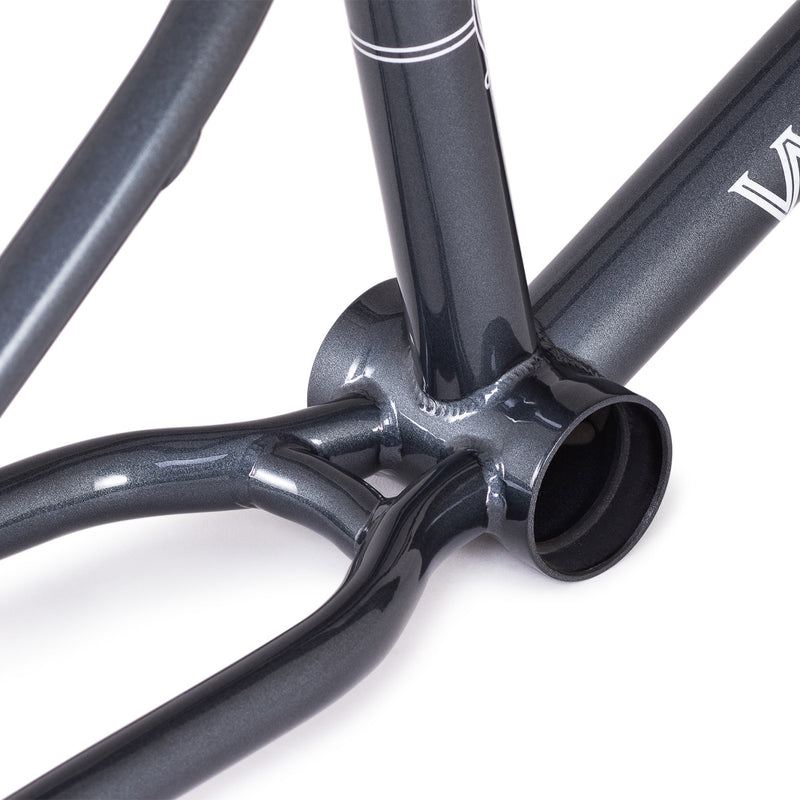

The Envy XLT frame is a lightweight high-performance take on a modern-day frame, the envy has been carefully lightened up in all non-critical areas to remove more than 650g.

Designed to shred it on all-terrain, the Envy XLT utilizes the very best material and manufacturing methods to make an absolutely bombproof frame, which weighs much less than you’d think.

  • Tubing: butted, japanese seamless 4130 crmo tubing
  • Bottom bracket: 74mm mid size, cnc machined and heat-treated
  • Head tube: 120mm cnc machined and heat-treated, integ. H/set, drilled for gyro tabs
  • Dropouts: 6mm investment cast, heat-treated 4130 crmo
  • Brakes: pivot-3 removable brake mounts, frame comes without repl. Brake hardware

Special Features

  • technical modern frame designed with reducing weight whilst retaining high strength
  • hydroformed top and down tube for superior strength and stiffness
  • larger 1.8mm welding at headtube
  • wider rear triangle allows clearance for a 2.4" tire
  • ovalized chainstays for increased tire & sprocket clearance
  • cnc seat stay bridge
  • tapered and butted tubing to reduce weight
  • 6mm seat clamp bolt
  • includes lifetime guarantee

Weight: 4.8lbs / 2.11kg (21")

Geometry:

  • Top tube length: 20.5", 20.75", 21" or 21.25"
  • Chain stay length: 12.55" – 13.35" - optimized For 12.75" w/25-9
  • Head tube angle: 75.25°
  • Seat tube angle: 71.5°
  • BB height: 11.7"
  • Standover height: 8.75"
